Chiller Controller with Customized Dual Display PiC-190

Chiller Controller with Customized Dual Display PiC-190

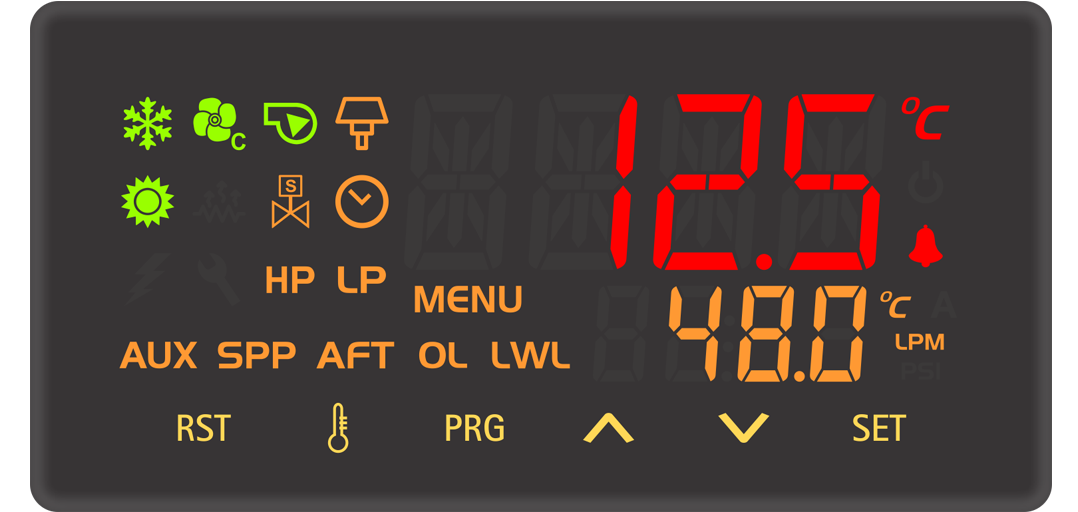

  • Dual display with red LED (8.6mm high) and amber LED and 13 icons for instant visibility of machine status.

  • HP, LP, AUX/WFS, SPP fault trip protection for Compressor.

  • Overload trip protection for Compressor, Pump & Fan.

  • Serial communication through RS485.

  • Provision for Hot Gas Solenoid Valve.

Chiller Controller with Customized Dual Display PiC-190

Chiller Controller with Customized Dual Display PiC-190

Displays 7 Segment Display 4 X 16.5mm (.0.40”) (Red) 7 Segment Display 4 X 9mm (.0.35”) (Amber)
Probe Inputs Control (Liquid), Flow Sensor Input : 2 to 30 LPM (for 1/2” & 3/4”) & 1 to 60 LPM (for 1”)

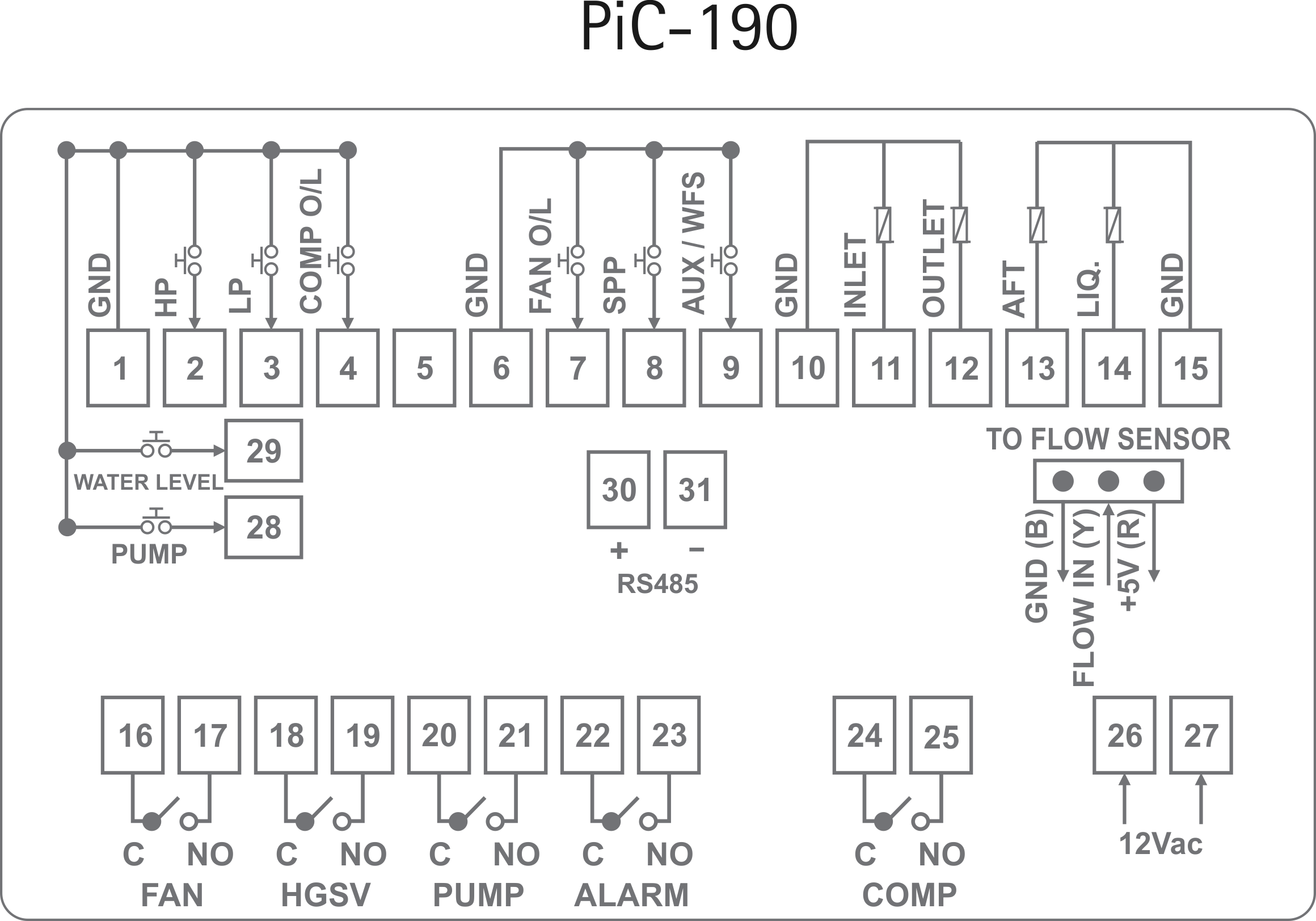

Digital Inputs HP, LP, Comp O/L, Cond O/L, Pump O/L, SPPR, WFS/AUX, Water Level
Relay Outputs Compressor : 20(8)A
Fan : 10A
Pump : 10A
Condenser : 10A
HGSV : 5A
Alarm : 5A
Temperature Range -20.0°C to +50.0°C (Resolution : 0.5°C)
Size 95 x 47mm
Mounting Type Panel Mount, Panel Cutout : 92 x 45mm
Application Process Chiller
