VPM-430
Voltmeter
Main Features
- 7 Segment Display
- True RMS Measurement
- 1ф-2W Electrical Connection
Application: Industrial LT Panel, Motor Control Centres, Distribution control and Relay Panels, Air Conditioning and Refrigeration Panels.
Tech Specification
Display |
7 Segment LED Display, 3 x 14.2mm (0.56") |
Power Supply |
230 Vac, ± 10%, 50/60Hz |
Analog Input AC |
AC Voltage Input |
Resolution |
1V |
Accuracy |
±0.4% of F.S. over rated range |
Measurement Type |
True RMS Voltage |
Measuring Range |
12 to 500VAC |
Size |
96(W) x 96(H) x 46(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
92 x 92mm |

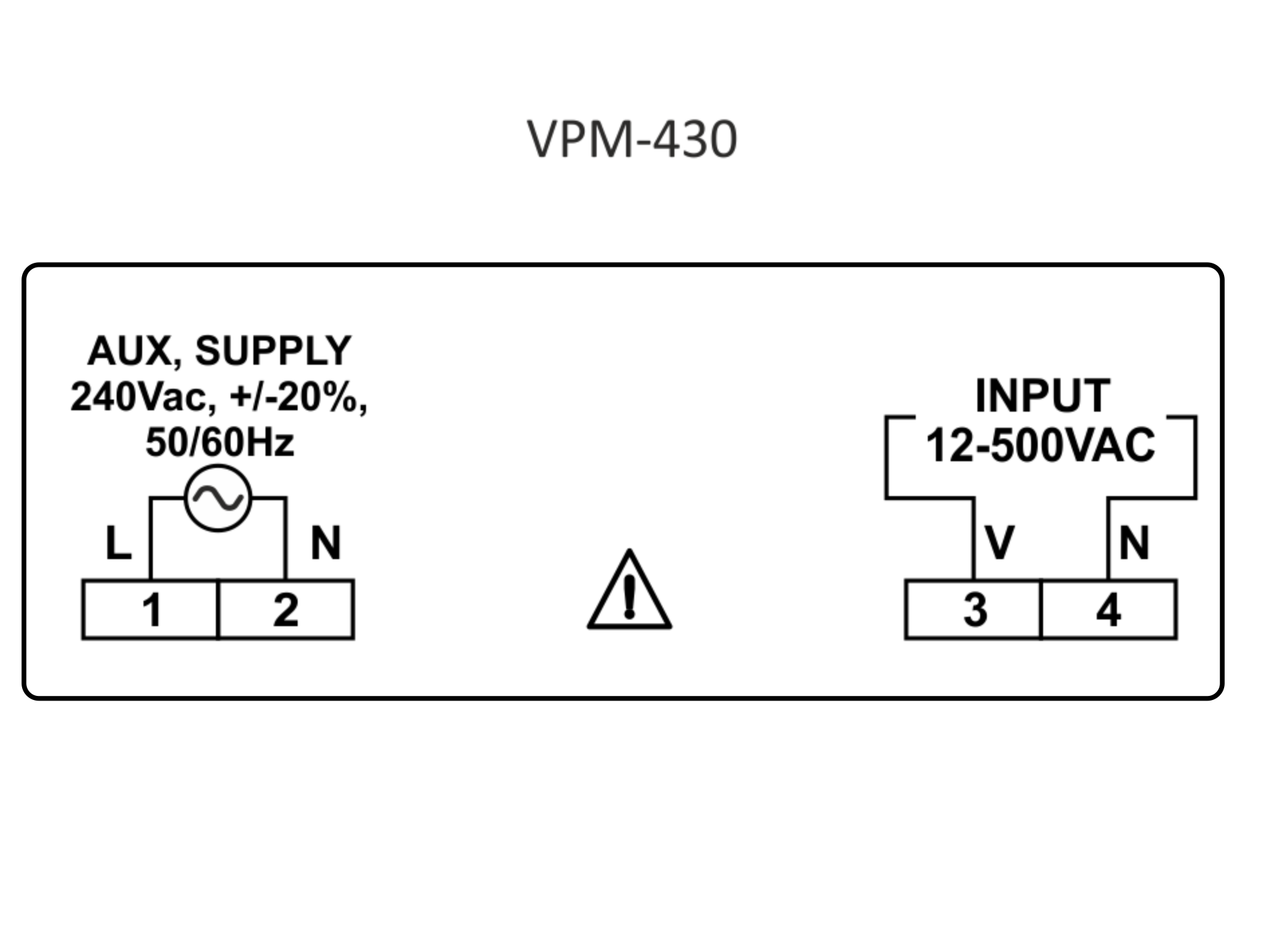

Wiring Diagram
