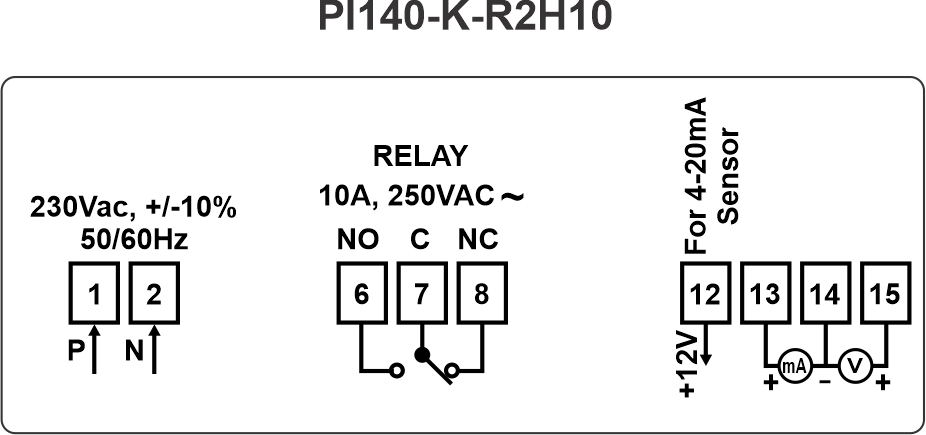

Wiring Diagram
3D View

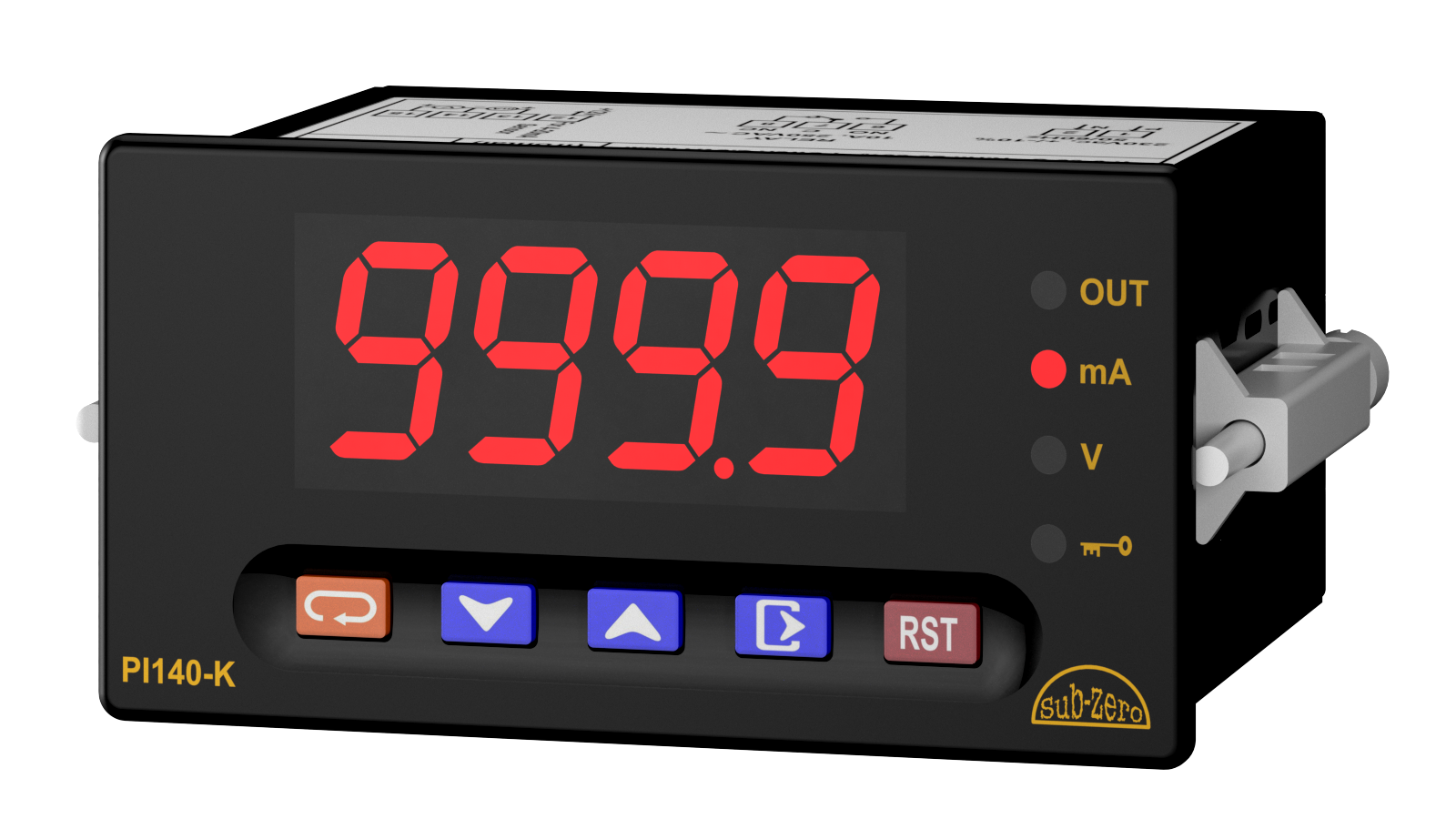

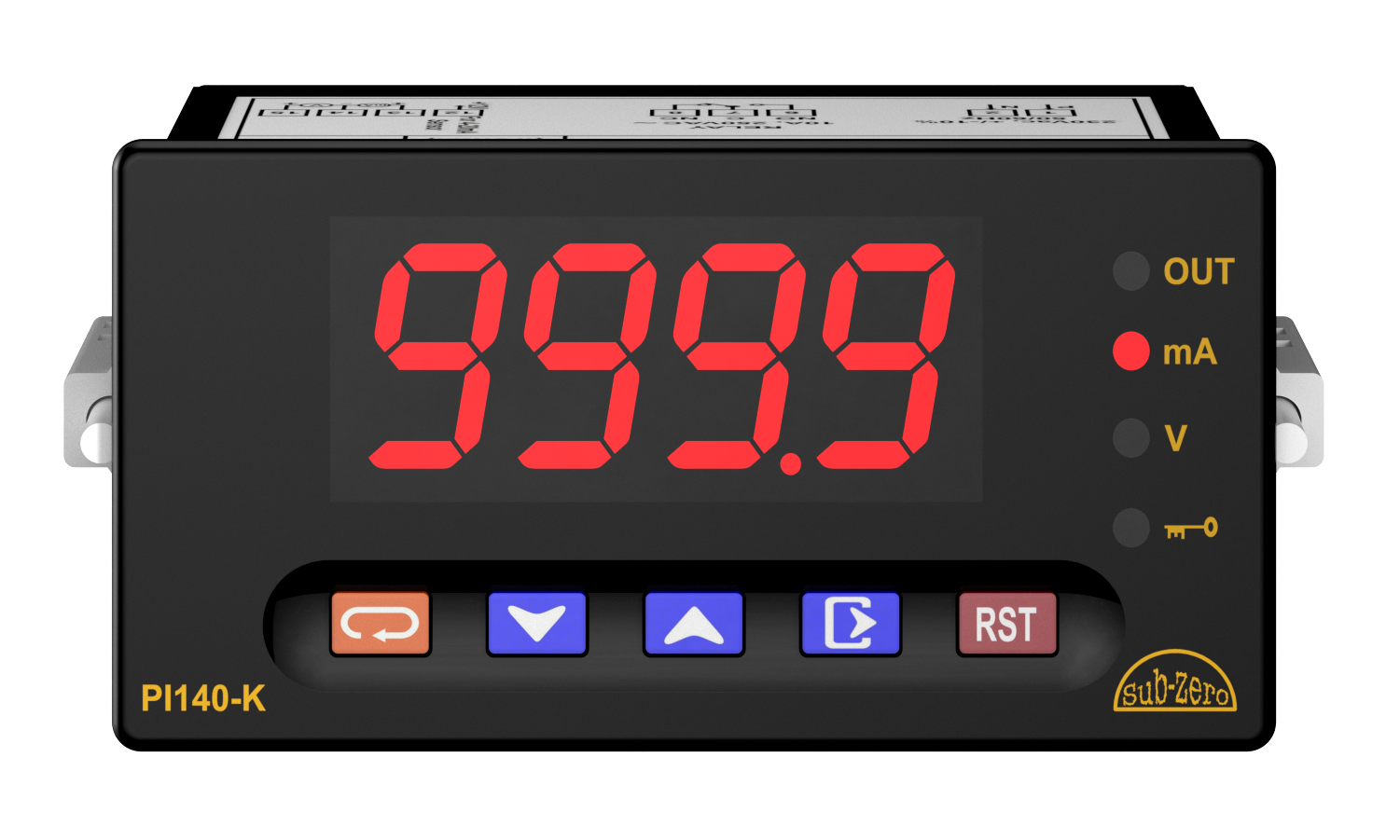

PI140-K-R2H10

Process Indicator

Main Features

    • Standard Display
    • LED indication for Relay
    • Alarm Relay(Ht/Lt)
    • 4-20mA, 0-10V Input
    • Application: Tank level indication, Temperature indicator, General applications

Tech Specification

Display

7 segment LED Display, 4 x 20mm

Power Supply

230 Vac, ± 10%, 50/60Hz

Analog Input

Current, Voltage

Measuring Range

Current: 0 to 20mA, 4 to20mA, Voltage: 0 to 10V

Resolution

Current, Voltage: 0.001/0.01/0.1/1

Accuracy

Current, Voltage: ±0.3% of F.S.

Relay Output

Relay 10A

Size

96(W) x 48(H) x 67(D)mm

Mounting Type

Panel Mount

Cut Out

92 x 45.5mm
