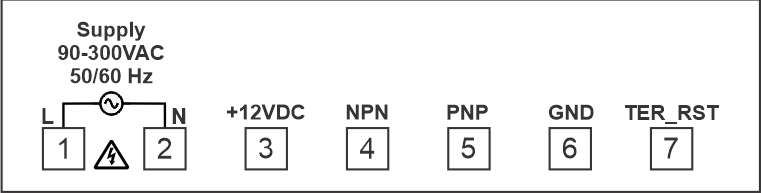

Wiring Diagram
3D View

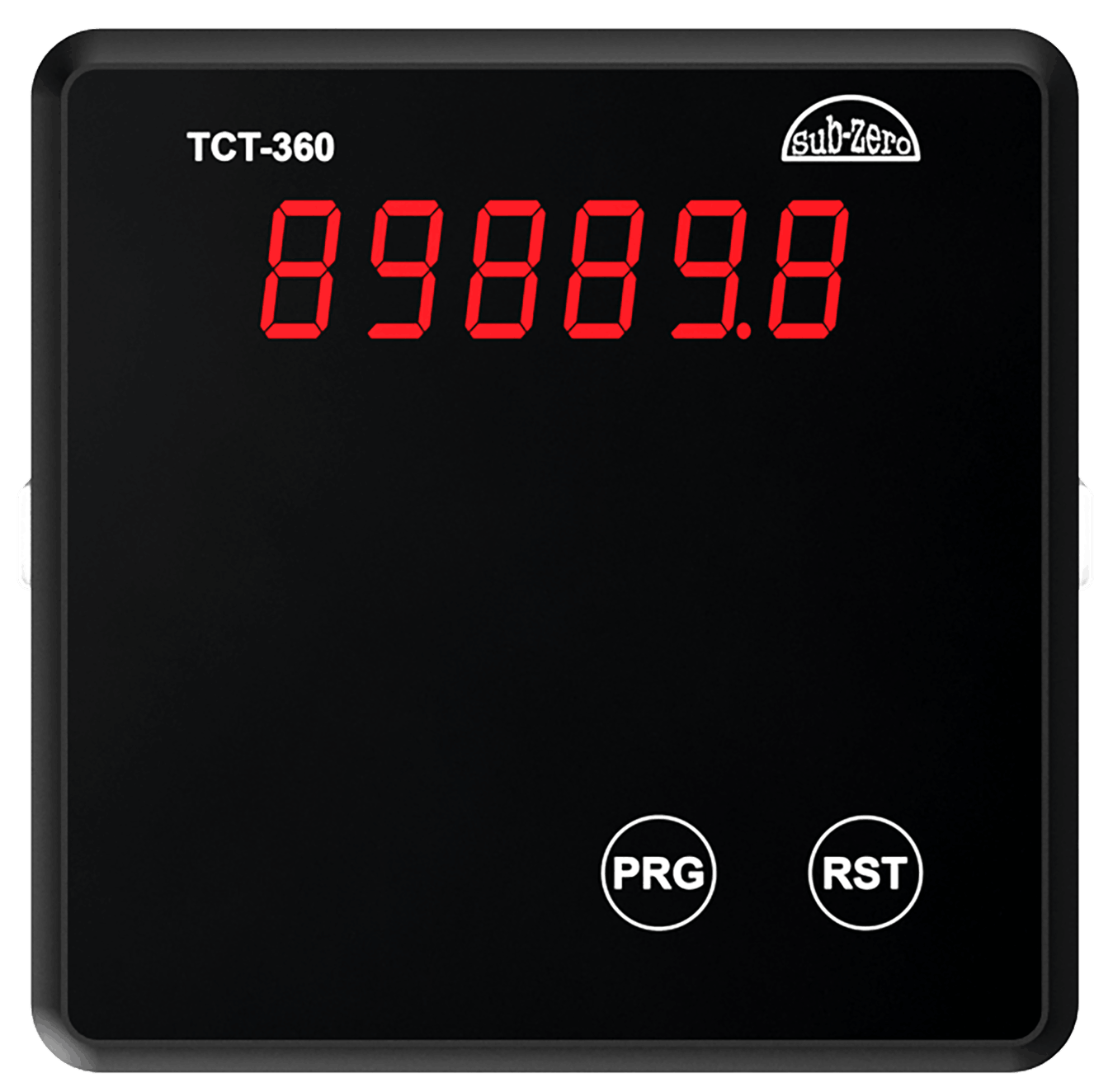

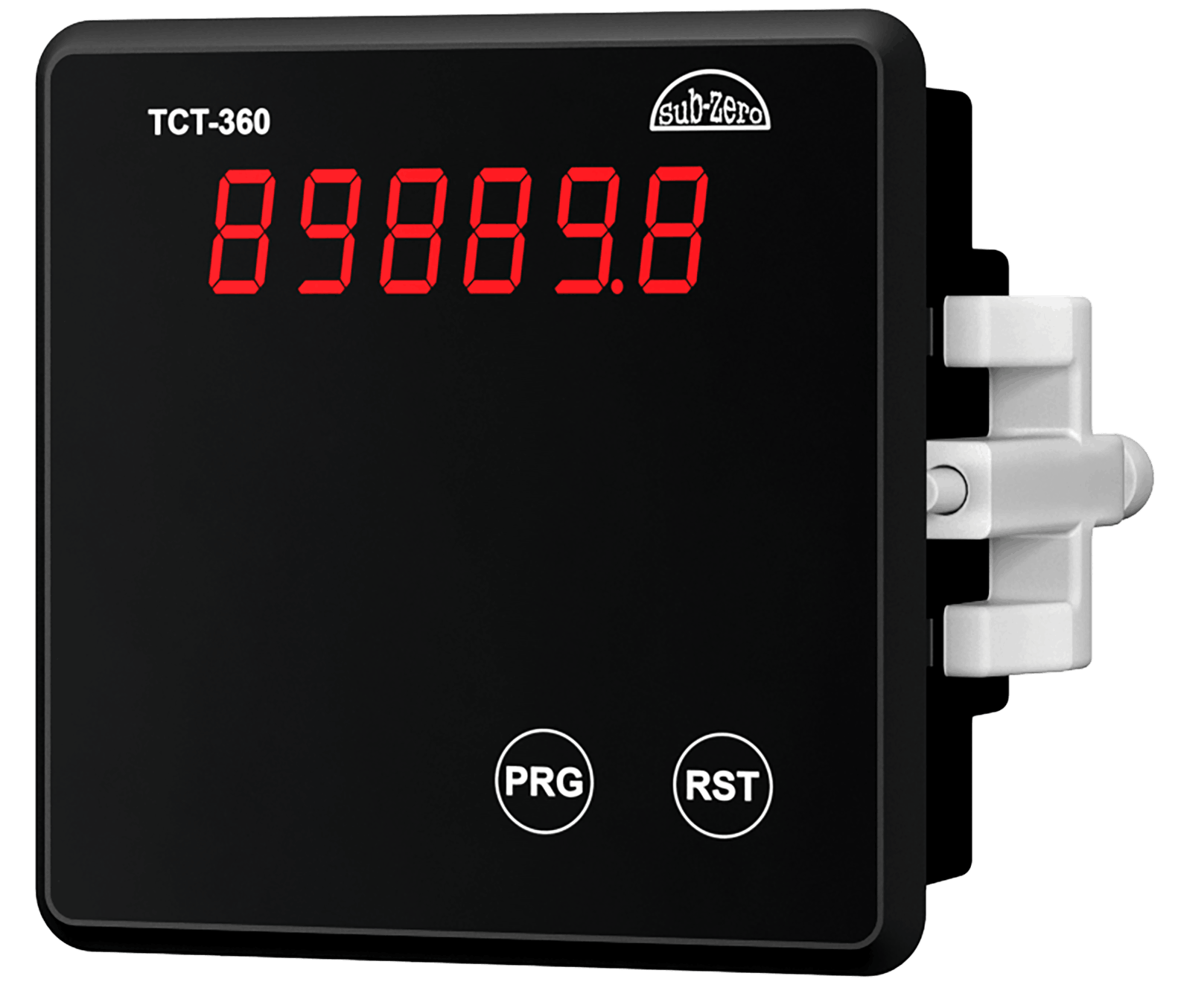

TCT-360-K-R3400

Time+Count Totaliser

Main Features

    • 6-Digit Time+Count Totaliser
    • Proximity(NPN/PNP) Input
    • Memory Retention
    • Auto/Manual Reset
    • Application : Packaging Machinery, Stone Cutting Machine, Injection Moulding Machine

Tech Specification

Display

7 Segment LED Display, 2 x 9.14mm(0.36")

Power Supply

90 to 300 V ac, 50/60 Hz

Digital Input

NPN/PNP/Microswitch, Reset

Special Function

Counting Direction(Up/Down), Memory Retention

Size

78.6(W)X78.3(H)X27.2(D)mm

Mounting Type

Panel Mount

Cut Out

68 x 68mm
