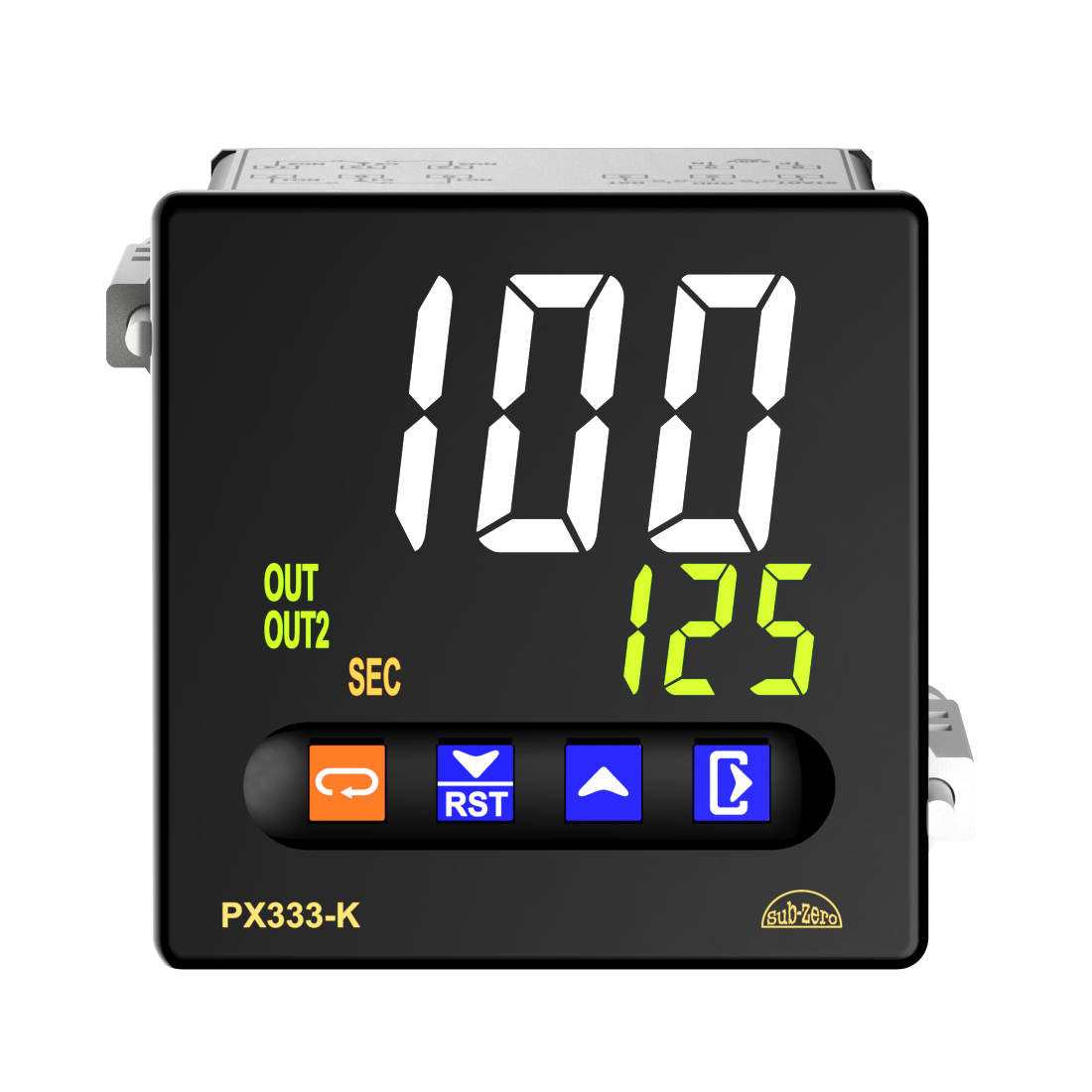

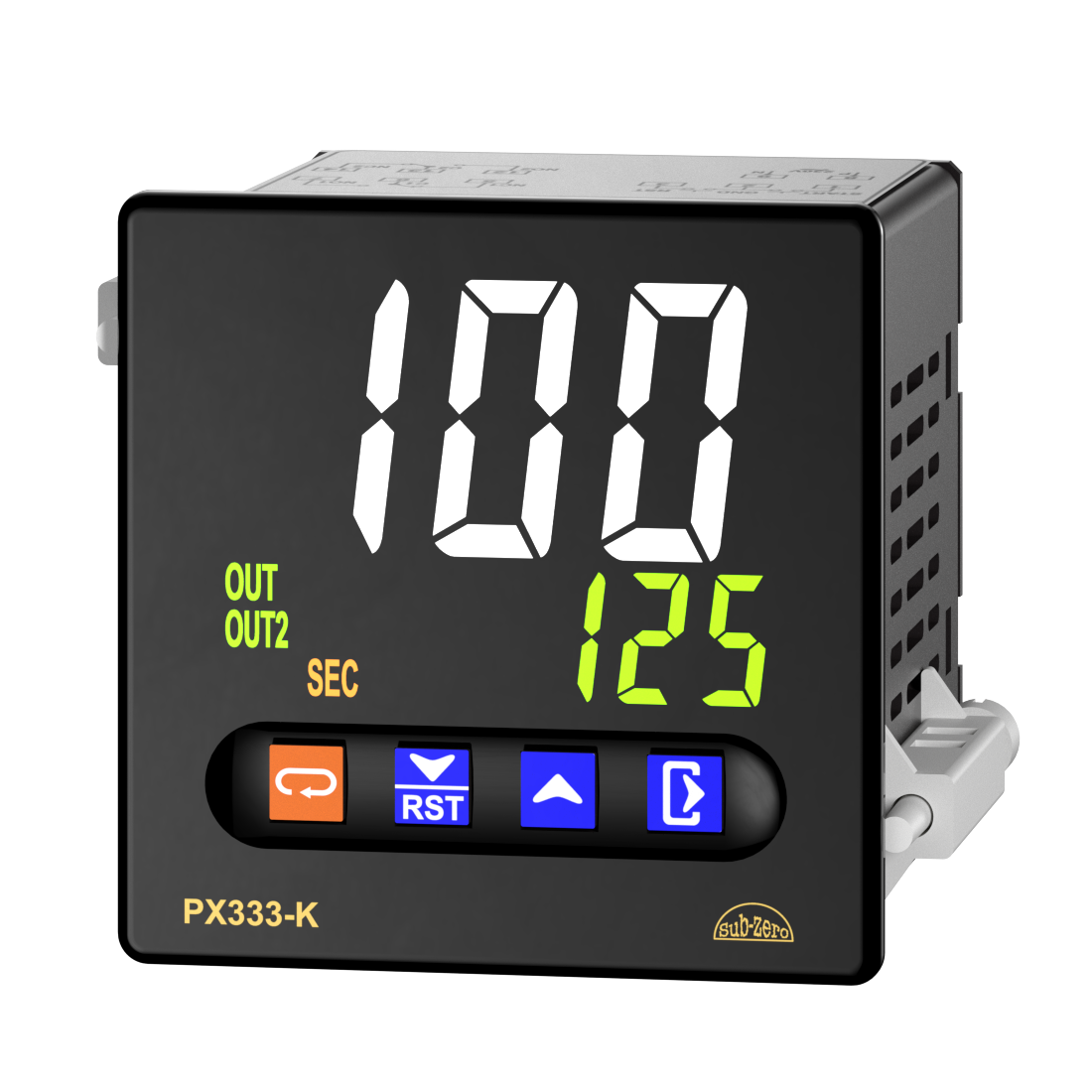

PX333-K
Dual Line Keypad
Main Features
- On Delay, Interval, Cyclic on-off and Forward-Pause-Reverse function available
- Configurable start and Reset pulse i.e. through remote or front panel
- Wide time range: 9.99sec to 999hours
- Selectable up and down counting
- Keylock feature available
- 3 digit for Run time and set time available
- Application: Process Control Equipment to assist in Process Regulation, Industrial Equipment to record its use and age
Tech Specification
Display |
Display(Red): 7 Segment 3 x 20mm, Display(Green): 7 Segment 3 x 9.5mm |
Power Supply |
230 Vac, ± 10%, 50/60Hz |
Start Input |
Pulse Type: Remote (Potential Free), Front (Configurable), Gate Type: Remote (Potential Free) |
Reset Input |
Remote (Potential Free), Front (Configurable) On Power Interruption |
Resolution |
9.99/99.9/999sec, 9.00/99.9/999 min, 9.99/99.9/999Hours |
Accuracy |
±0.05% of set time/50m sec whichever greater |
Relay Output |
Relay1: Control: 5A, 230Vac(Res.) Relay2: Control: 5A, 230Vac(Res.) |
Set Point |
Two Set Point for Cyclic mode, Single Set Point for all other modes |
Control Mode |
Forward, Reverse, Cyclic On, Cyclic Off, ON Delay and Internal mode |
Special Function |
Counting Direction(Up/Down), Memory Retention |
Size |
72(W) x 72(H) x 84(D)mm |

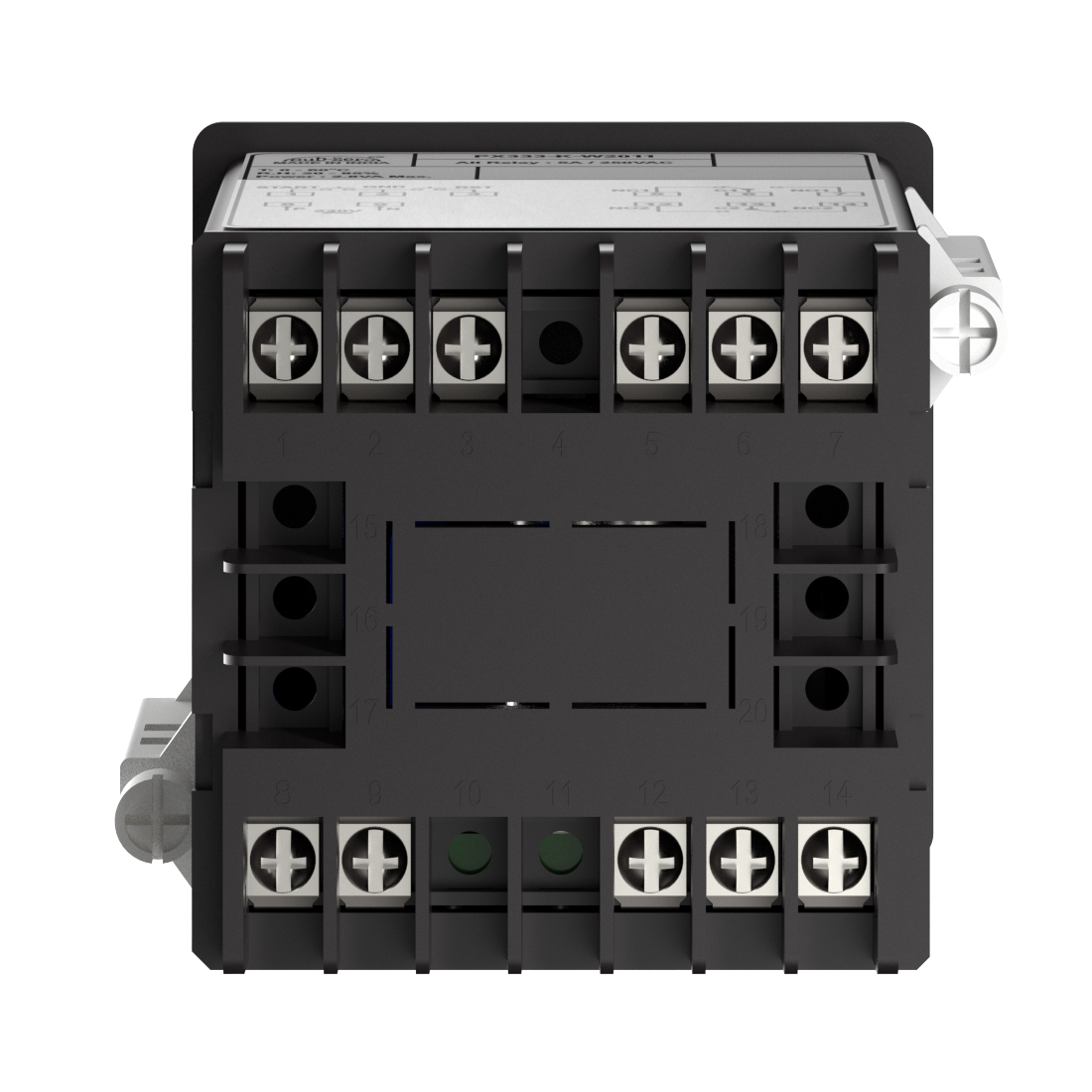

Mounting Type |
Panel Mount |
Cut Out |
68 x 68mm |

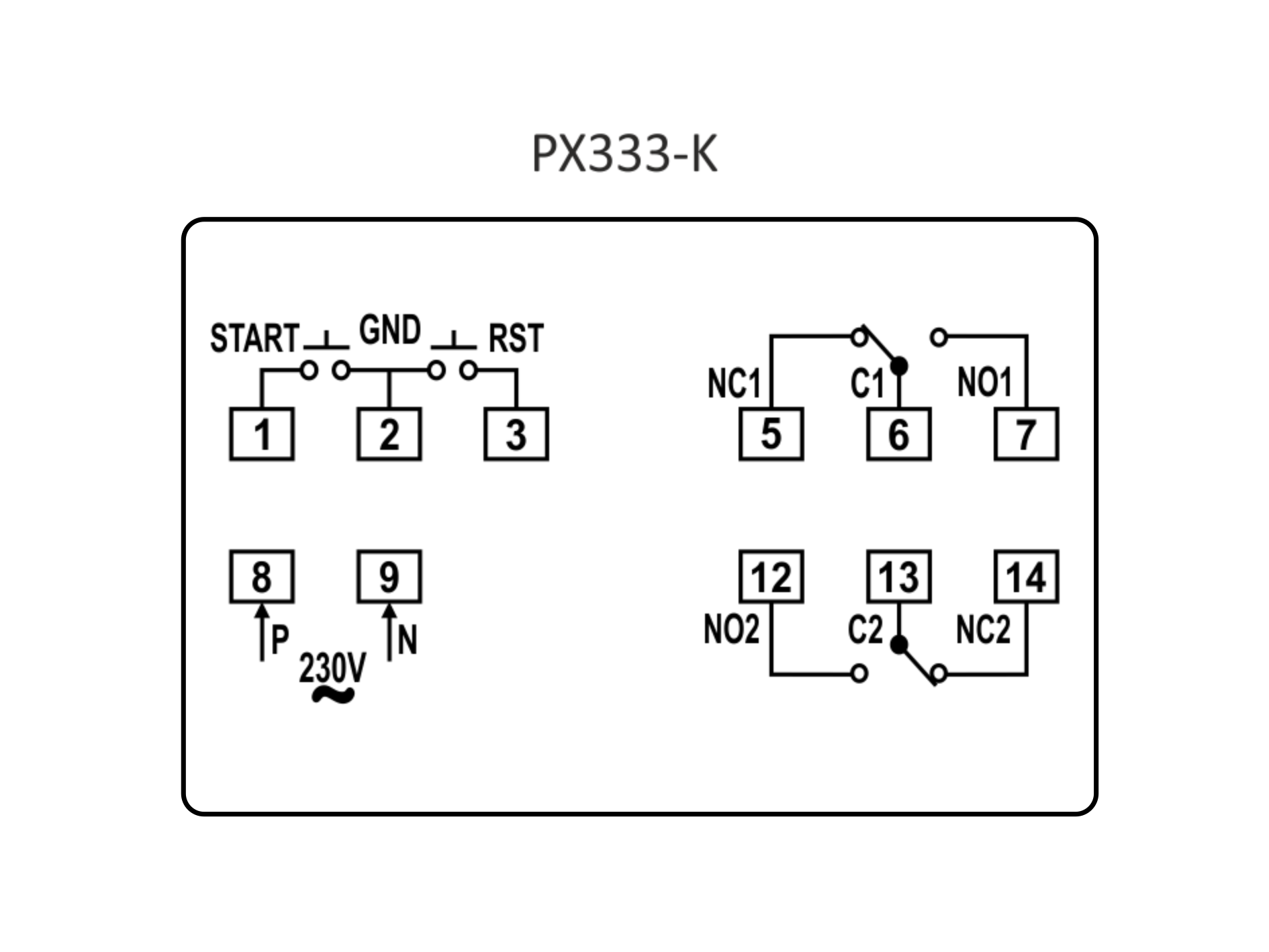

Wiring Diagram
