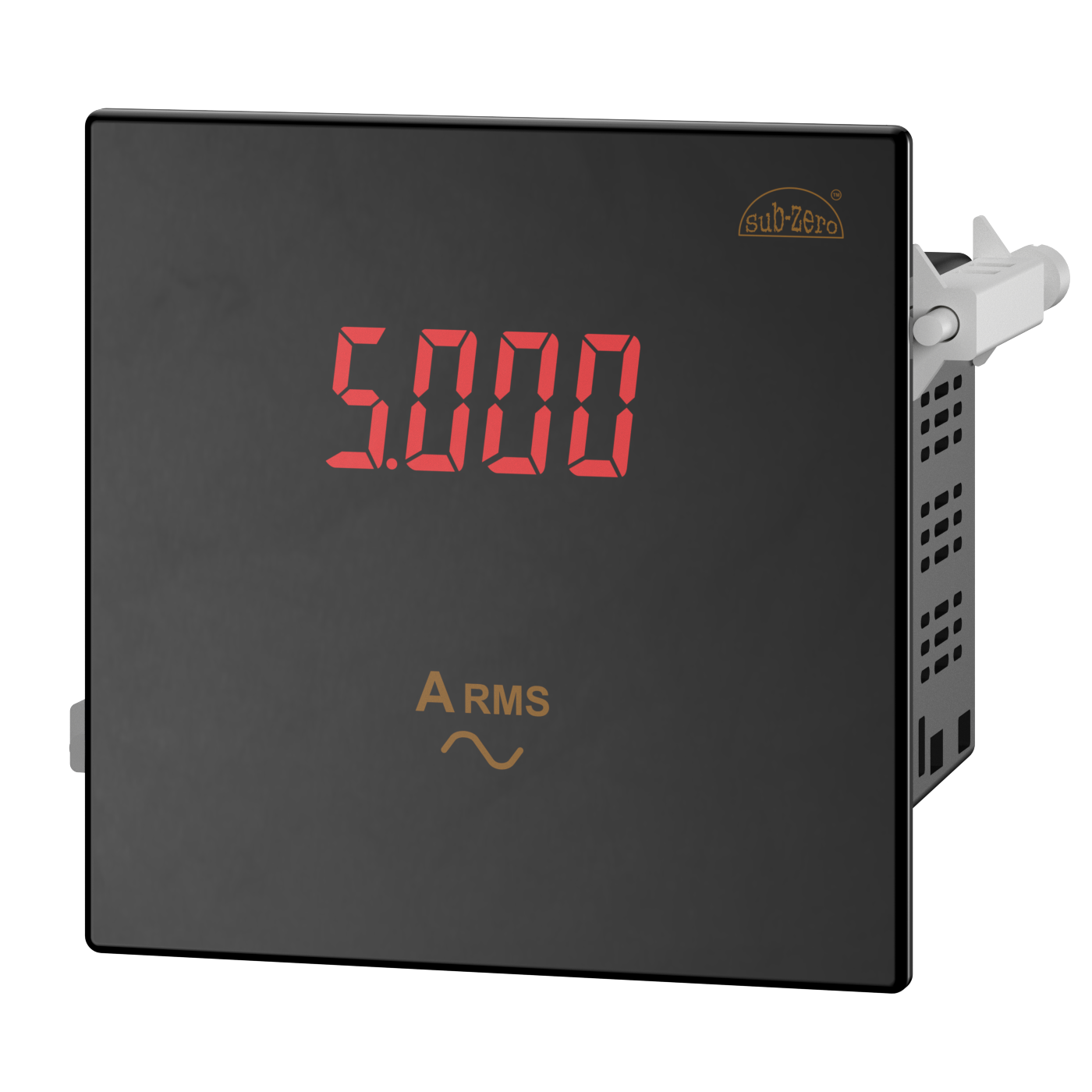

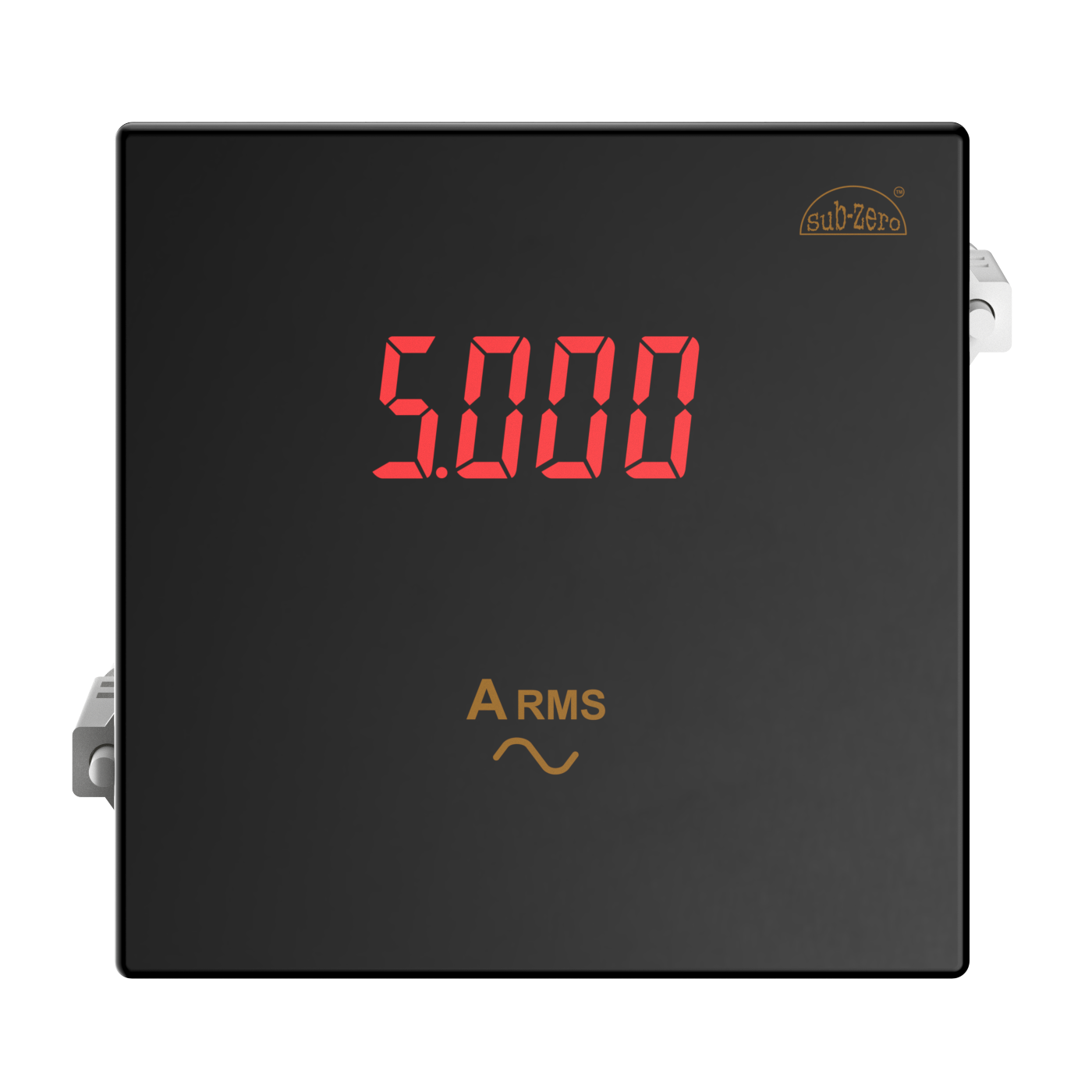

APM-440
Ammeter
Main Features
- 7 Segment Display
- True RMS Measurement
- 1ф-2W Electrical Connection
- Application: Industrial LT Panel, Motor Control Centres, Distribution control and Relay Panels, Air Conditioning and Refrigeration Panels.
Tech Specification
Display |
7 Segment LED Display, 4 x 14.2mm (0.56") |
Power Supply |
230 VAC, ±10%, 50/60 Hz |
Analog Input |
AC Current Input |
Resolution |
0.001A/0.01A/0.1A/1A (Depending upon CTR) |
Accuracy |
±0.5% of F.S. |
Measurement Type |
True RMS Current |
Measuring Range |
CT Primary: 5 to 9000A (Programmable in steps), CT Secondary: 5A Fixed |
Mounting Type |
Panel Mount |
Size |
96(W) x 96(H) x 46(D)mm |
Cut Out |
92 x 92mm |

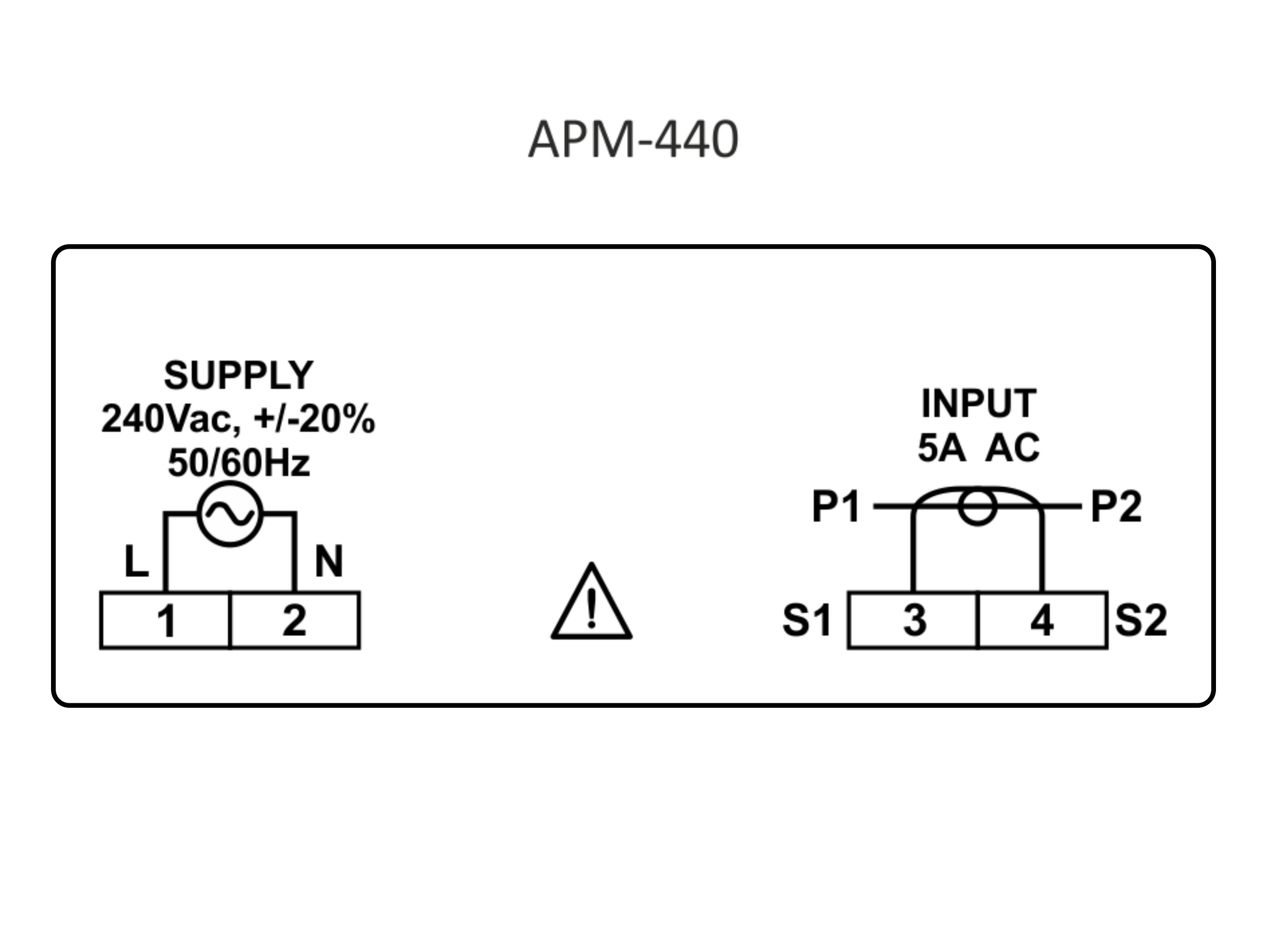

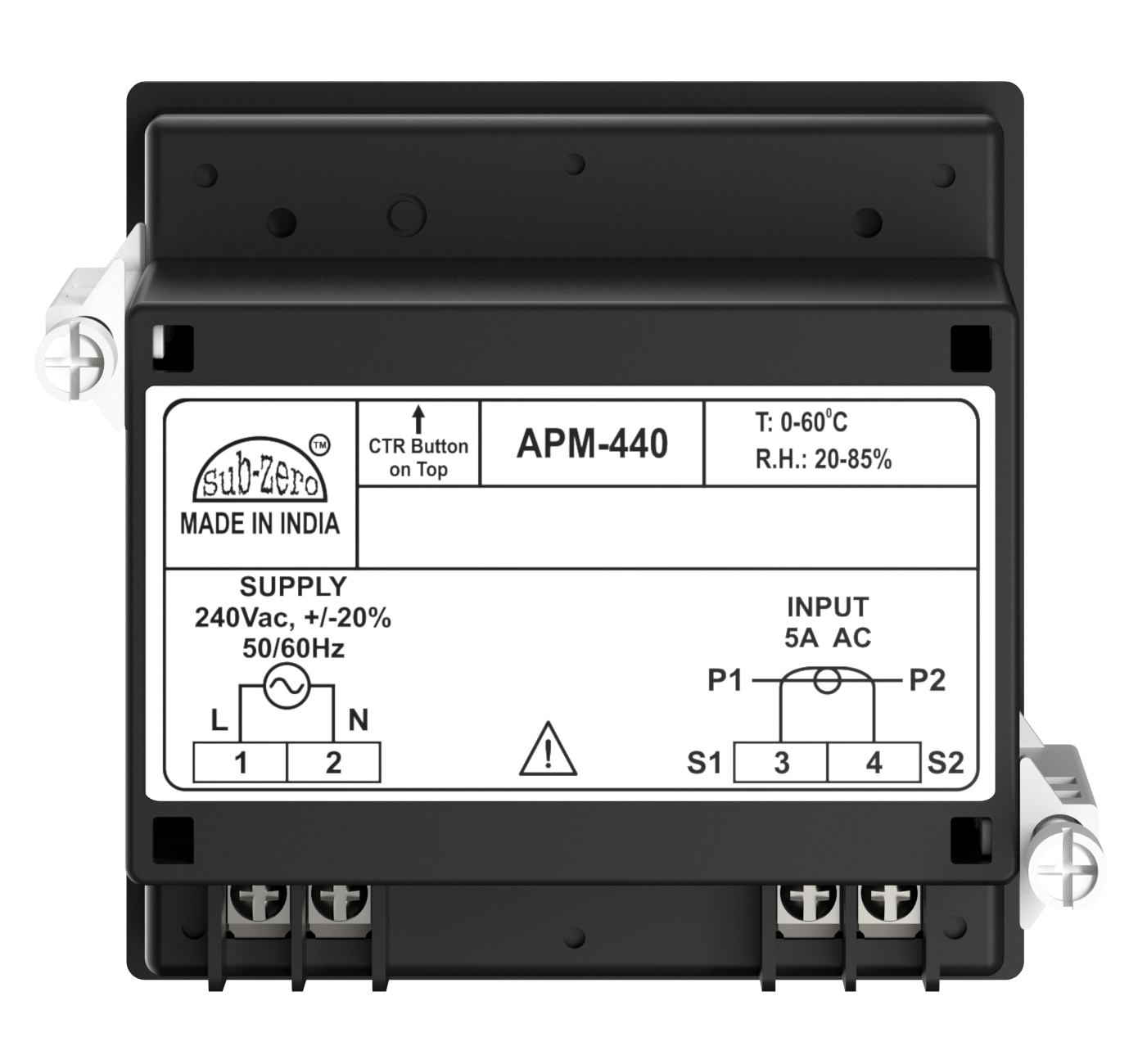

Wiring Diagram
