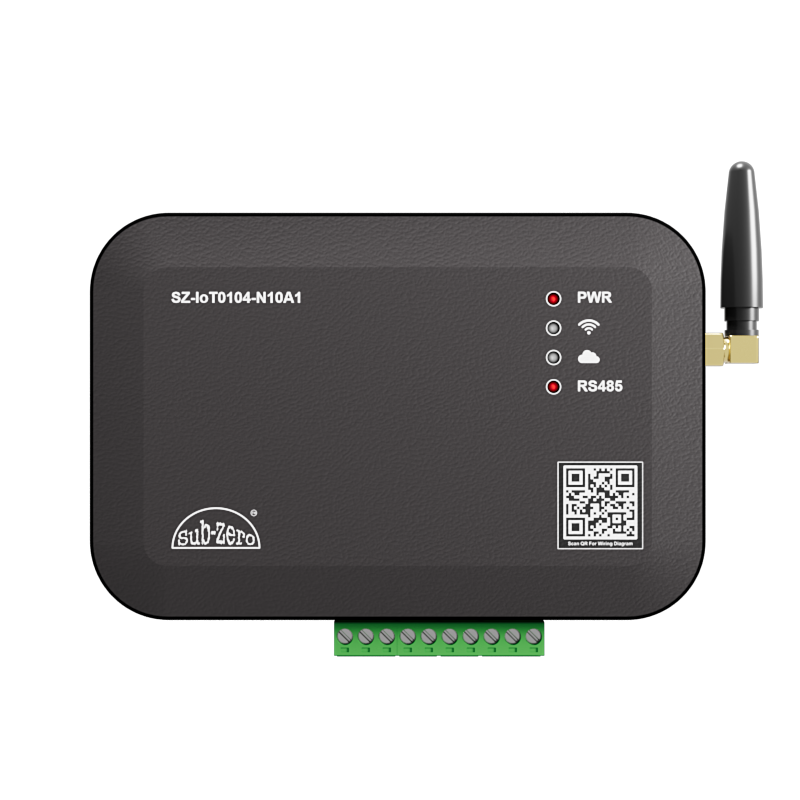

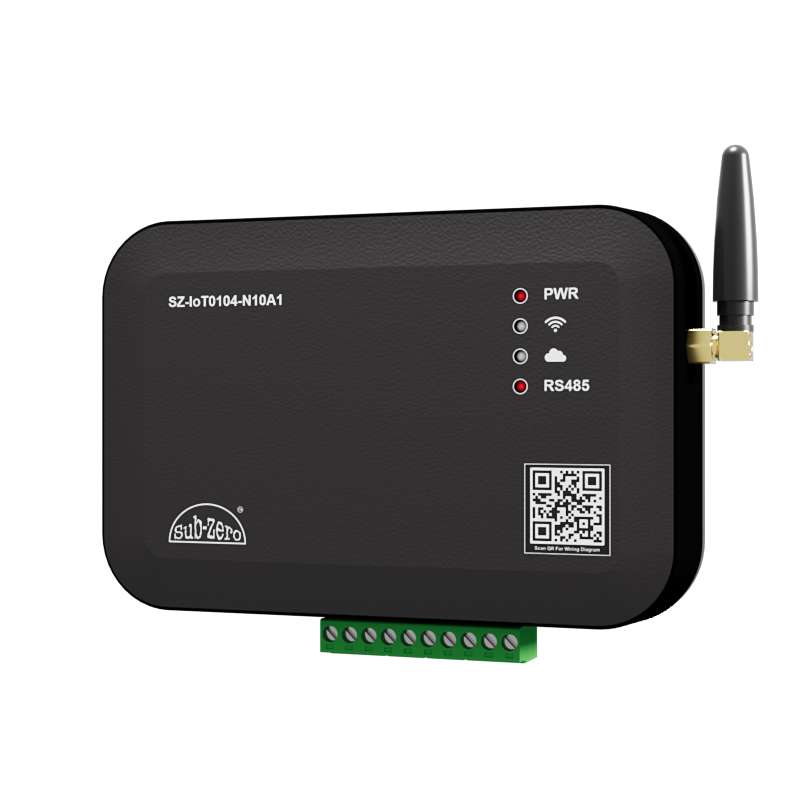

SZ-IoT0104-N10A1
IoT Gateway (Wi-Fi Module) to communicate with Cloud Based Monitoring System
Main Features
Accessibility : 24 x 7 Access over web portal and mobile app to view real-time status.
Dashboard : List view and 24 Hrs. Graph gives easy summarized display of connected devices.
Data Downloading : Reports in pdf or csv format , Scheduled Email Reports.
Notifications : Alert notifications through SMS and Email.
Historical data : For analysis and audit purposes with given selection of time/date interval.
Data Security : System is protected with User ID and password to prevent unauthorized use.
Tech Specification
Power Supply |
AC-DC Converter Adapter 100-275VAC, 50/60HZ, 24VDC, 2A |
Analog Input |
1. NTC, 2.RH Sensor(SZ-HS-220/SZ-HS-100/4-20mA), 3. 4-20mA |
Measuring Range |
1. Temperature Range (-50.0°C to 100.0°C) 2. Humidity Range – (HS-220: 30.0 to 90.0% HS-100: 0.0 to 100.0%, 4-20mA: 0.0% to 100.0%) 3. 4-20ma (-999 to 1999) |
Resolution |
Temp: 0.1°C or 1°C, RH: 0.1% or 1% |
Antenna |
2.4 GHz Duck WIFI 2.5 Dbi Rubber Antenna |
WiFi Technology |
Wi-Fi interface supports 2.4 GHz frequency bands, complying with the IEEE 802.11 b/g/n standards |
Cellular Technology |
4G/LTE |
Size |
80(W)X80(H)X7.5(D)mm |
Mounting Type |
Wall Mount |

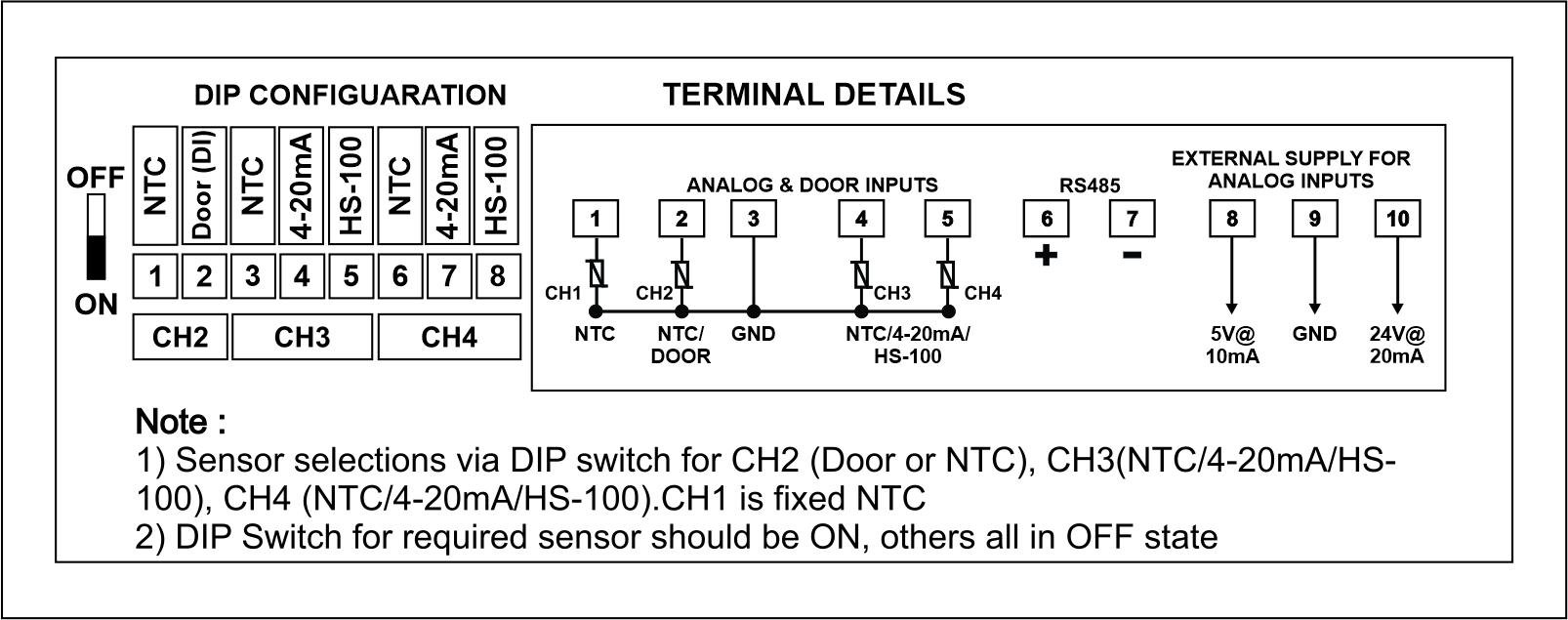

Wiring Diagram
