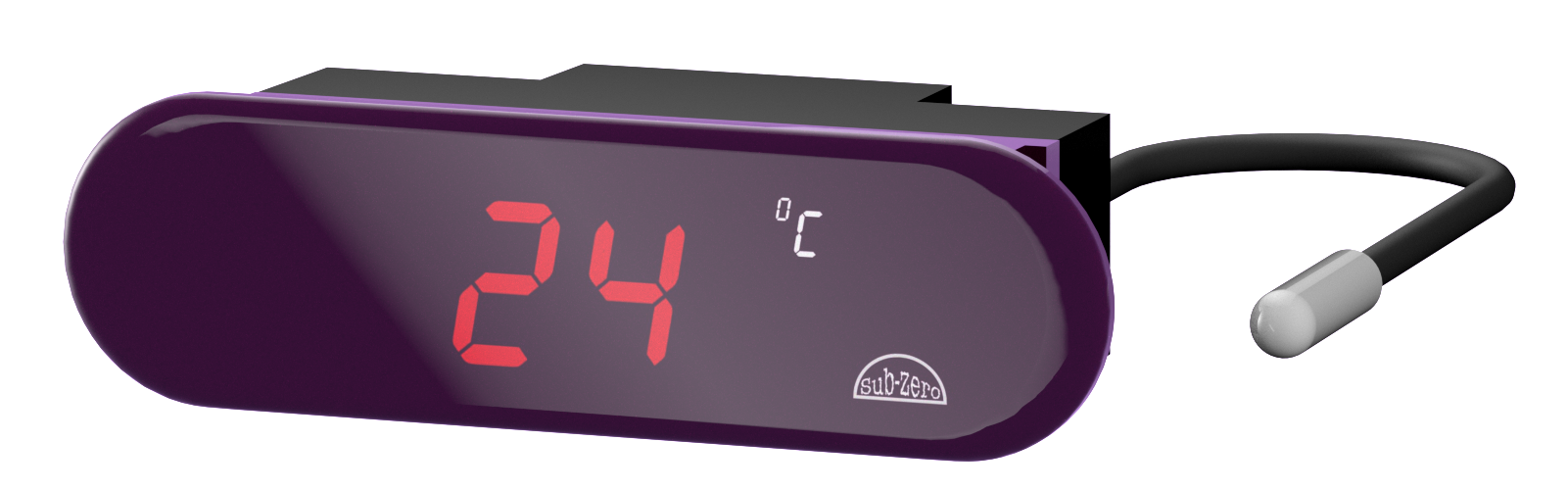

SZ-7501
Temperature Indicator
Main Features
- 0.36'' Display
- 1°C Resolution.
- Application: Pastry & Ice-cream cabinets, Visi-Coolers
Tech Specification
Display |
7 Segment LED Display, 2 x 9.14mm |
Power Supply |
230Vac |
Probe Input |
NTC |
Temperature Range |
-40°C to 50°C |
Resolution |
1°C |
Size |
83(W) x 23.5(H) x 39(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
66 x 19mm |

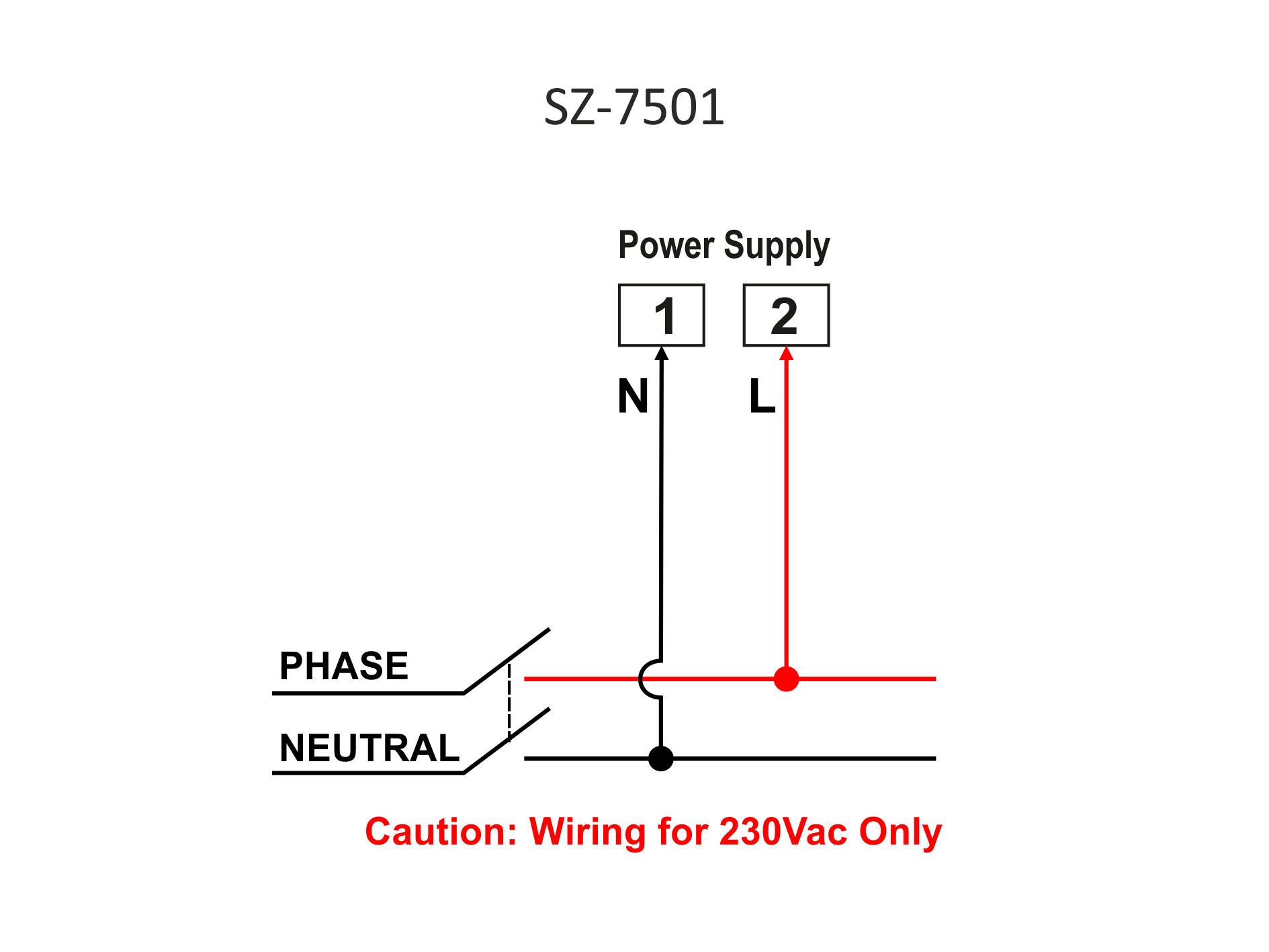

Wiring Diagram
