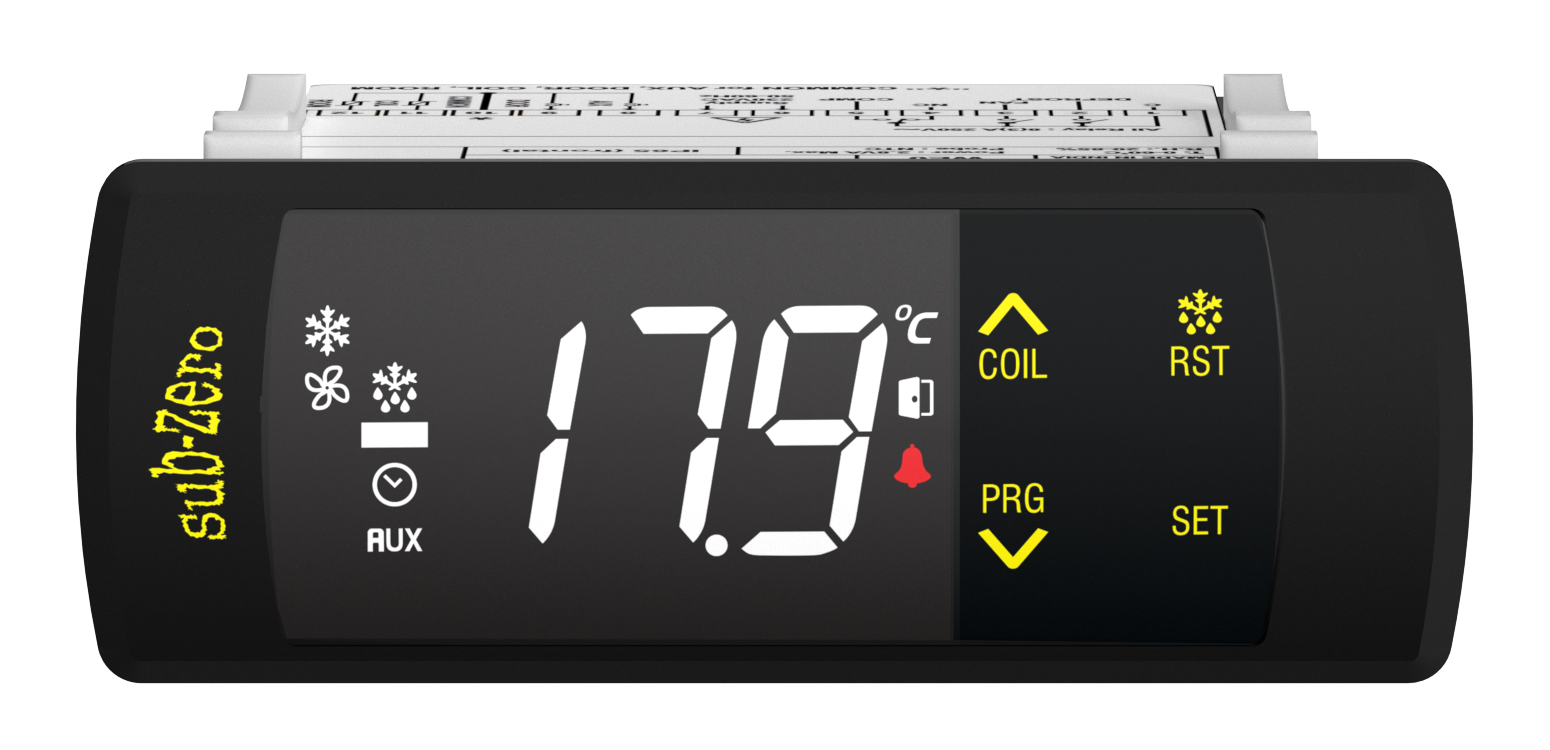

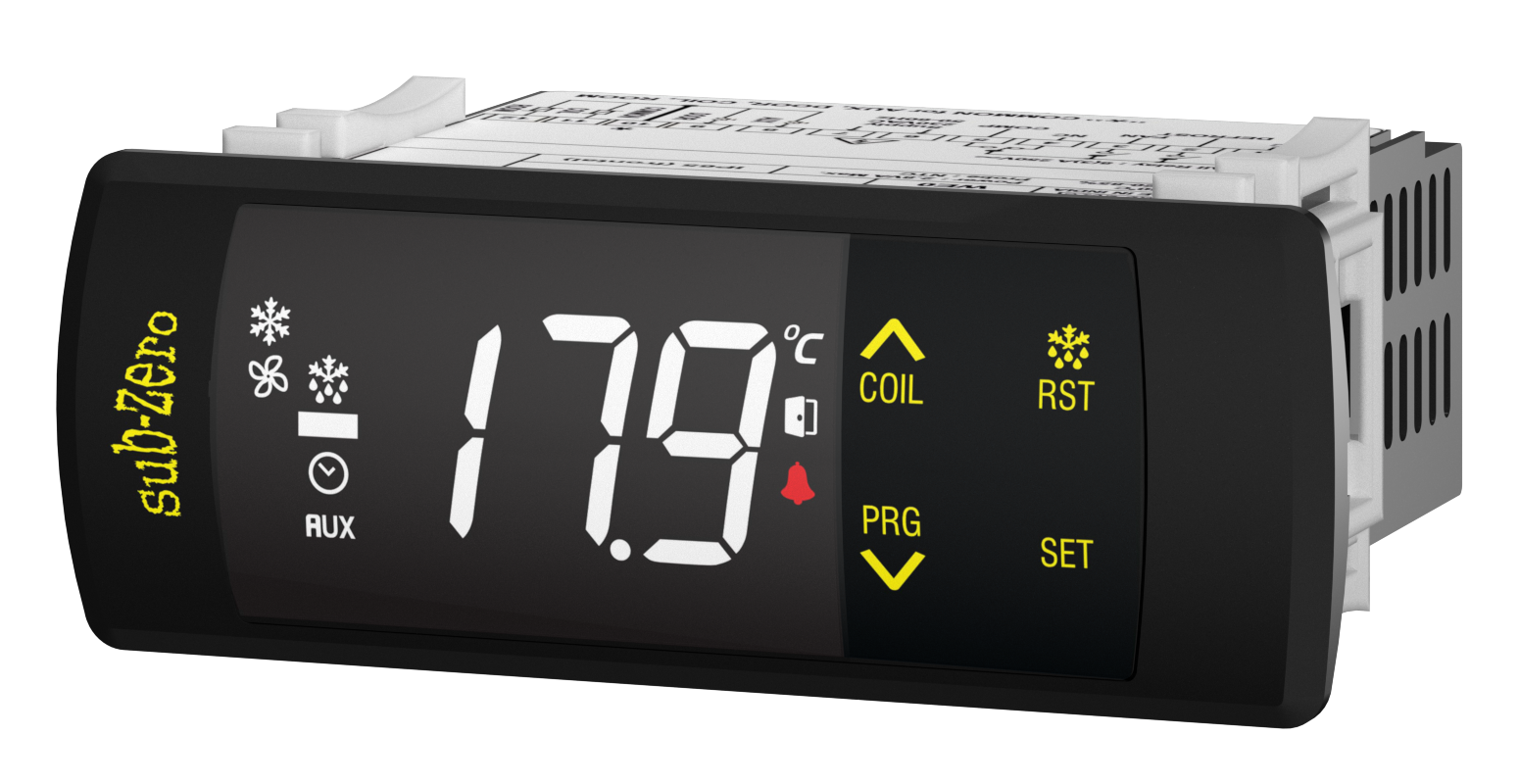

SZ-7524T
Temperature Controller for Freezer
Main Features
- Selectable Time, Temperature based Defrost
- Auto/Manual Defrost option available
- 0.1 Resolution for Precise Control
- Touch Sensitive Keypad
- Settable ON & OFF time delay for Compressor Protection
- Digital Inputs for Compressor Fault and Door Open fault
- Password Protection for Parameters
- Auto Operation in case of Sensor Failure/Error
- High & Low Temperature Logs
- Applications: Freezers, Small Cold Rooms, Refrigerated Tables
Tech Specification
Display |
7 Segment LED Display, 3 x 17mm |
Power Supply |
230Vac |
Probe Input |
2 NTC |
Temperature Range |
-50.0°C to 50.0°C or -50°C to 50°C |
Resolution |
0.1°C or 1°C (Settable) |
Digital Input |
Potential Free: Compressor fault or Door Open fault |
Relay Output |
Compressor 8(3)A, Fan 8(3)A, Defrost 8(3)A |
Size |
94(W) x 35.3(H) x 80(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

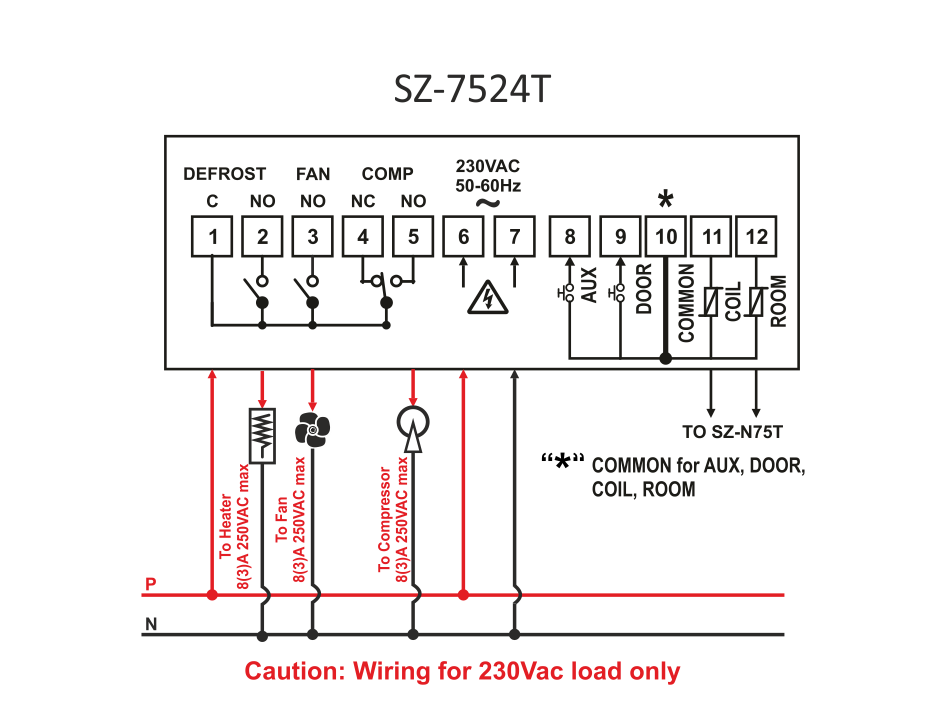

Wiring Diagram
