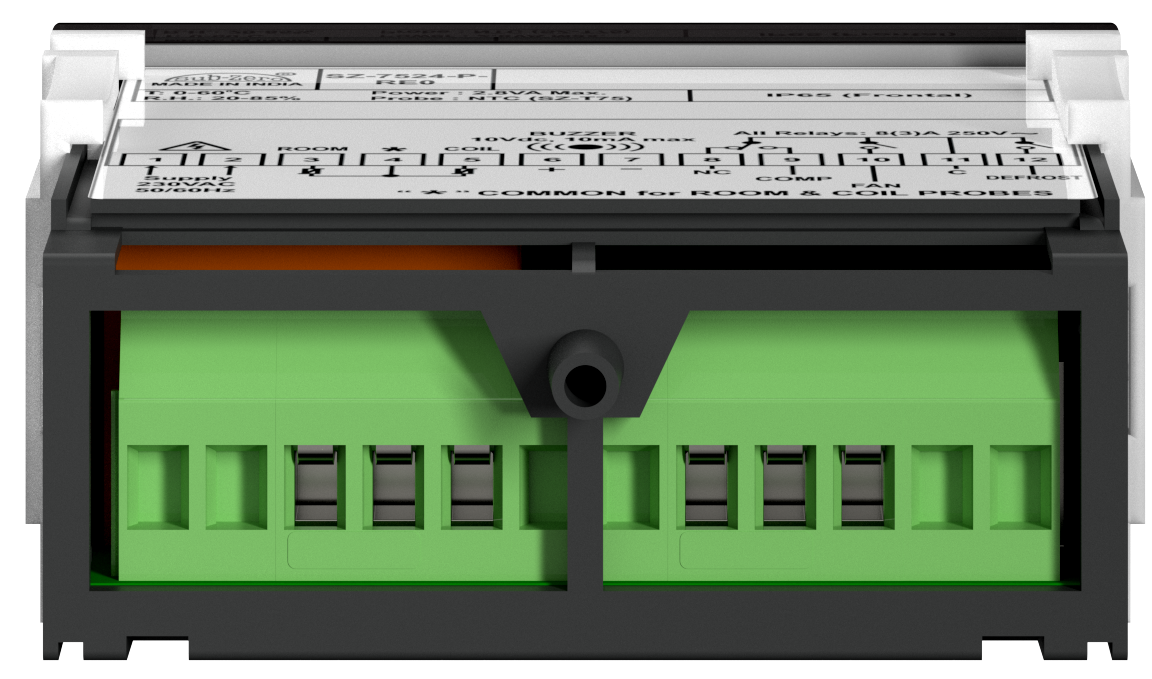

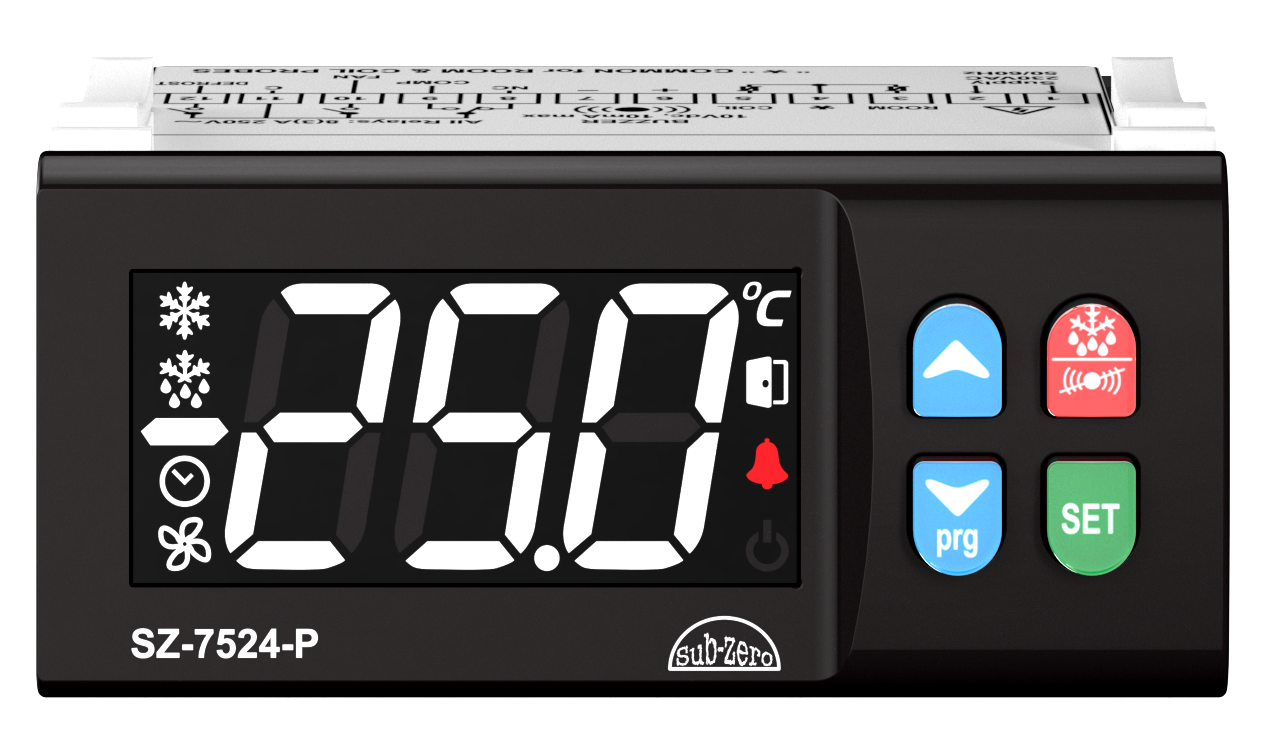

SZ-7524P
Temperature Controller for Freezer
Main Features
- 2 NTC probes for Cold Room Temperature + Evap. coil
Temperature. - Compressor protection algoriithm.
- Auto/Man defrosting facility (Time/Temp based).
- Buzzer Output
- Application: Freezers, Cold Rooms, Small Cold Rooms, Refrigerated Tables
Tech Specification
Display |
7 Segment LED Display, 3 x 17mm |
Power Supply |
230 Vac, ± 10%, 50/60Hz |
Probe Input |
2 NTC |
Resolution |
1°C or 1°F (Settable) |
Relay Output |
Compressor 8(3)A, Fan 8(3)A, Defrost 8(3)A |
Mounting Type |
Panel Mount |
Cut Out |
29 x 71 mm |
