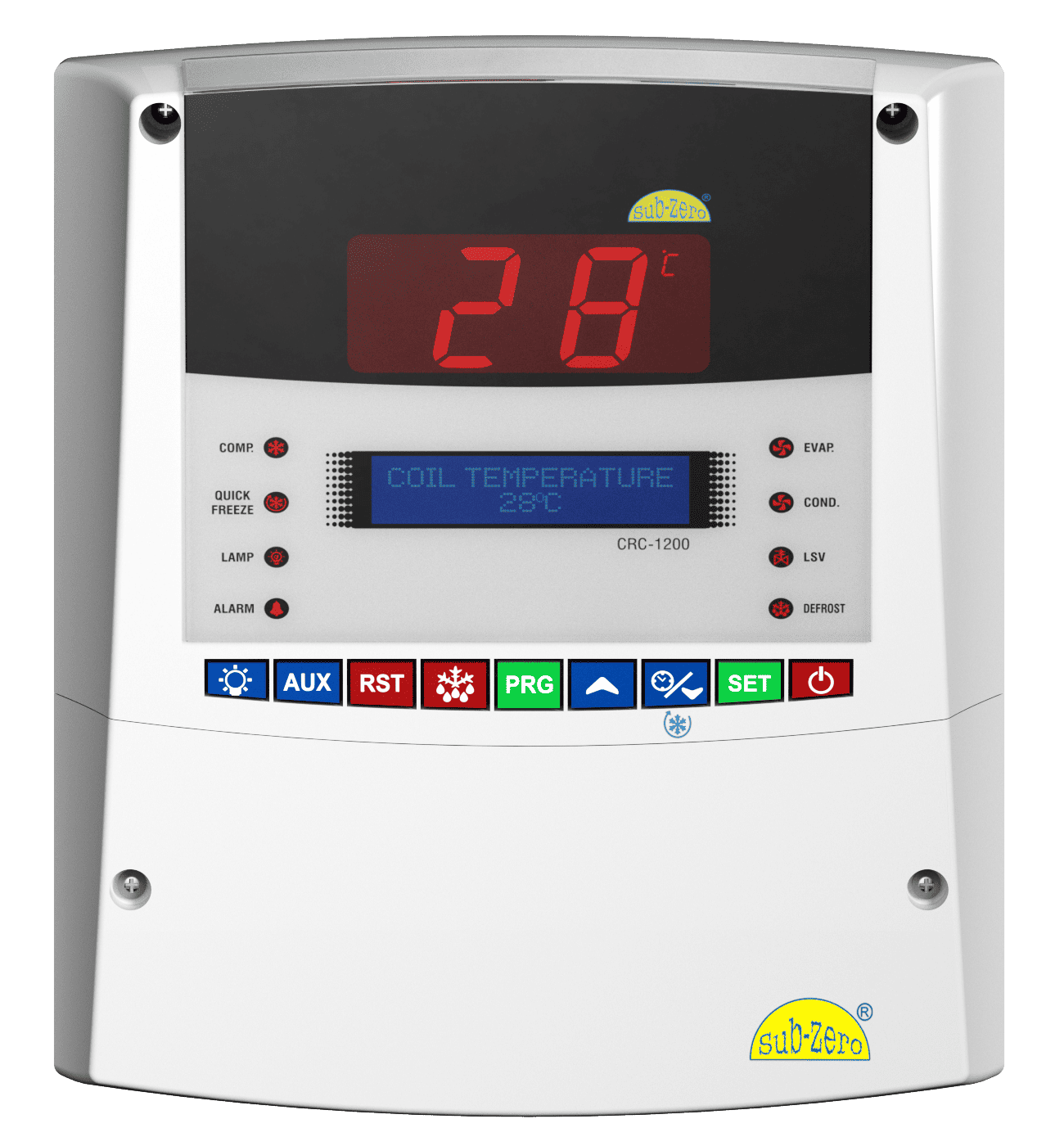

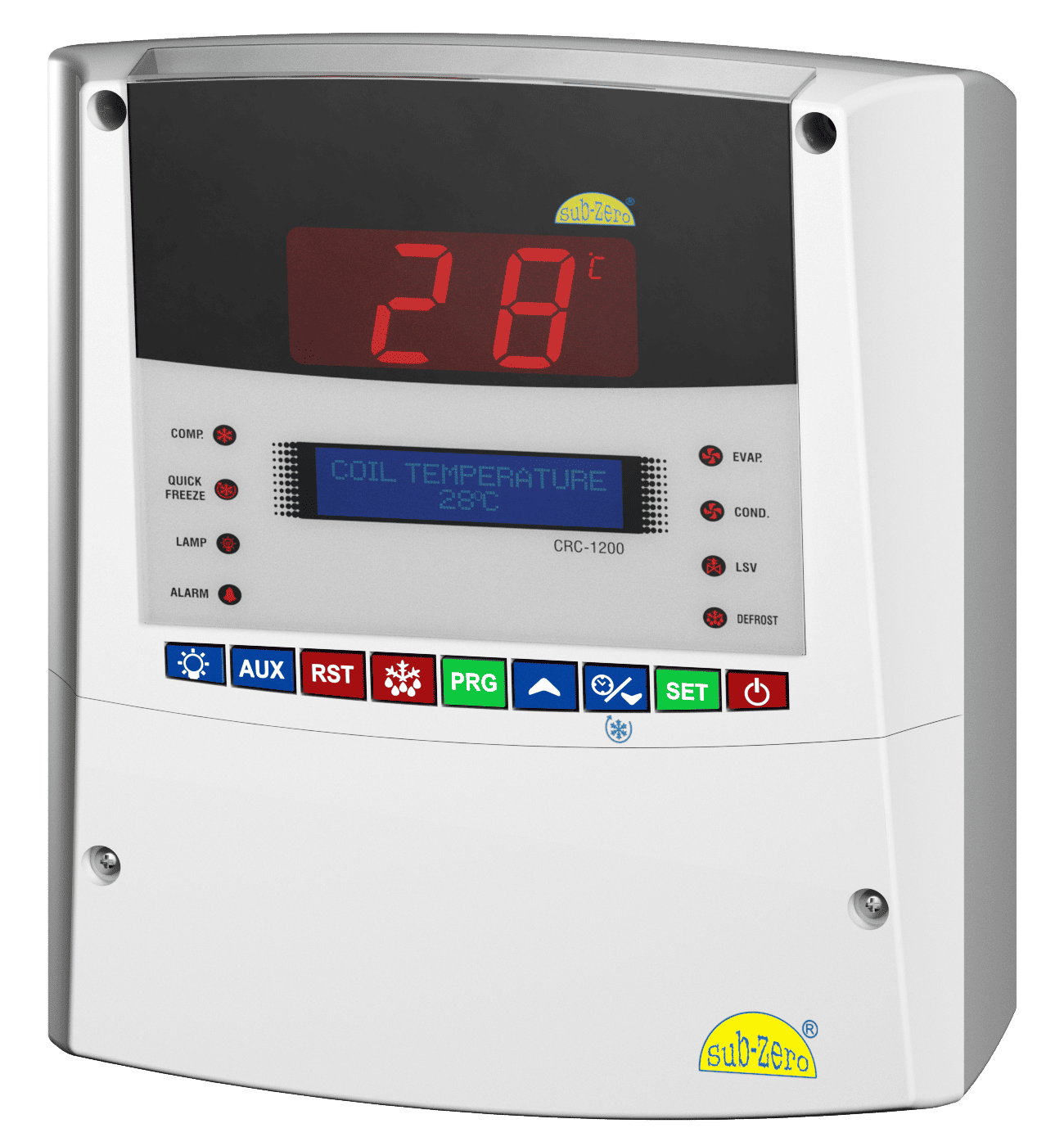

CRC-1200
Wall Mount Controller for Low Temperature Cold Room with RS-485
Main Features
- Time and Temperature based Defrost
- Auto/Manual Defrost option available
- Quick Freeze Mode
- Internal Buzzer for Faults
- RS-485(Modbus) Connectivity
- HP/LP, SPPR fault Inputs for compressor protection
- Door Open fault Input
- Last 10 Fault Record with Date and Time Stamp
- Application: Low(Negative) Temp. Cold Rooms
Tech Specification
Display |
7 Segment LED Display, 2 x 25.4mm (1"), 16 x 2 LCD Display |
Power Supply |
230Vac |
Probe Input |
2 NTC |
Temperature Range |
-50°C to 35°C |
Resolution |
1°C |
Digital Input |
Potential(230V): HP, LP, SPPR, Potential Free: Door Input |
Relay Output |
Compressor 8(3)A, Defrost 8(3)A, Condenser 8(3)A, Evaporator 8(3)A, LSV 8(3)A, Light 8(3)A |
Alarm Output / Buzzer |
Alarm 8(3)A & Internal Buzzer |
Communication |
RS-485 Serial port with Modbus RTU Protocol |

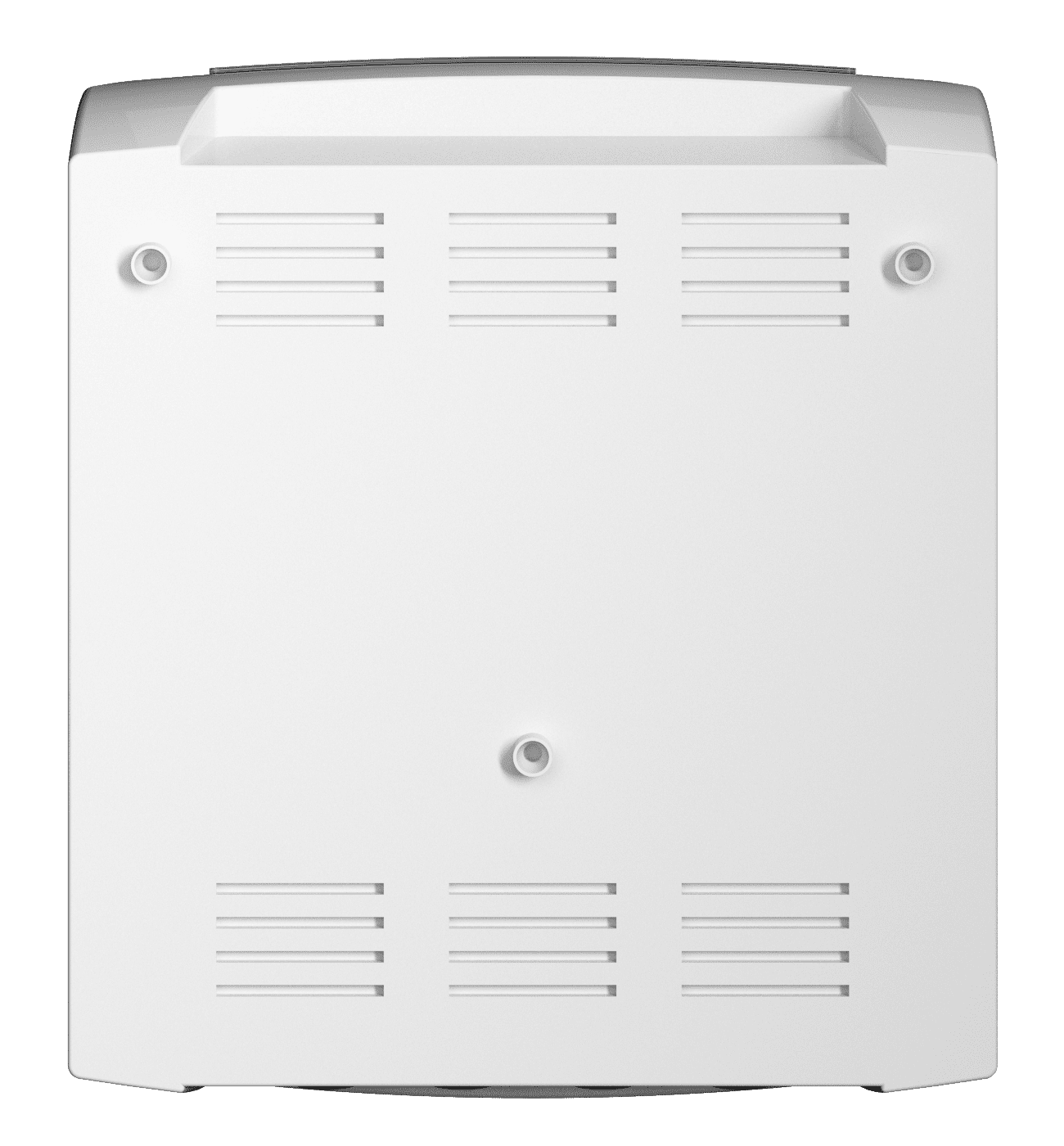

Mounting Type |
Wall Mount |
Size |
200(W) x 227(H) x 93(D)mm |

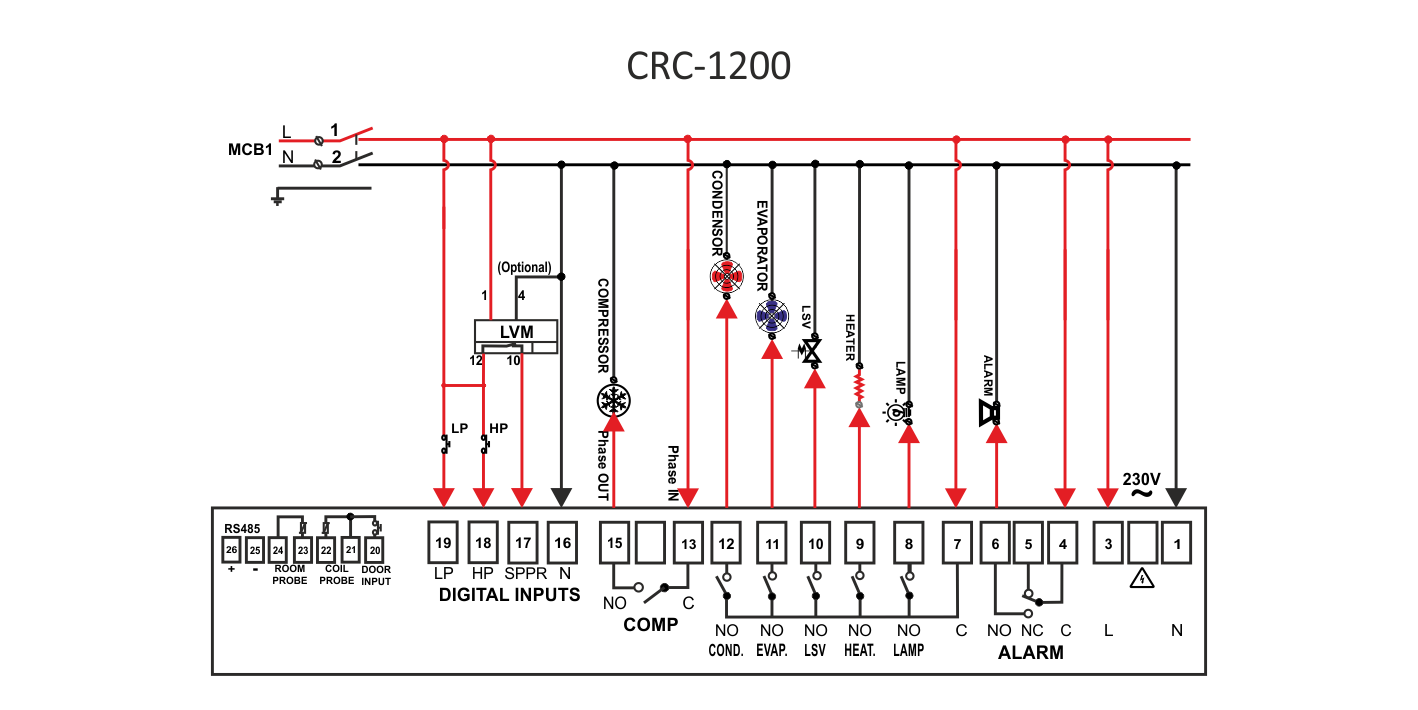

Wiring Diagram
