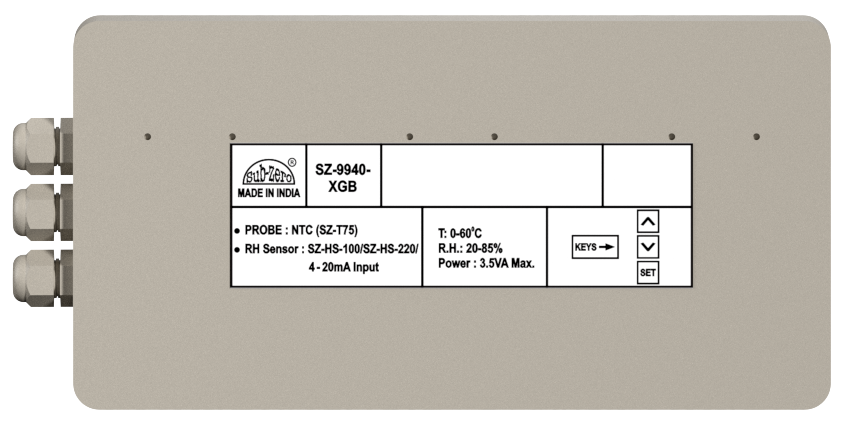

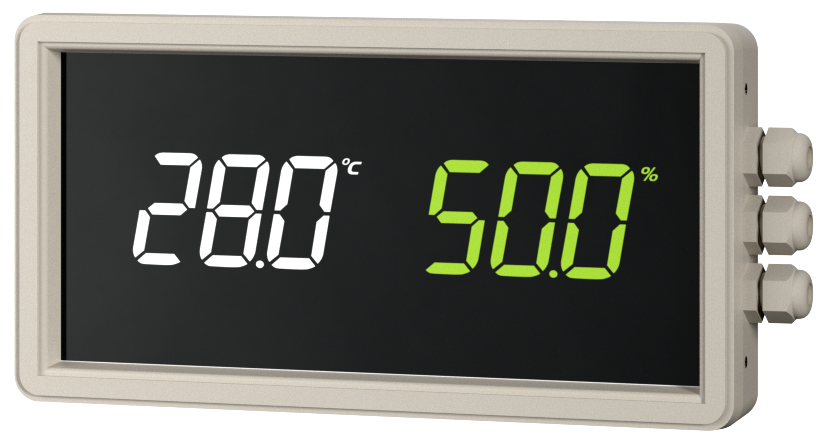

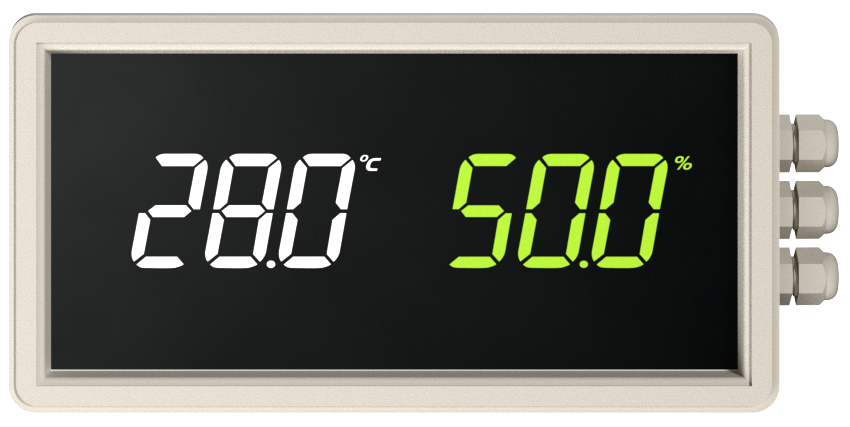

SZ-9940
Temperature & Humidity Indicator
Main Features
- 2" White Display for Temperature and 2" Green Display for Humidity
- Selectable Unit (°C / °F) and Resolution(0.1°C / 1°C ) for Temperature
- Selectable Resolution(0.1% / 1%) for Humidity
- Selectable Humidity Sensor-HS220/HS-100/4-20ma
- RS-485(Modbus RTU) Connectivity
- Applications: Cold Rooms, Pharma
Tech Specification
Display |
7 Segment LED Display(White), 3 x 50.8mm(2"), 7 Segment LED Display(Green), 3 x 50.8mm(2") |
Power Supply |
90 to 300 Vac |
Analog Input |
1. NTC, 2.RH Sensor(SZ-HS-220/SZ-HS-100/4-20mA) |
Measuring Range |
1. Temperature Range (-50.0°C to 99.0°C/-58°F to 210°F) 2. Humidity Range – (HS-220: 30.0 to 90.0% HS-100: 0.0 to 100.0%, 4-20mA: 0.0% to 100.0%) |
Resolution |
Temp: 0.1°C or 1°C, RH: 0.1% or 1% |
Size |
210(W) x 160(H) x 41(D)mm |
Mounting Type |
Wall Mount |

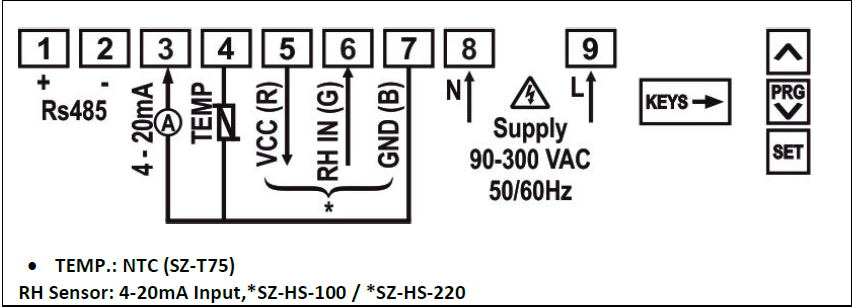

Wiring Diagram
