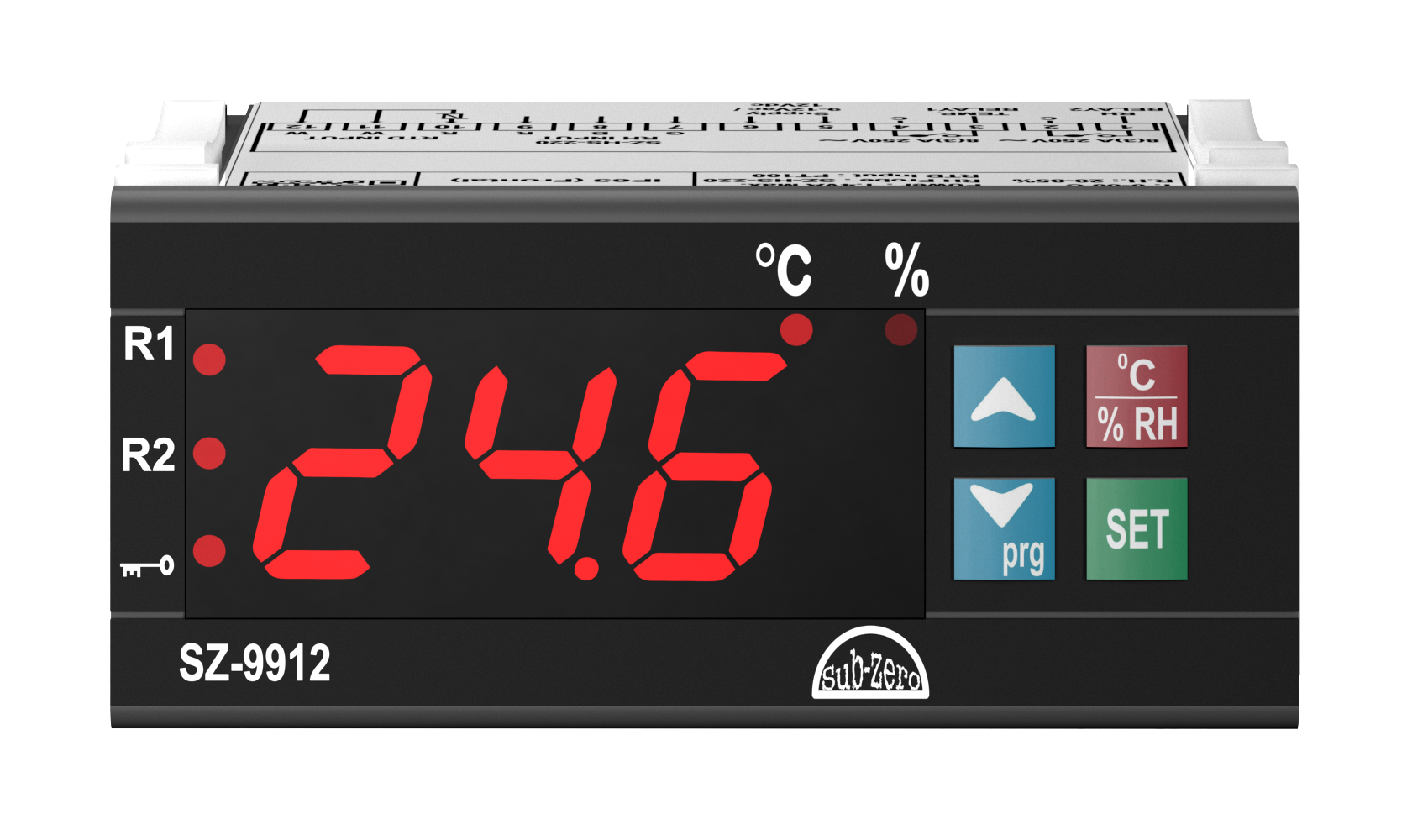

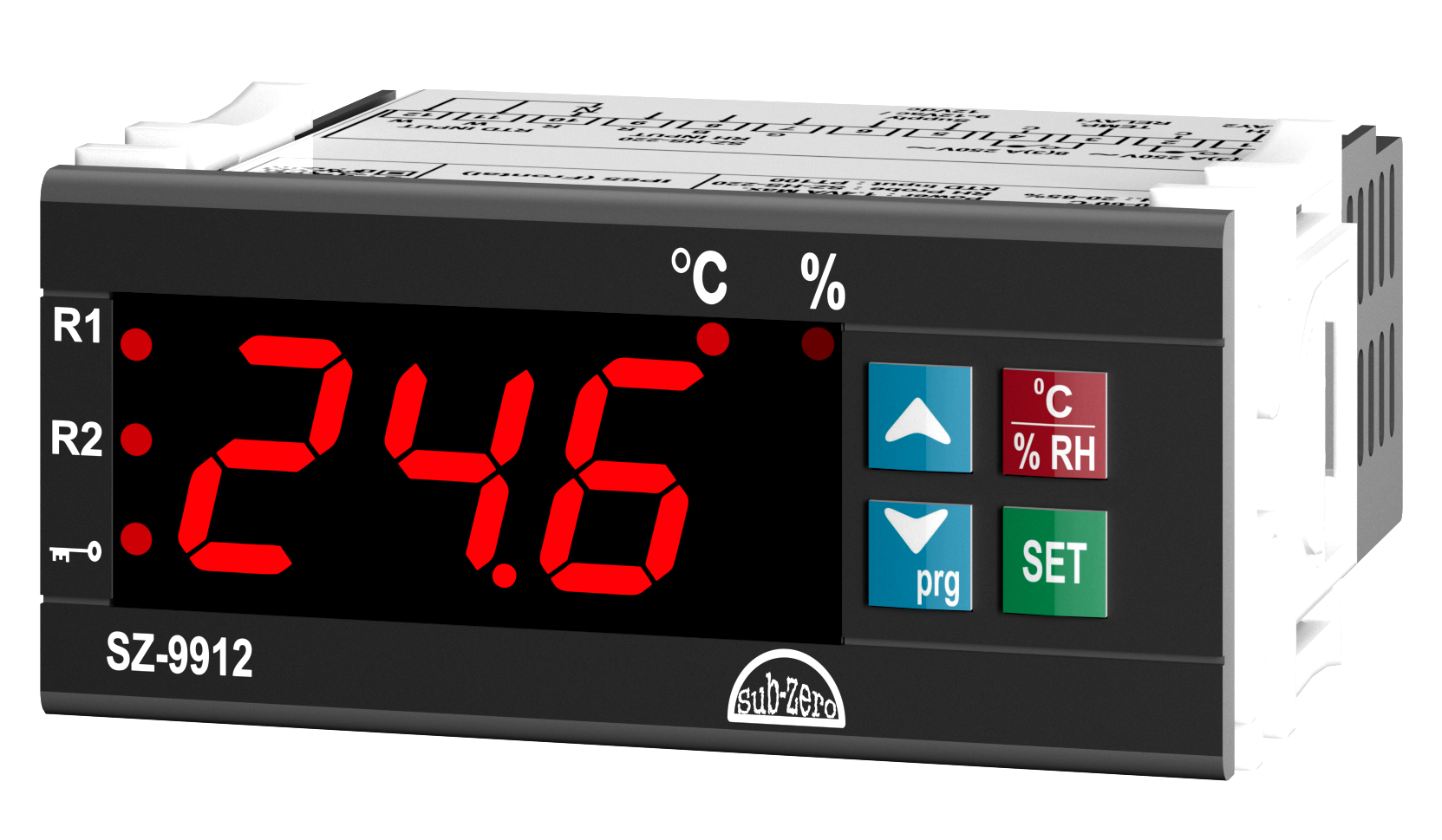

SZ-9912
Temperature & Humidity Controller
Main Features
- 30-90% RH Range
- Separate Relay Output for Controlling RH and Temperature
- Heating & Cooling Mode Selection
- Dehumidification & Humidification Mode Selection
- Selectable Display between RH, Temperature
- Applications: Food/Medical Packaging houses, Warehouses, Timber Industries, Curing Processes, Horticulture, Textiles Industries, Cold Storage, Greenhouses, Mushroom Cultivation Rooms
Tech Specification
Display |
7 Segment LED Display, 3 x 10mm (0.39") |
Power Supply |
9-12Vac or 12Vdc |
Probe Input |
RTD (PT100), RH Sensor(SZ-HS-220) |
Temperature Range |
0.0°C to 99.0°C |
Humidity Range |
30% to 90% |
Resolution |
Temperature: 0.1°C, Humidity: 1% |
Relay Output |
Relay1: TEMP: 8(3)A, Relay2: RH: 8(3)A |
Size |
75(W) x 34.5(H) x 80(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

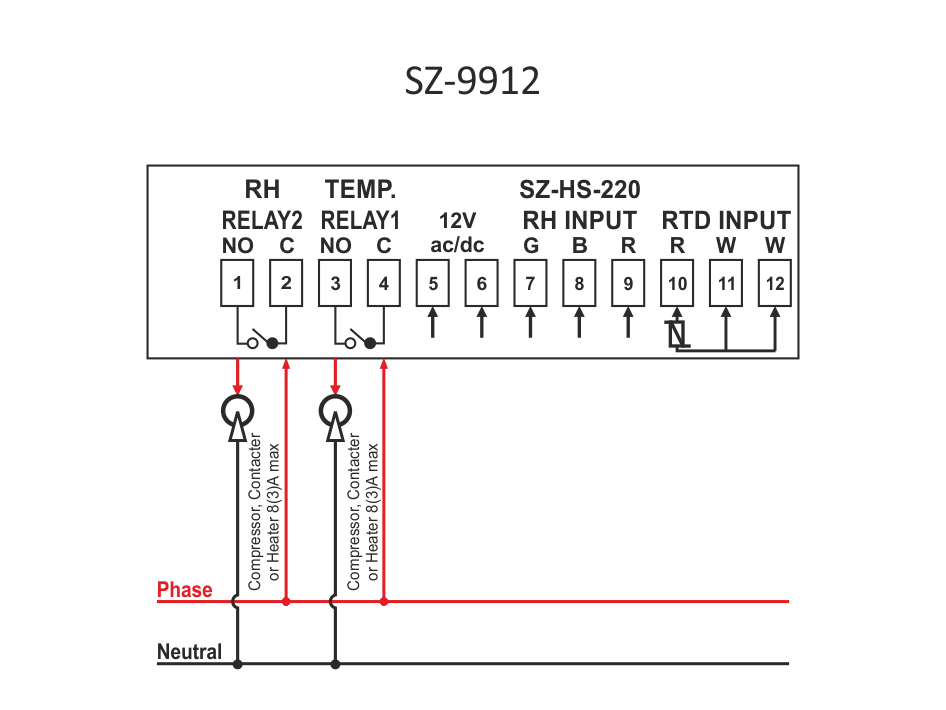

Wiring Diagram
