SZ-2711T
Humidity Controller
Main Features
- 30-90% RH Range
- Touch Sensitive Keypad
- Dehumidification & Humidification Mode Selection
- Auto Operation in case of Sensor Failure/Error
- High & Low Humidity Logs
- 0.1 Resolution for Precise Control
- Applications: Food / Medical Packaging houses, Warehouses, Timber Industries, Curing Processes, Horticulture , Textiles Industries, Cold Storage, Greenhouses , Mushroom Cultivation Rooms
Tech Specification
Display |
7 Segment LED Display, 3 x 17mm |
Power Supply |
230Vac |
Probe Input |
RH Sensor (SZ-HS-220) |
Humidity Range |
30.0% to 90.0% or 30% to 90% |
Resolution |
0.1% or 1% (Settable) |
Digital Input |
Potential Free: Auxiliary Fault |
Relay Output |
Relay 10A |
Alarm Output |
Alarm 5A |
Size |
78(W) x 36(H) x 59(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

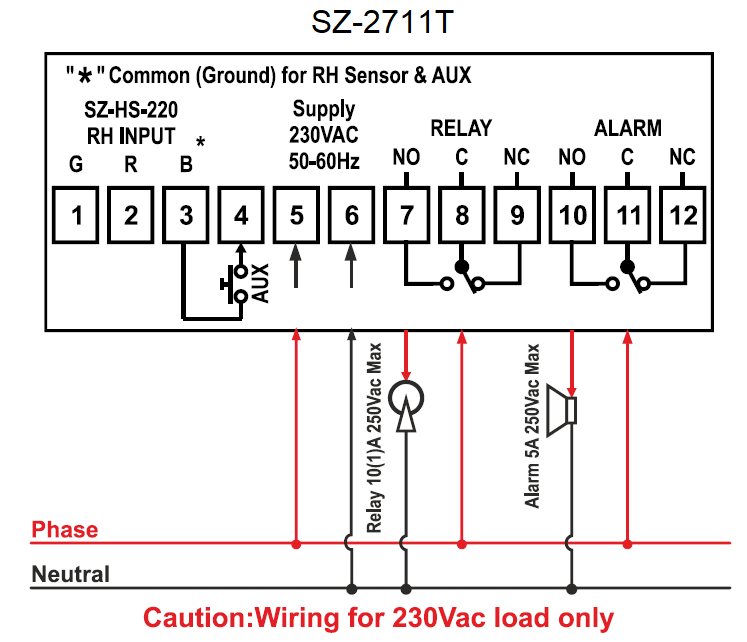

Wiring Diagram
