SZ-CR2-FP
Flame Proof 2 Compressor Controller for Medium Temperature Cold Room
Main Features
- 2 Digit, 1" Display
- Selectable Unit (°C/°F) for Temperature
- 2 Compressor Management
- Time based OFF Cycle Defrost
- Auto/Manual Defrost option available
- Alarm and Light Output
- HP/LP, SPPR fault Inputs for compressor protection
- Application: Medium (Positive) Temp. Cold Room
Tech Specification
Display |
7 Segment LED Display, 2 x 25.4mm (1") |
Power Supply |
230Vac |
Probe Input |
NTC |
Temperature Range |
-45°C to 35°C or -49°F to 95°F |
Resolution |
1°C or 1°F (Settable) |
Digital Input |
Potential(230V): HP1/SPP1, LP1, HP2/SPP2, LP2 |
Relay Output |
Compressor1 5A, Compressor2 5A, Light 5A |
Alarm Output |
Alarm 5A |
Mounting Type |
Wall Mount |

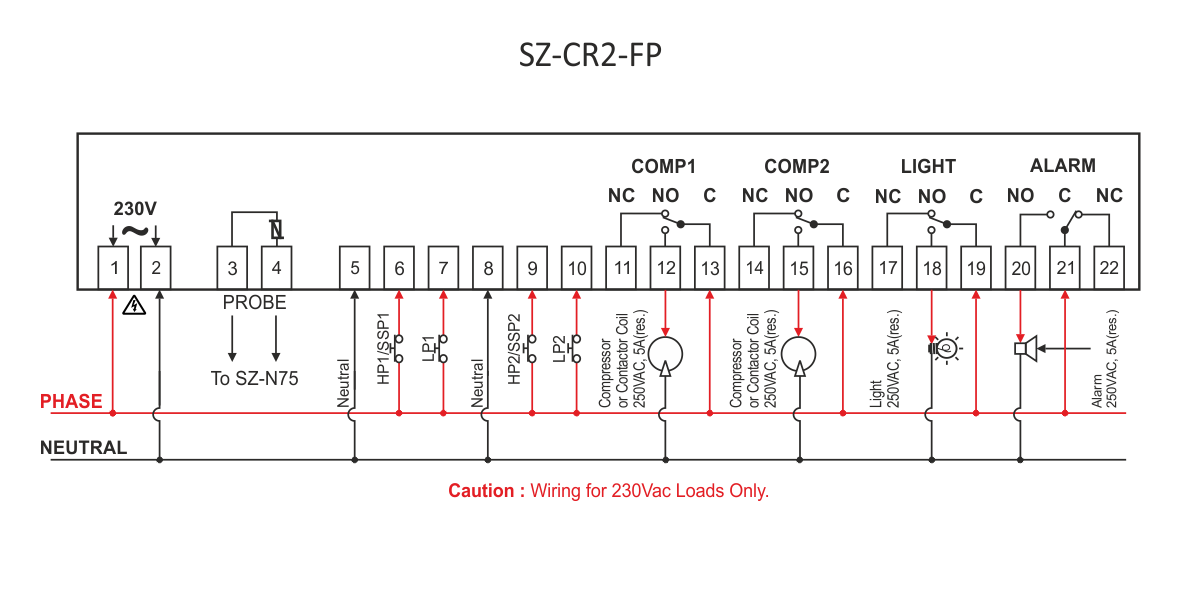

Wiring Diagram
