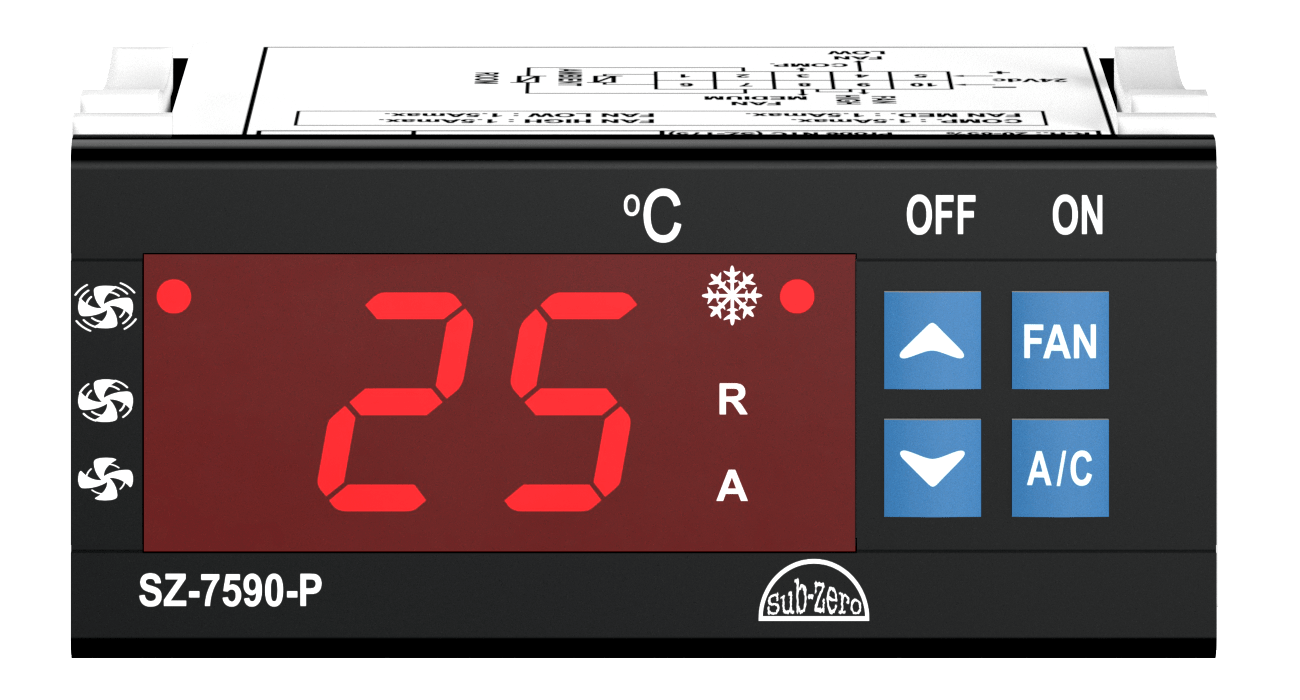

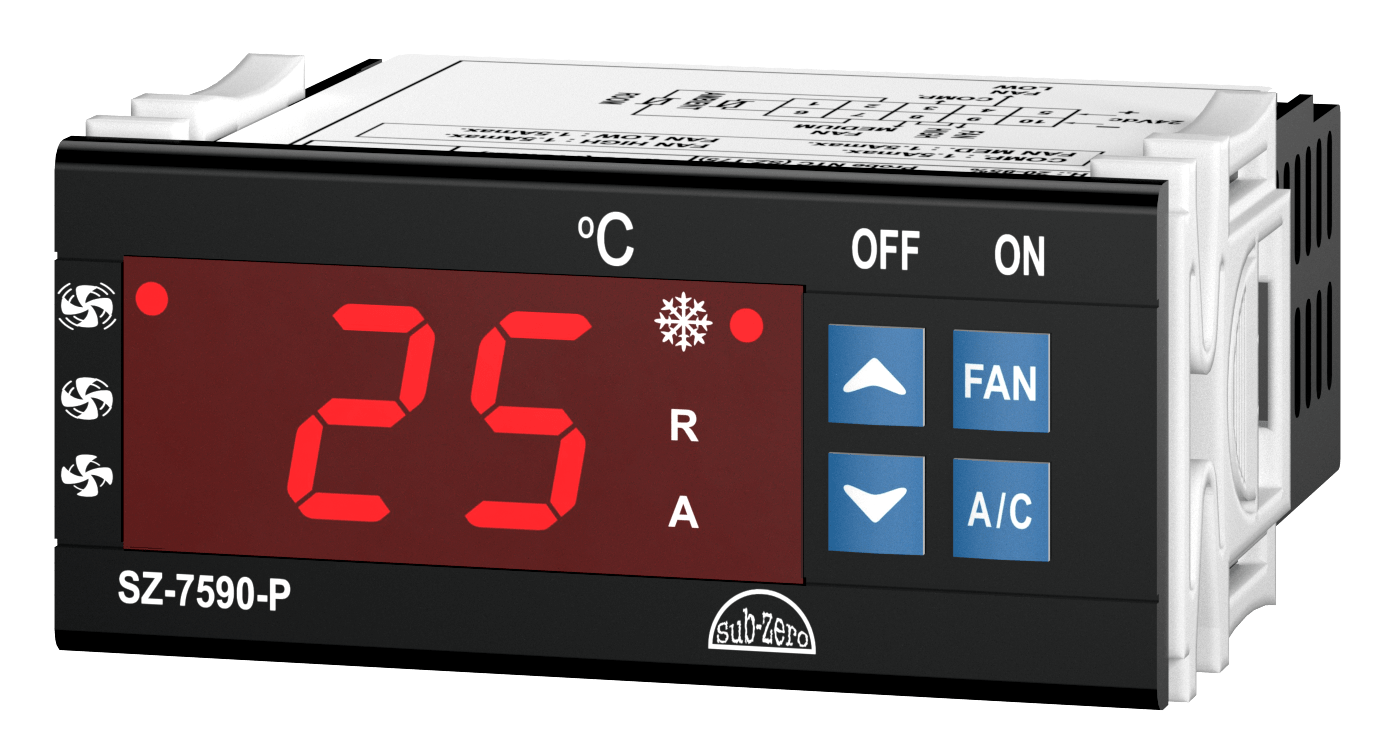

SZ-7590-P
Temperature Controller - Bus A/C
Main Features
- Three Fan Speed & One Cooling output
- Cooling Mode Enable/Disable
- Application: Bus Air Conditioning
Tech Specification
Display |
7 Segment LED Display, 2 x 14.2mm (0.56") |
Power Supply |
12Vdc or 24Vdc |
Probe Input |
2 NTC |
Temperature Range |
0°C to 70°C |
Resolution |
1°C |
Output |
12Vdc/24Vdc, 100mA (Comp, Fan: Low, Medium & High) |
Size |
78(W) x 36(H) x 80(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

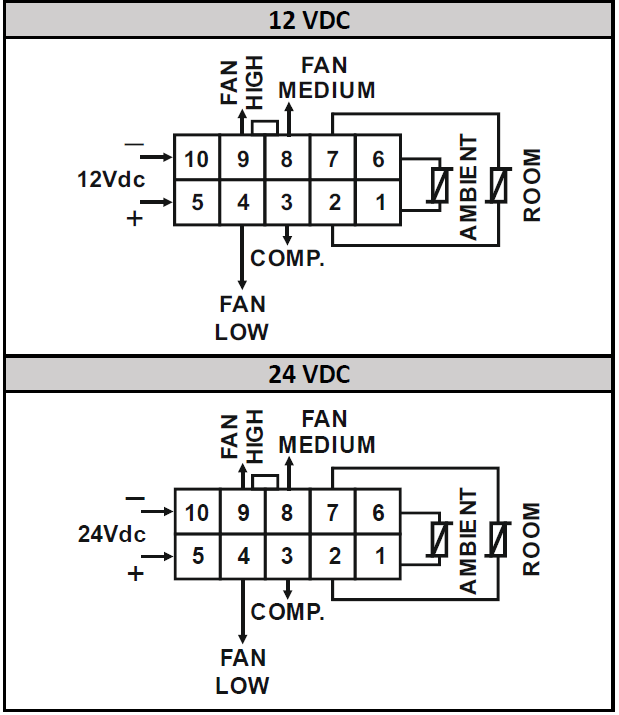

Wiring Diagram
