SZ-7516T
Temperature Controller for Blood Bank
Main Features
- Provision for Rechargeable Battery Input & Low Battery Indication
- Cooling, Cooling with OFF Cycle Defrost & Heating Mode Selection
- Auto/Manual Defrost option available
- Intelligent time delay added to avoid the Long OFF condition of compressor due to Power OFF and P6 Parameter.
- 0.1 Resolution for Precise Control
- Selectable Unit (°C/°F) and Resolution(0.1°C/1°C ) for Temperature
- Prokey to Upload / Download Parameters
- Settable ON & OFF time delay for Compressor Protection
- Touch Sensitive Keypad
- Auto Operation in case of Sensor Failure/Error
- High & Low Temperature Logs
- External Buzzer for Faults
- Application: Blood Bank
Tech Specification
Display |
7 Segment LED Display, 3 x 17mm |
Power Supply |
10-12Vac/12Vdc |
Probe Input |
NTC |
Temperature Range |
-30.0°C to 50.0°C or -30°C to 50°C or -22°F to 122°F |
Resolution |
0.1°C or 1°C or 1°F (Settable) |
Relay |
Compressor Relay 8(3)A |
Alarm Output / Buzzer |
External Buzzer |
Battery Backup |
Yes |
Size |
78(W) x 36(H) x 80(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

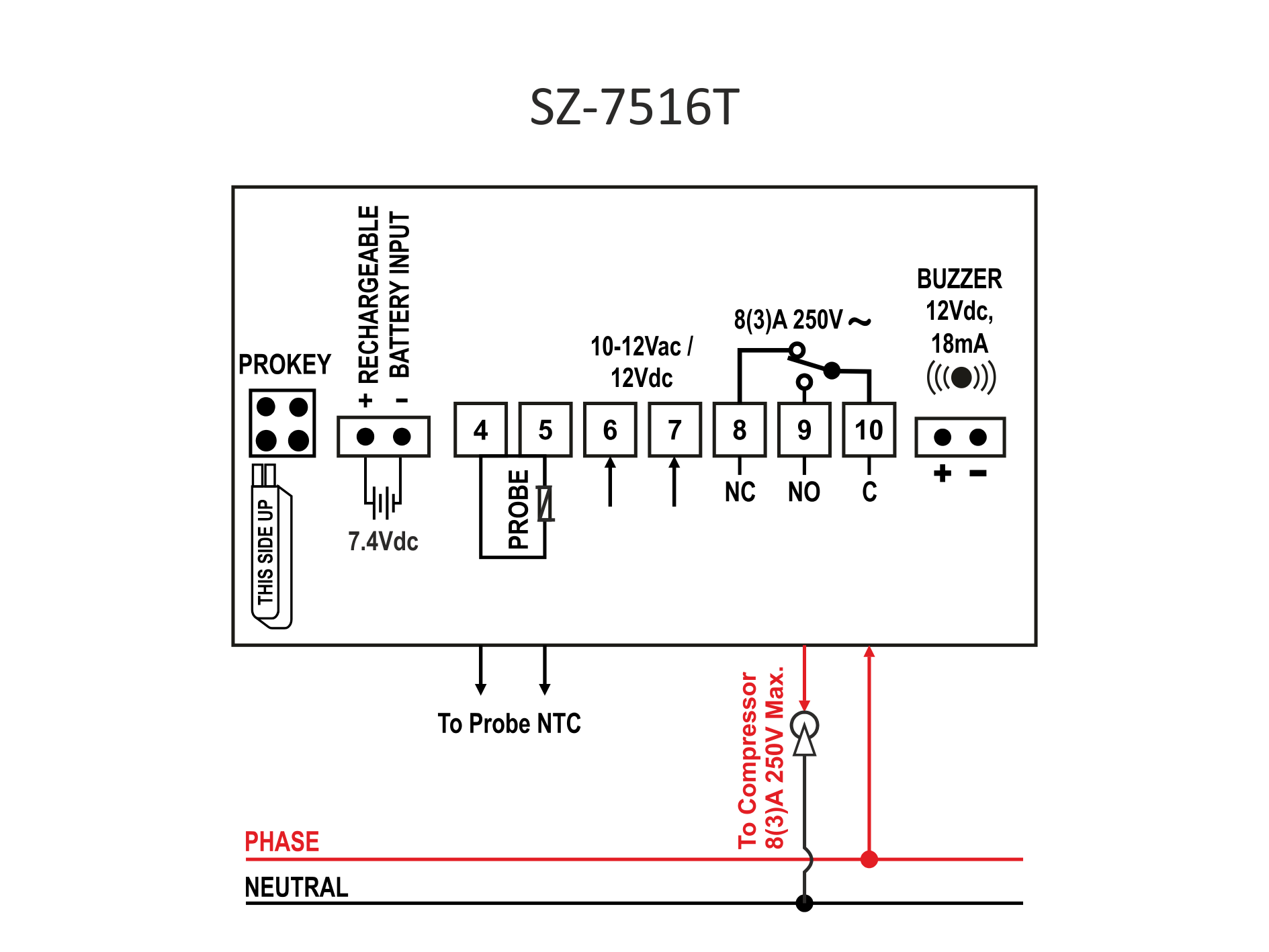

Wiring Diagram
