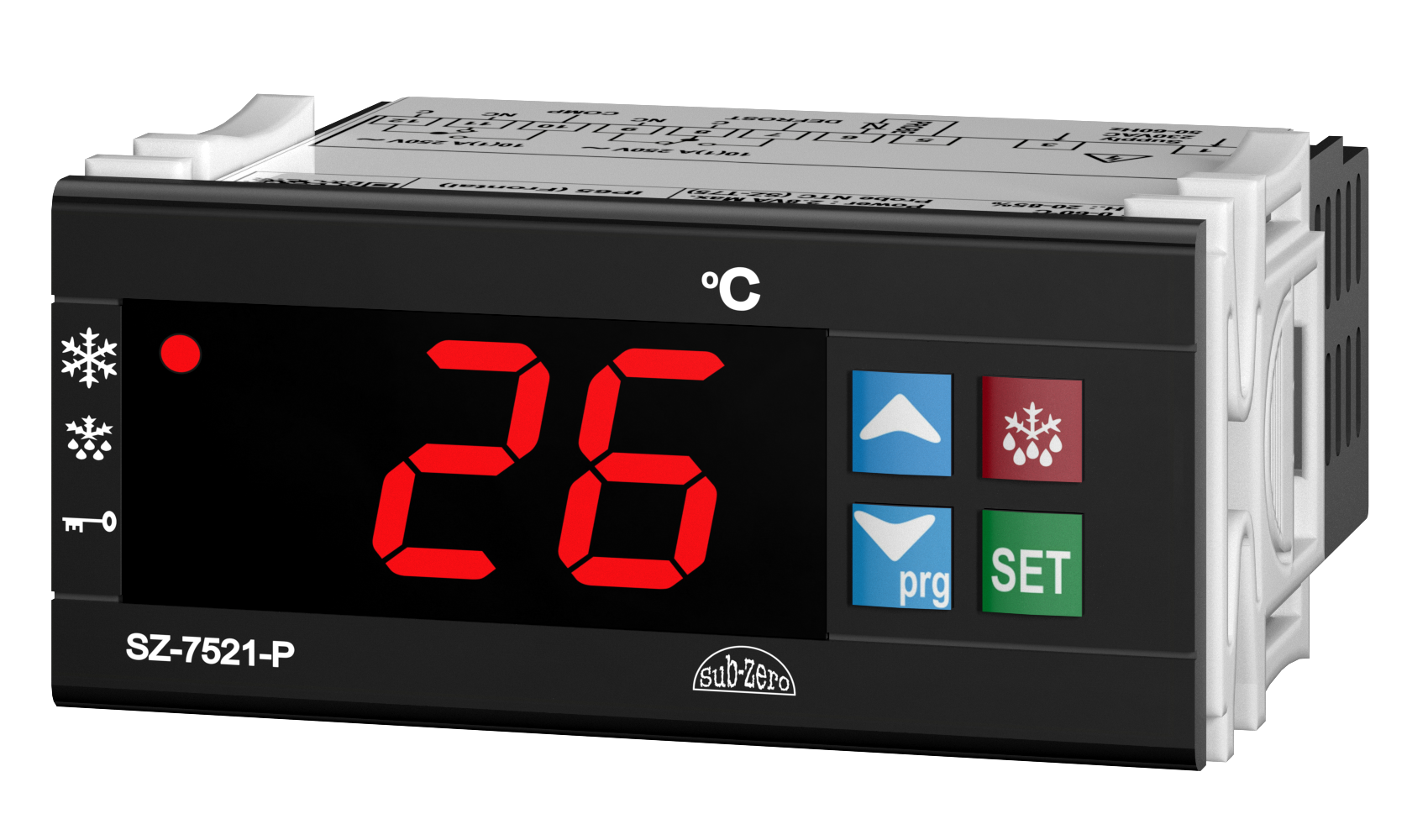

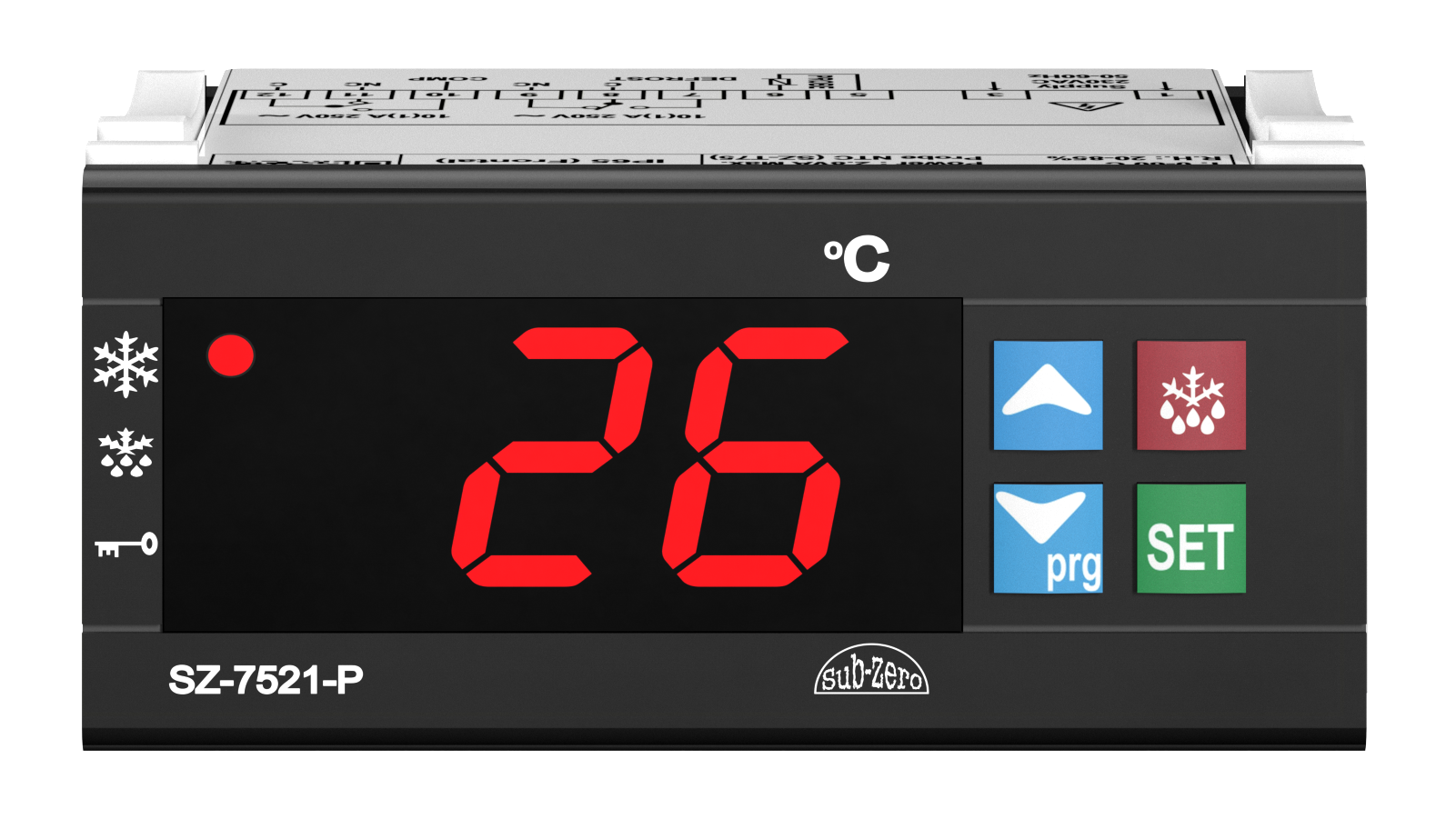

SZ-7521-P
Temperature Controller - Air Dryer
Main Features
- Selectable Defrost type Electrical, Hot Gas or Air Dryer
- Auto/Manual Drain Valve/Defrost option available
- Time based operation of Drain Valve/Defrost Output
- Drain Valve/Defrost Output ON time settable in Minutes and Seconds
- Drain Valve/Defrost Output OFF time settable in Hours and Minutes
- Auto Operation in case of Sensor Failure/Error
- Application: Air Dryer
Tech Specification
Display |
7 Segment LED Display, 2 x 14.2mm (0.56") |
Power Supply |
230Vac |
Probe Input |
NTC |
Temperature Range |
-44°C to 99°C |
Resolution |
1°C |
Relay Output |
Compressor 10(1)A, Defrost 10(1)A |
Size |
75(W) x 34.5(H) x 80(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |

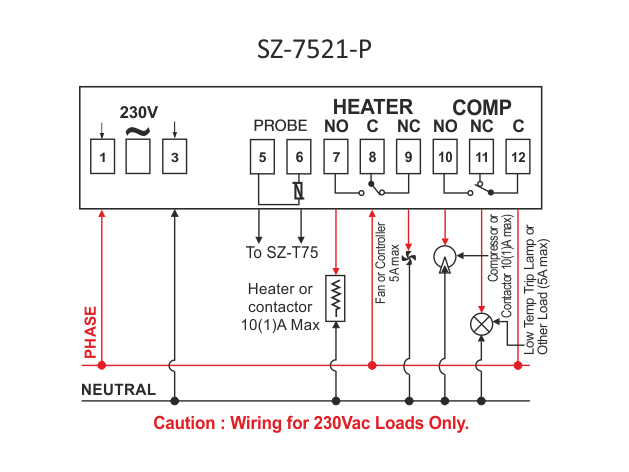

Wiring Diagram
