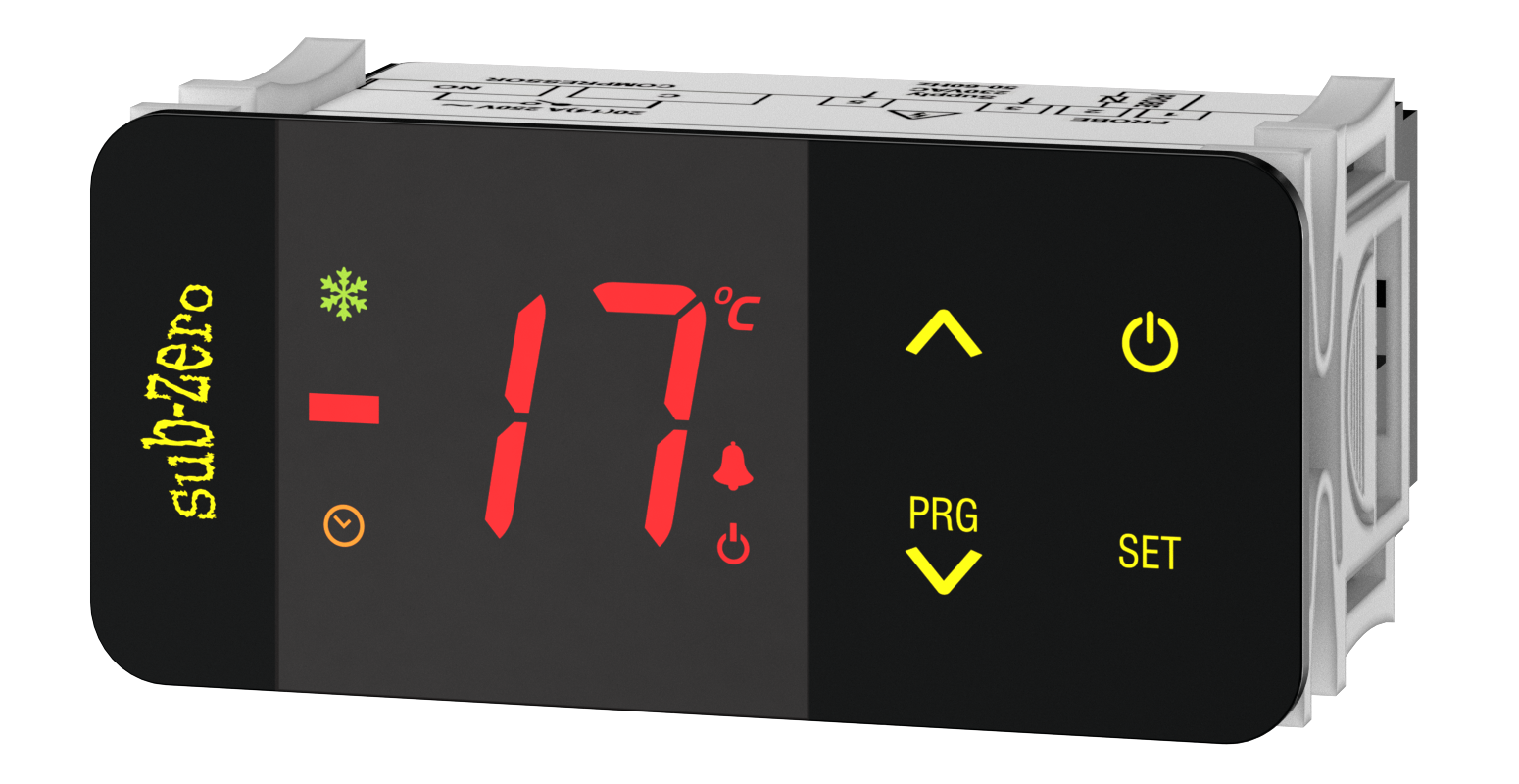

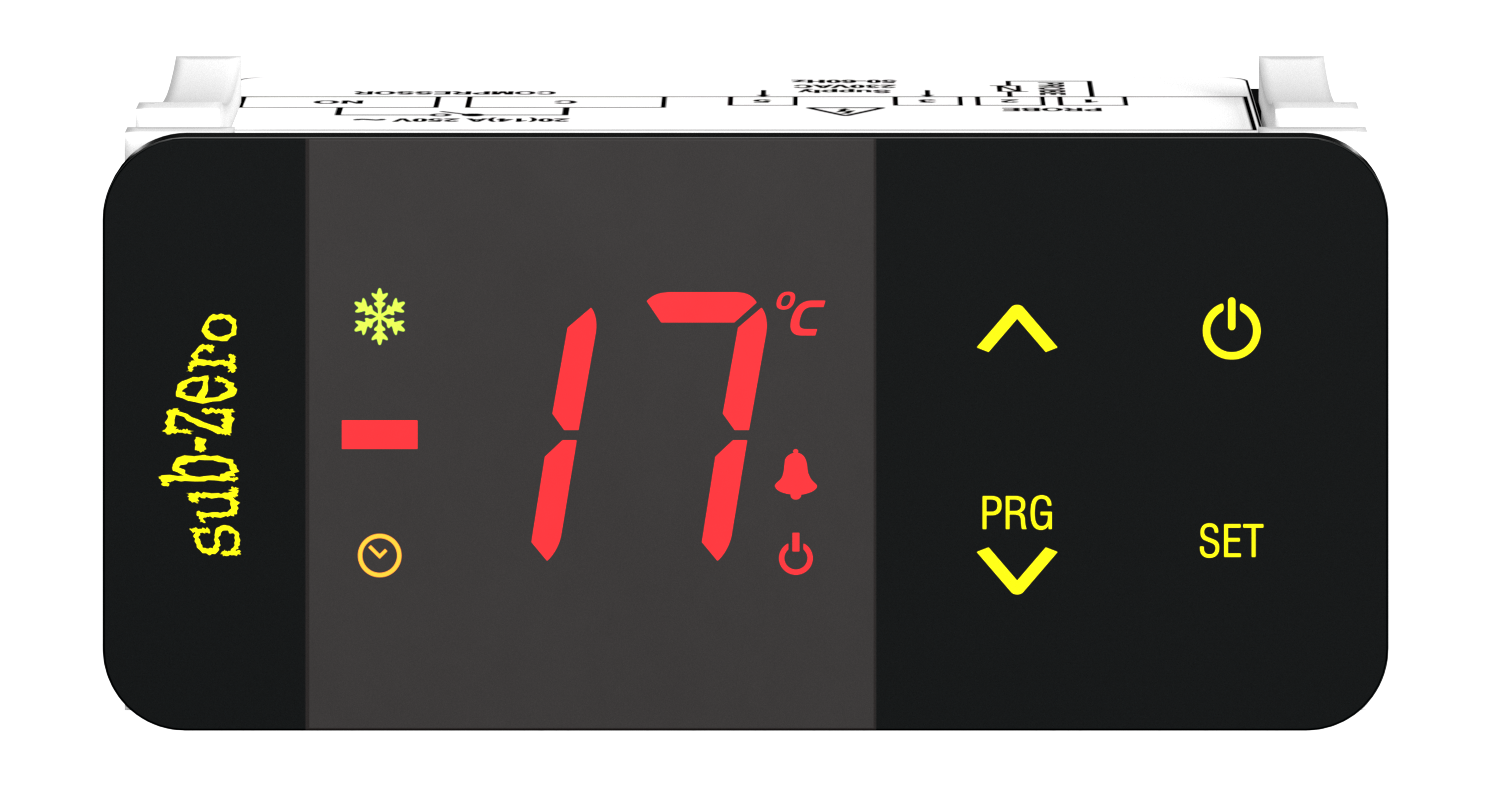

SZ-7569T
Temperature Controller- 20(14)A Relay
Main Features
- Touch Sensitive Keypad
- Cooling & Heating Mode Selection
- Settable ON & OFF time delay for Compressor Protection
- Password Protection for Parameters
- Auto Operation in case of Sensor Failure/Error
- High & Low Temperature Logs
- Power OFF through Touch Key
- Applications: General appliances like Deep Freezers, Display Cabinet, Pastry Cabinet and small Chillers
Tech Specification
Display |
7 Segment LED Display, 2 x 17mm |
Power Supply |
230Vac |
Probe Input |
NTC |
Temperature Range |
-45°C to 99°C |
Resolution |
1°C |
Relay Output |
Compressor 20(14)A |
Size |
78(W) x 36(H) x 59(D)mm |
Mounting Type |
Panel Mount |
Cut Out |
71 x 29mm |
Wiring Diagram
