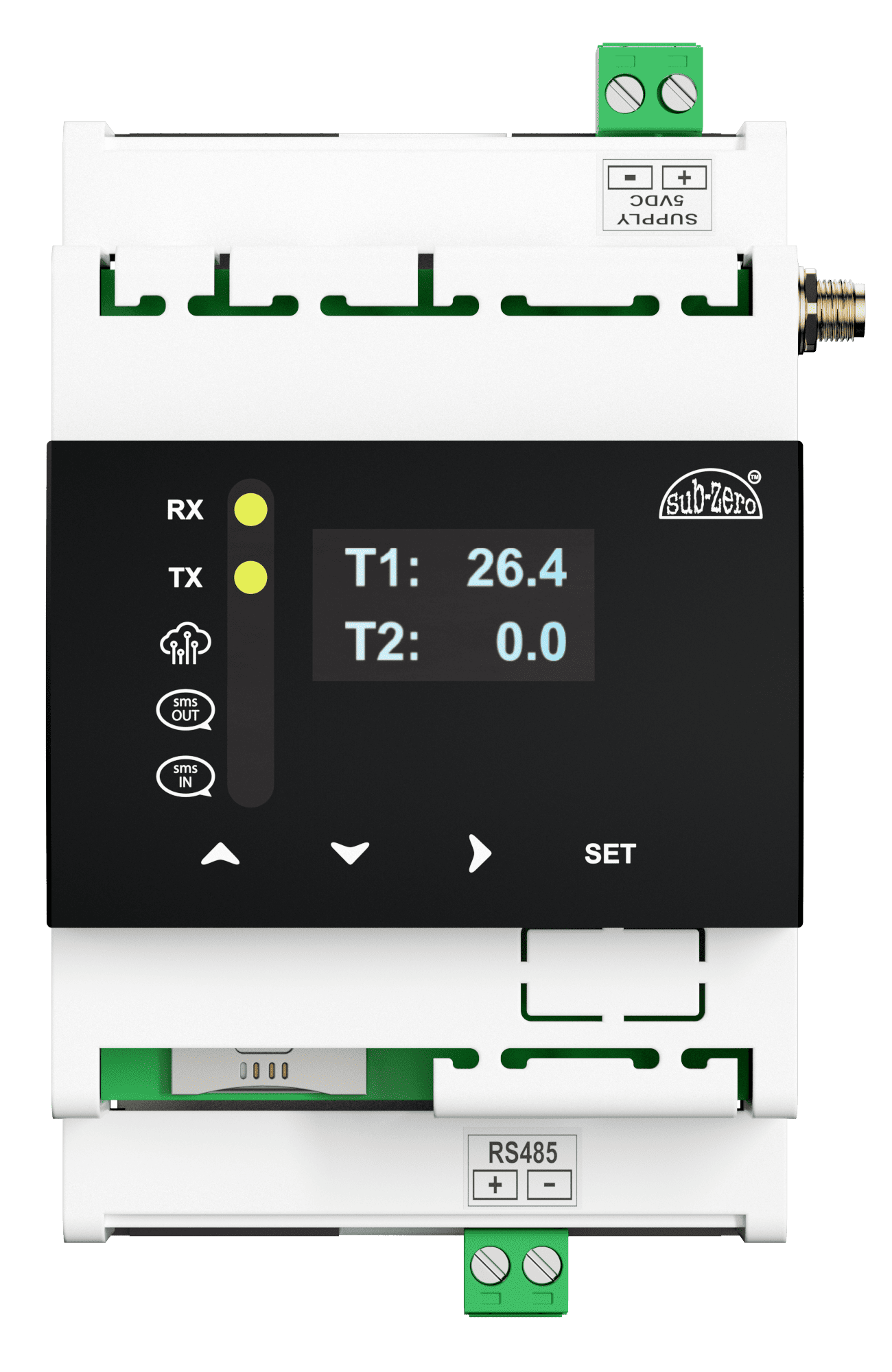

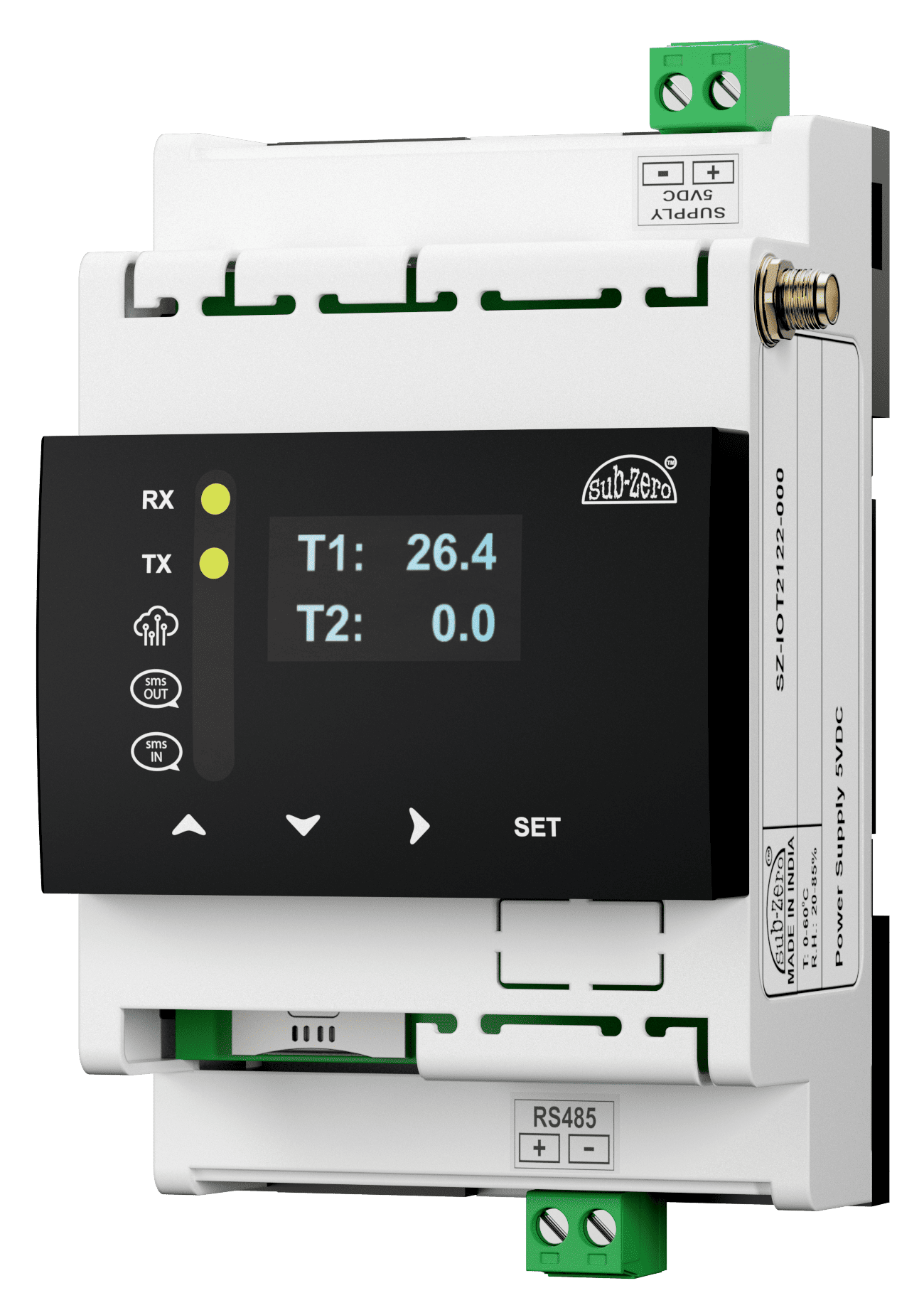

SZ-IOT2122-000
Module to communicate with Cloud Based Monitoring System
- Accessibility : 24 x 7 Access over web portal and mobile app to view real-time status
- Dashboard : List view and 24 Hrs. Graph gives easy summarized display of connected devices
- Data Downloading : Reports in pdf or csv format , Scheduled Email Reports
- Notifications : Alert notifications through SMS and Email
- Historical data : For analysis and audit purposes with given selection of time/date interval
- Data Security : System is protected with User ID and password to prevent unauthorized use
Specification
01/
OLED
OLED Display
02/

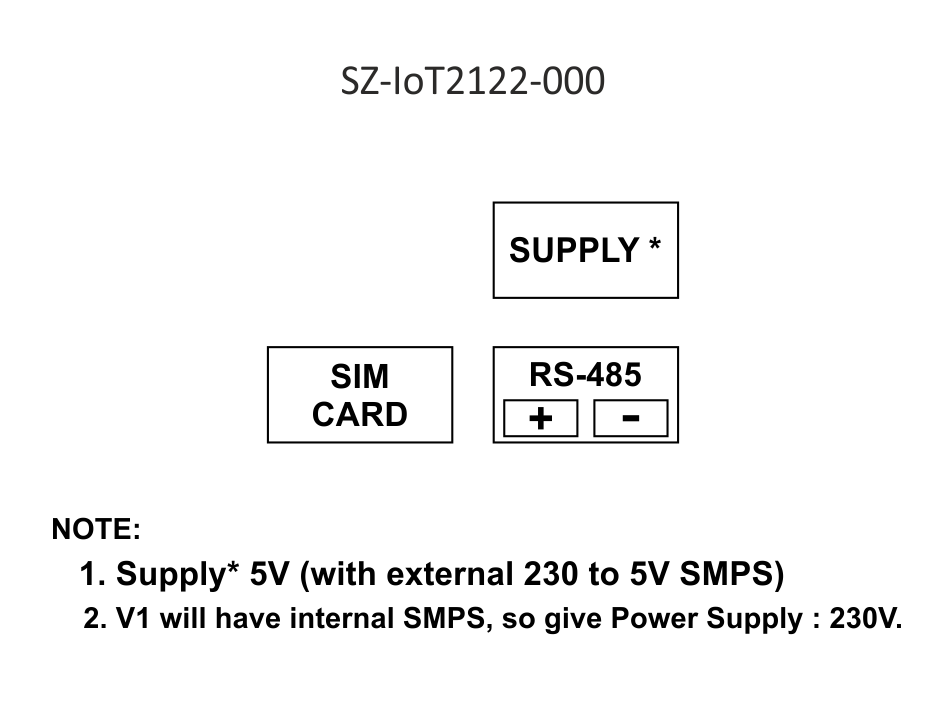

Power Supply
5 VDC (External 5 VDC SMPS or 5 Vdc Adapter provided on request)
03/
Connectivity
GSM Modem 2G Network
04/
Protocol
MQTT
05/
Data Logs
Minimum 5min
06/
Storage
All data will be saved on AWS CLOUD for last 6 months. After 6 months FIFO will be applied.
07/
Housing
70(W) x 110(H) x 59(D)mm
08/

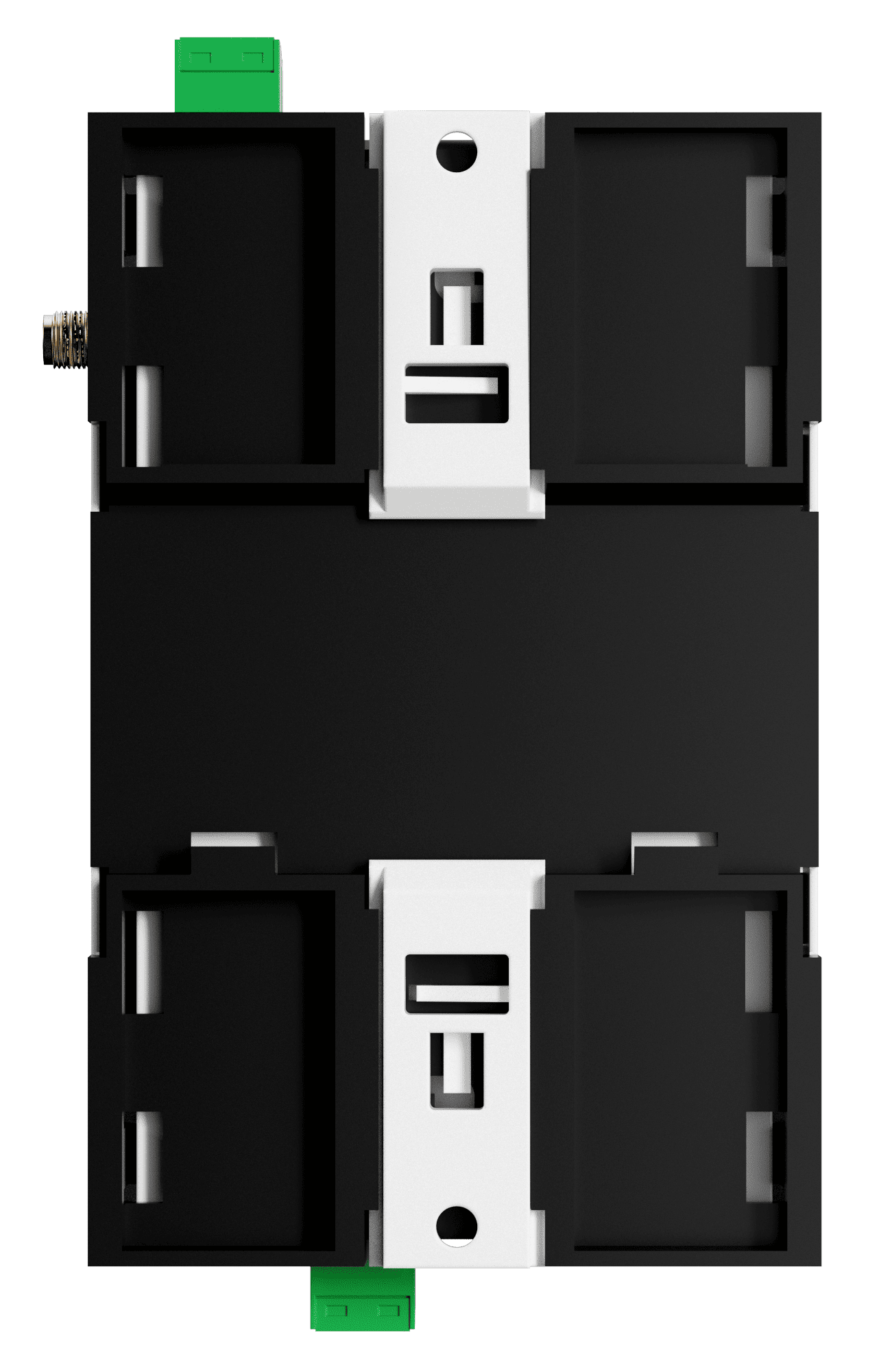

Mounting Type
Din rail Mount
