Temperature, Humidity & Pressure Indicator
- 2″Display
- Selectable Unit (°C/°F) and Resolution(0.1°C/1°C ) for Temperature
- Selectable Resolution(0.1%/1%) for Humidity
- Selectable Input Humidity/Pressure for 4-20ma
- Selectable Humidity Sensor-HS220/HS-100/4-20mA
- Settable Range for Pressure Sensor
- Applications: Cold Rooms, Pharma
Specification
01/
7 Segment

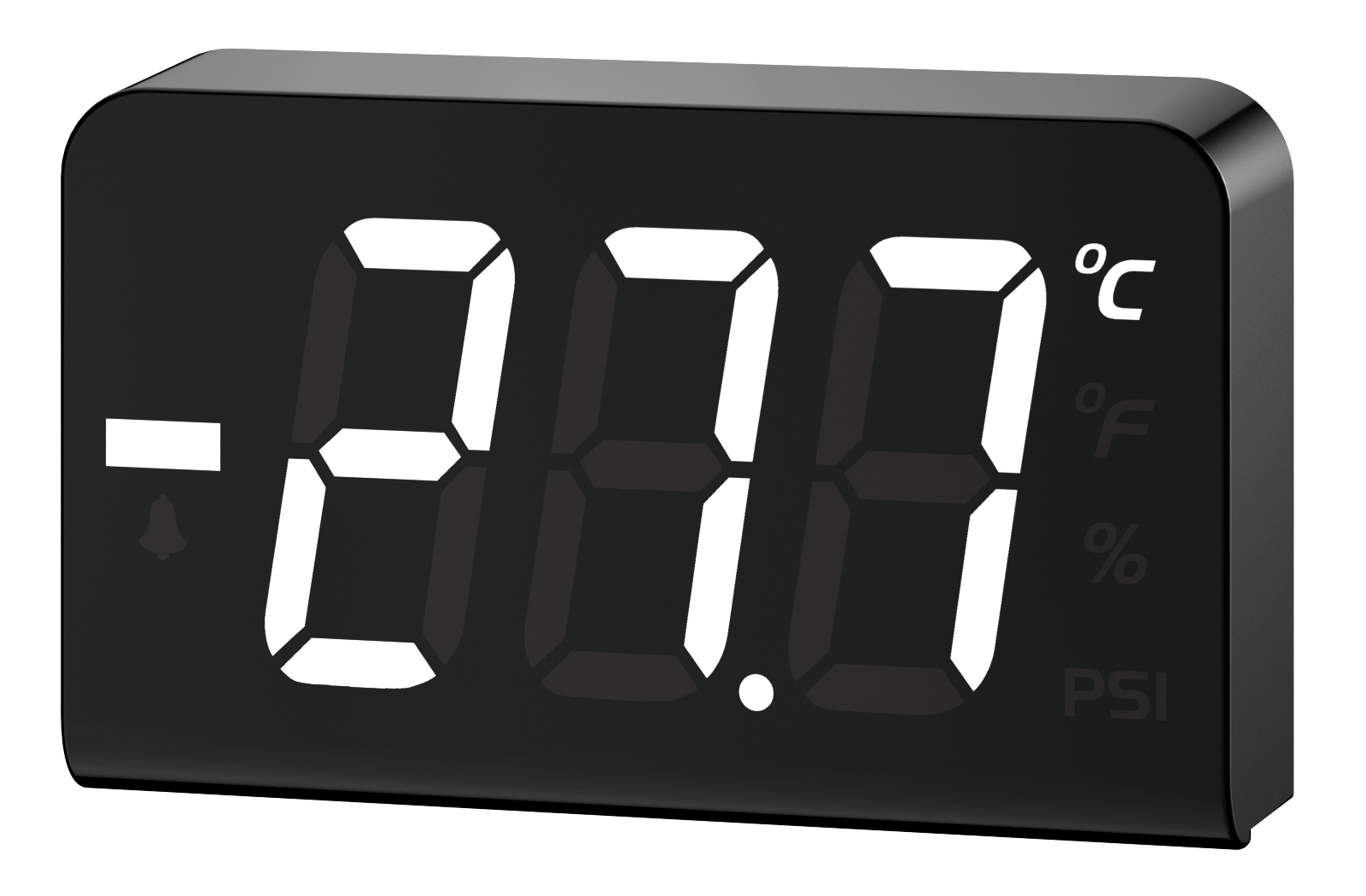

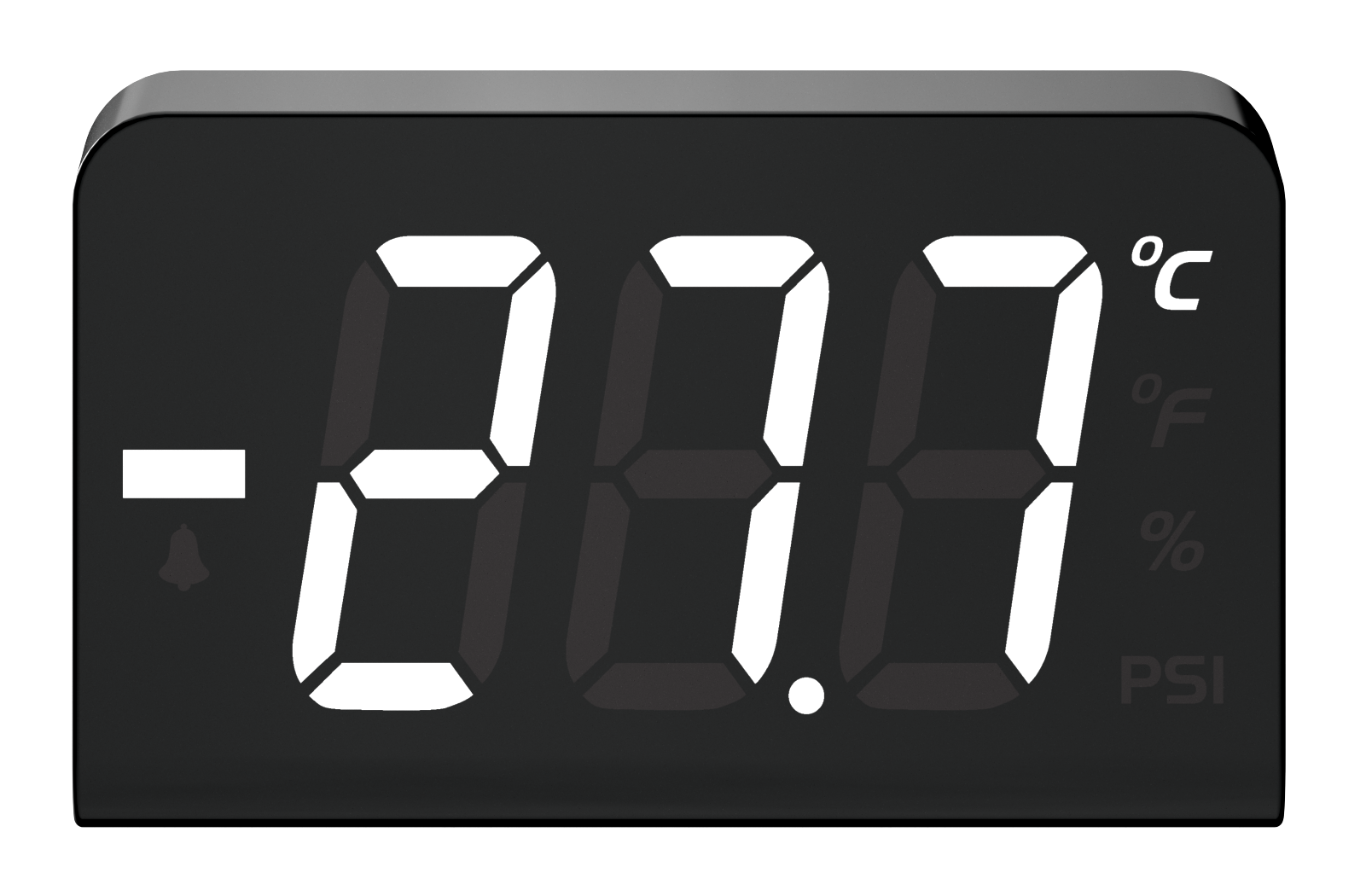

7 Segment LED Display, 3 x 50.8mm (2″)
02/
Power Supply
230Vac
03/

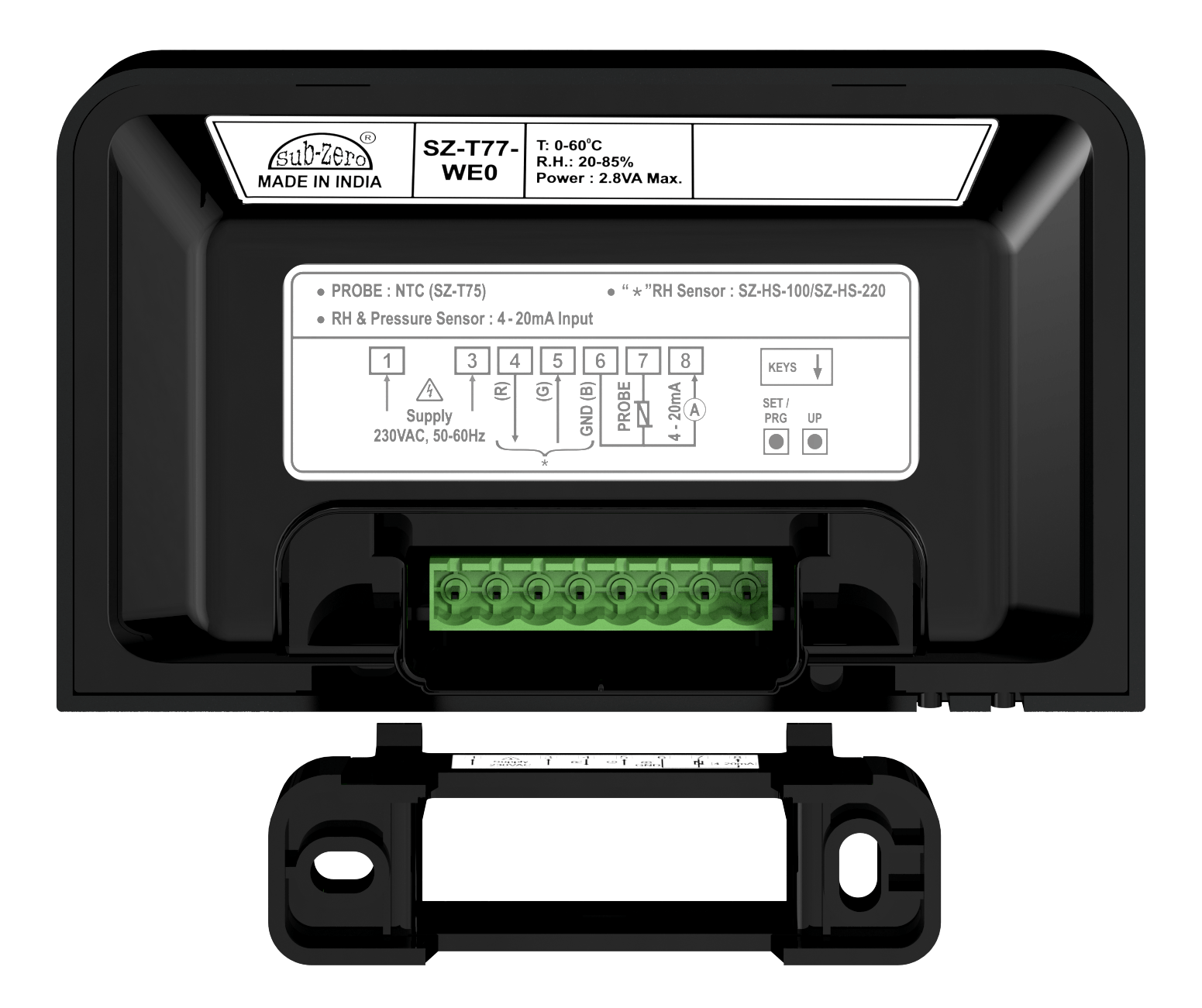

Input
Probe: NTC, RH, Pressure
04/
Range
Temp Range: -50.0°C to 100°C/-58°F to 212°F, RH Range1:SZ-HS-100: 0% to 100%, RH Range2:SZ-HS-220: 30% to 90%, RH Range3:4-20mA Input: 0% to 100%, Pressure Range: 4-20mA Input : –15 PSI to 600 PSI (Selectable)
05/
Resolution
Temp: 0.1°C / 1°C / 1°F(Selectable), RH: 0.1% / 1% (Selectable), Pressure: 1 PSI
06/
Housing
130(W) x 79(H) x 51(D)mm
07/
Mounting Type
Wall Mount
