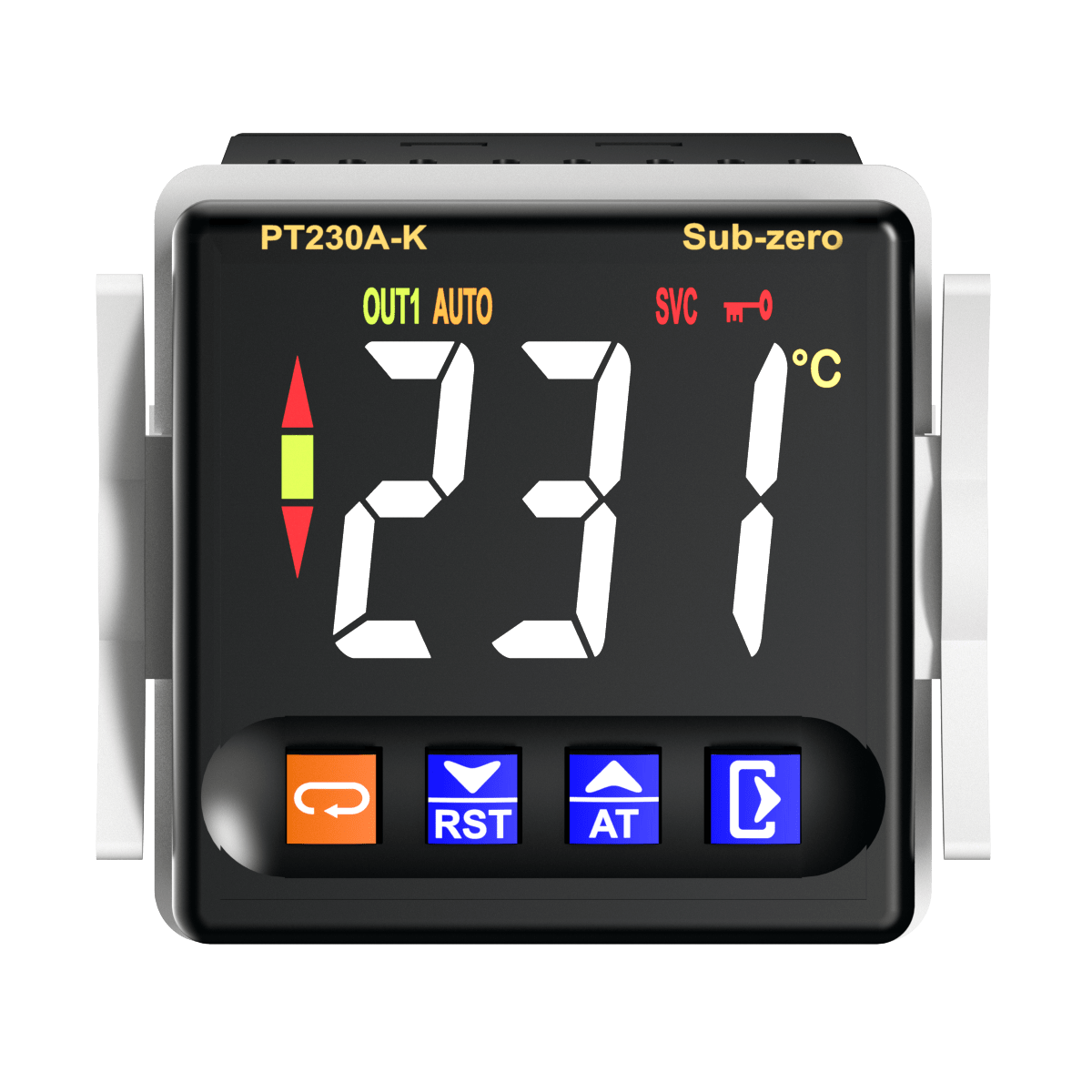

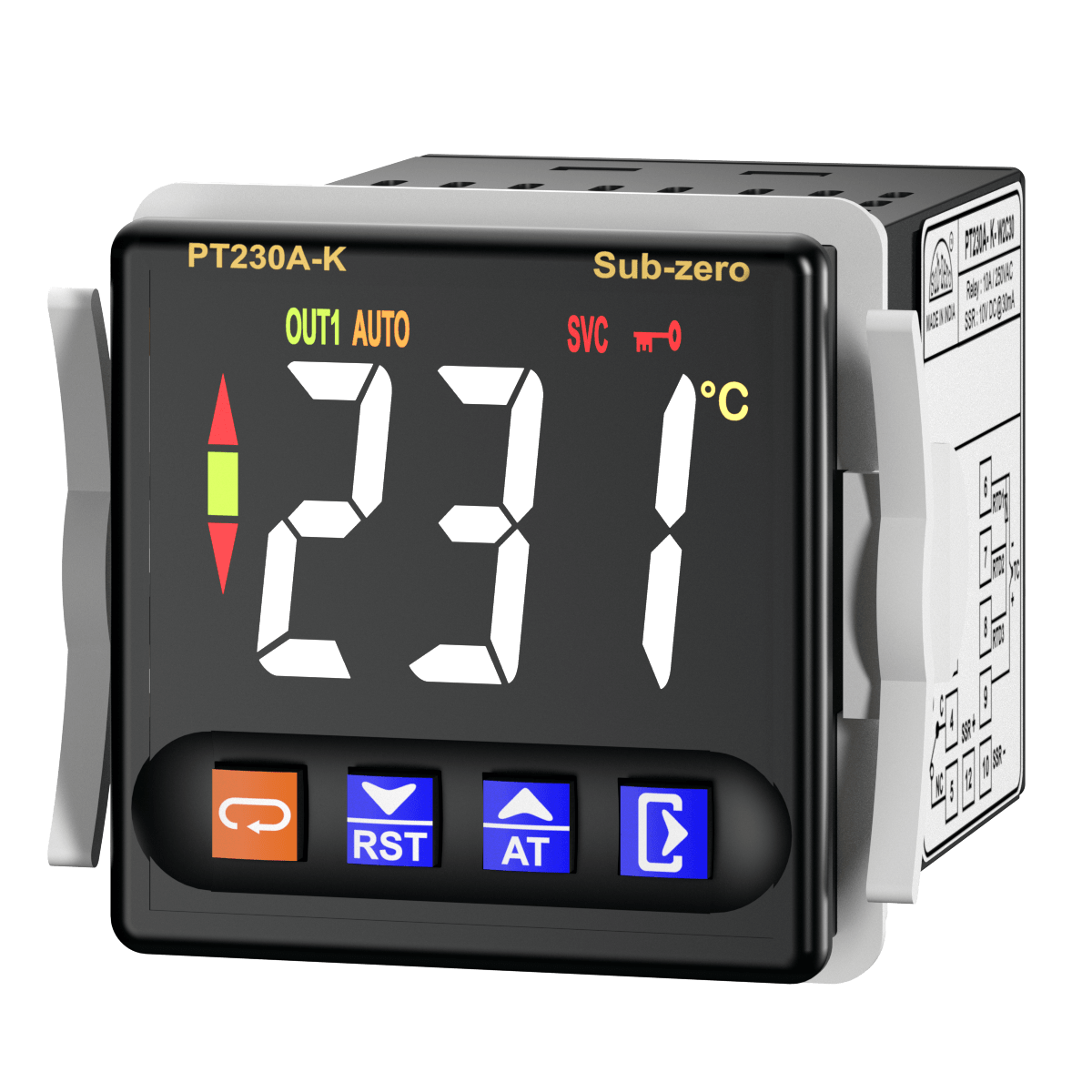

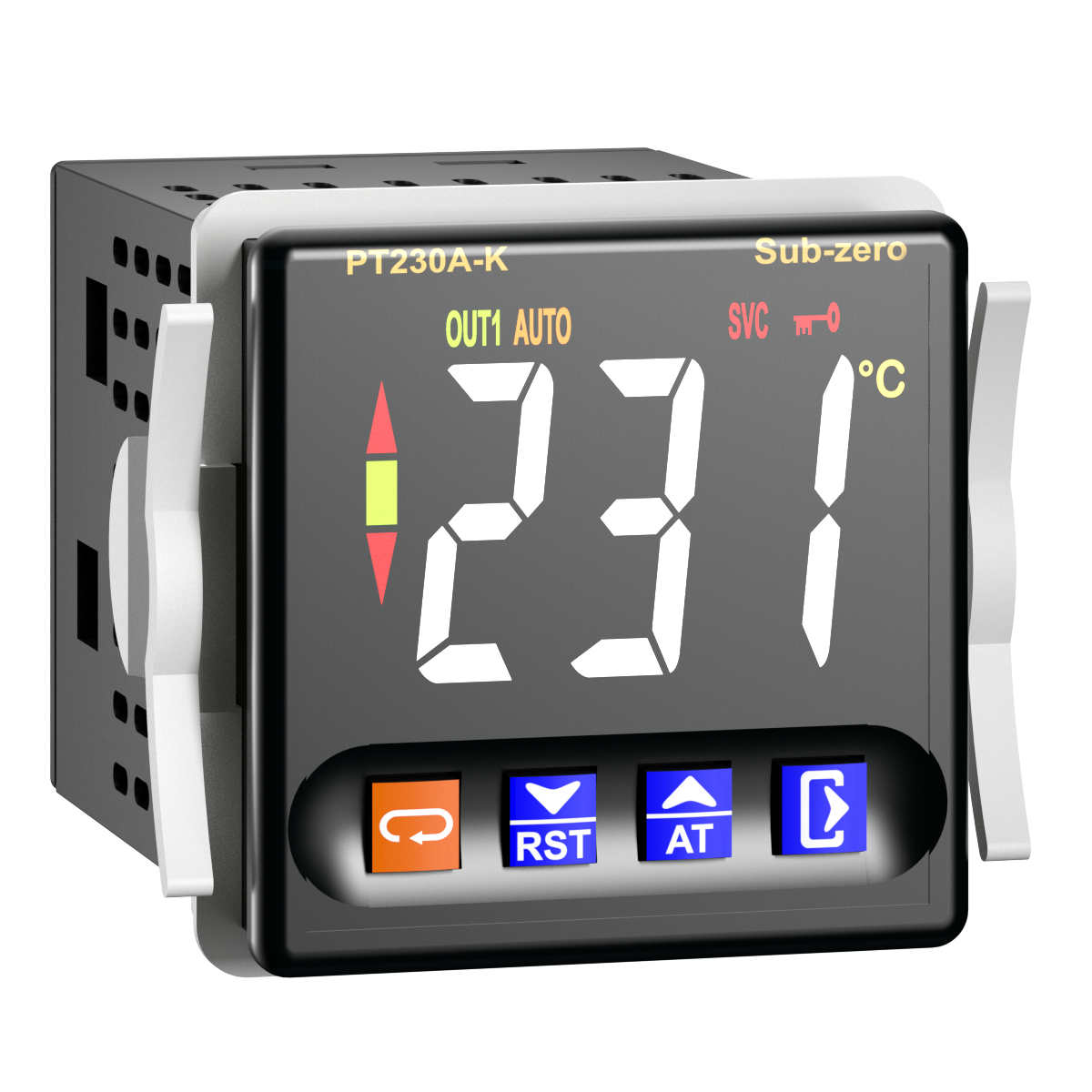

Single Line PID
- J, K, PT100 input supported
- Relay/SSR field configurable
- PID/ON-OFF function available
- Auto tuning available
- Customized display with large LEDs
- Application: Furnaces, Packaging Machines, Chemical Processes, Food, Heating and other similar applications
Specification
01/
Display
7 Segment LED Display(Red/White), 3 x 20mm
02/
Power Supply
230 Vac, ± 10%, 50/60Hz
03/

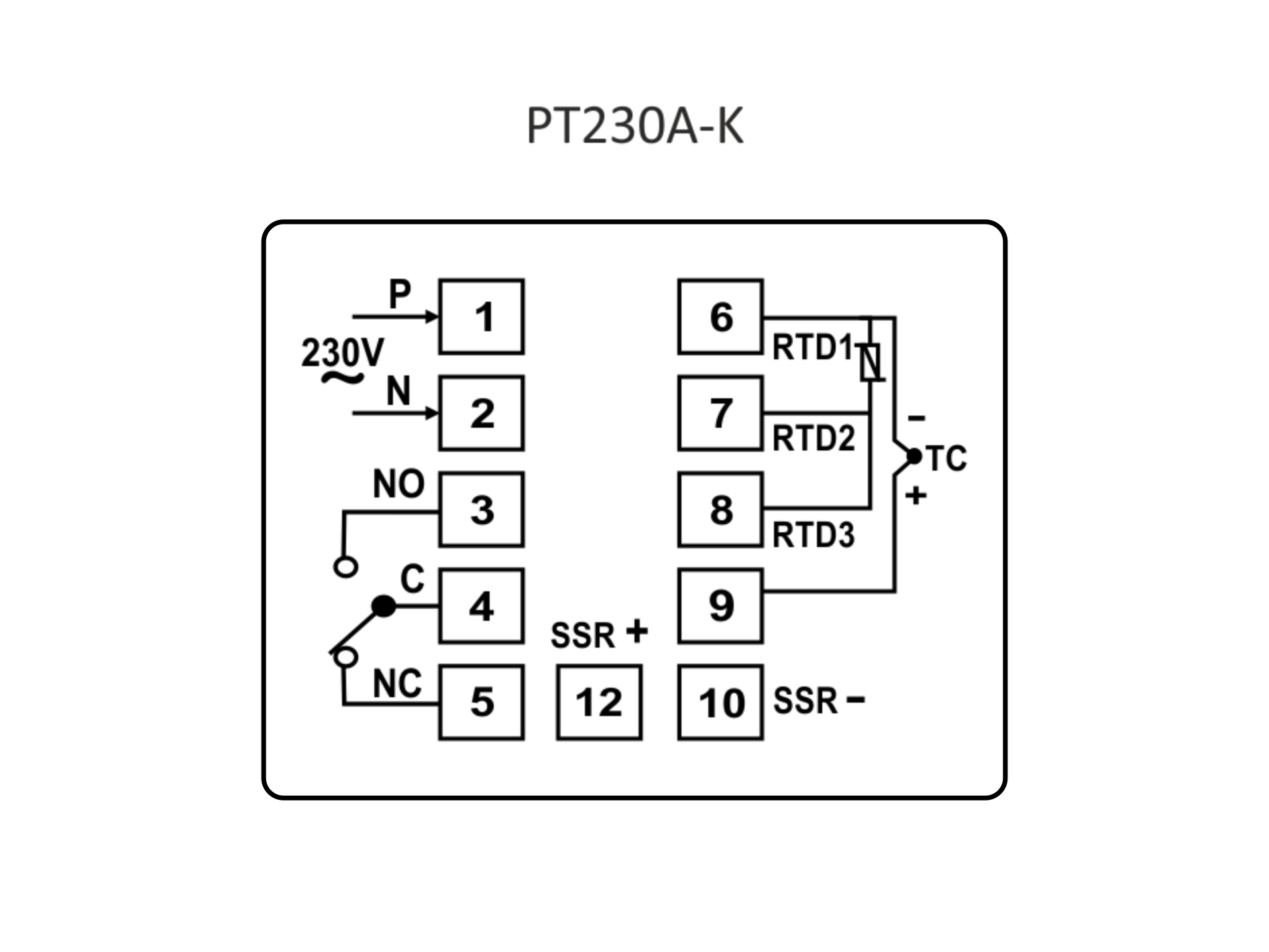

Probe Input
Thermocouple (J,K) / RTD (PT 100)
04/
Temperature
RTD(PT100) : -99°C to 400°C / -9.9°C to 99.9°C, TC (J Type): -50°C to 750°C TC (K Type): -50°C to 999°C
05/
Resolution
RTD(PT100): 0.1°C or 1°C (Settable), TC (J,K) : 1°C
06/
Accuracy
RTD(PT100): ±0.3% on F.S., Thermocouple: ±0.3% on F.S.
07/
Output
Control output Relay: 10A, 230Vac or SSR: 10Vdc,30mA(Field Selectable)
08/
Set Point
One
09/
Control Mode
Auto Tune PID or ON/OFF
010/
Special Function
Service Time
011/
Housing
53(W) x 53(H) x 78(D)mm
012/
Mounting Type
Panel Mount
013/
Panel
45.5 x 45.5mm
