2W1SP-5WBBAZIX01 (Negative)

Wiring Diagram

2 Working, 1 Stand By (Negative Cold Room)

Powder Coated Steel Housing

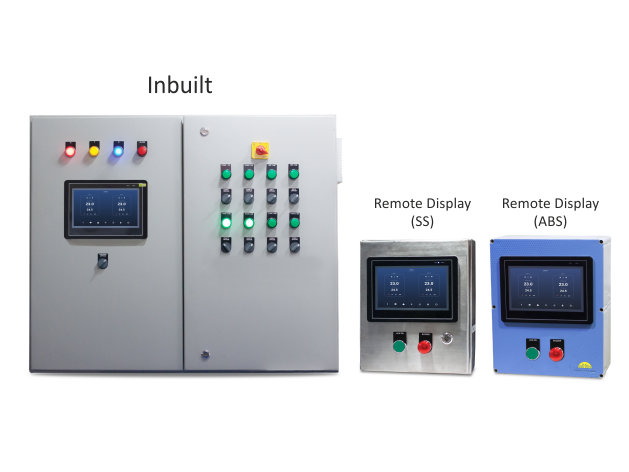

Steel / ABS / Flame Proof Housing for Remote Display
7” Touch Screen HMI to display all the parameters and settings
RS-485 Connectivity
HP, LP, AUX faults for Compressor Protection
Capacity: 7.5 to 10HP
Application: Cold Room

Specification

01/

HMI

7″ Touch Screen HMI

02/

Power Supply

415VAC

03/

Load Type

Three Phase

04/

Probe Input

2 NTC

05/

Analog Input

Current Sensing

06/

Input

Potential 230V: HP, LP, SPPR, AUX / CTH, OPS, R-Phase, Y-Phase, B-Phase, Potential Free: Door Input

07/

Temperature

-50°C to 50°C

08/

Resolution

0.1°C

09/

Output

Compressor Contactor 1: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Compressor Contactor 2: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Compressor Contactor 3: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Defrost Contactor 1: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Defrost Contactor 2: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Defrost Contactor 3: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Evaporator Contactor 1: 3 Pole + 1 Aux, 400 V, 9A (230Vac Coil), Evaporator Contactor 2: 3 Pole + 1 Aux, 400 V, 9A (230Vac Coil), Evaporator Contactor 3: 3 Pole + 1 Aux, 400 V, 9A (230Vac Coil)

010/

Output

Condenser Fan1 3A, Condenser Fan2 3A, Condenser Fan3 3A, LSV1 5A, LSV2 5A, Light 5A, Door Heater Relay 5A

011/

Output

Alarm 5A

012/

Output

RS-485 Serial port with Modbus RTU Protocol

013/

Protection

4 Poles MCB

014/

LVM

4 Wire Voltage Monitoring & Protection

015/

Housing

800(W) x 700(H) x 200(D)mm

016/

Mounting Type

Wall Mount
