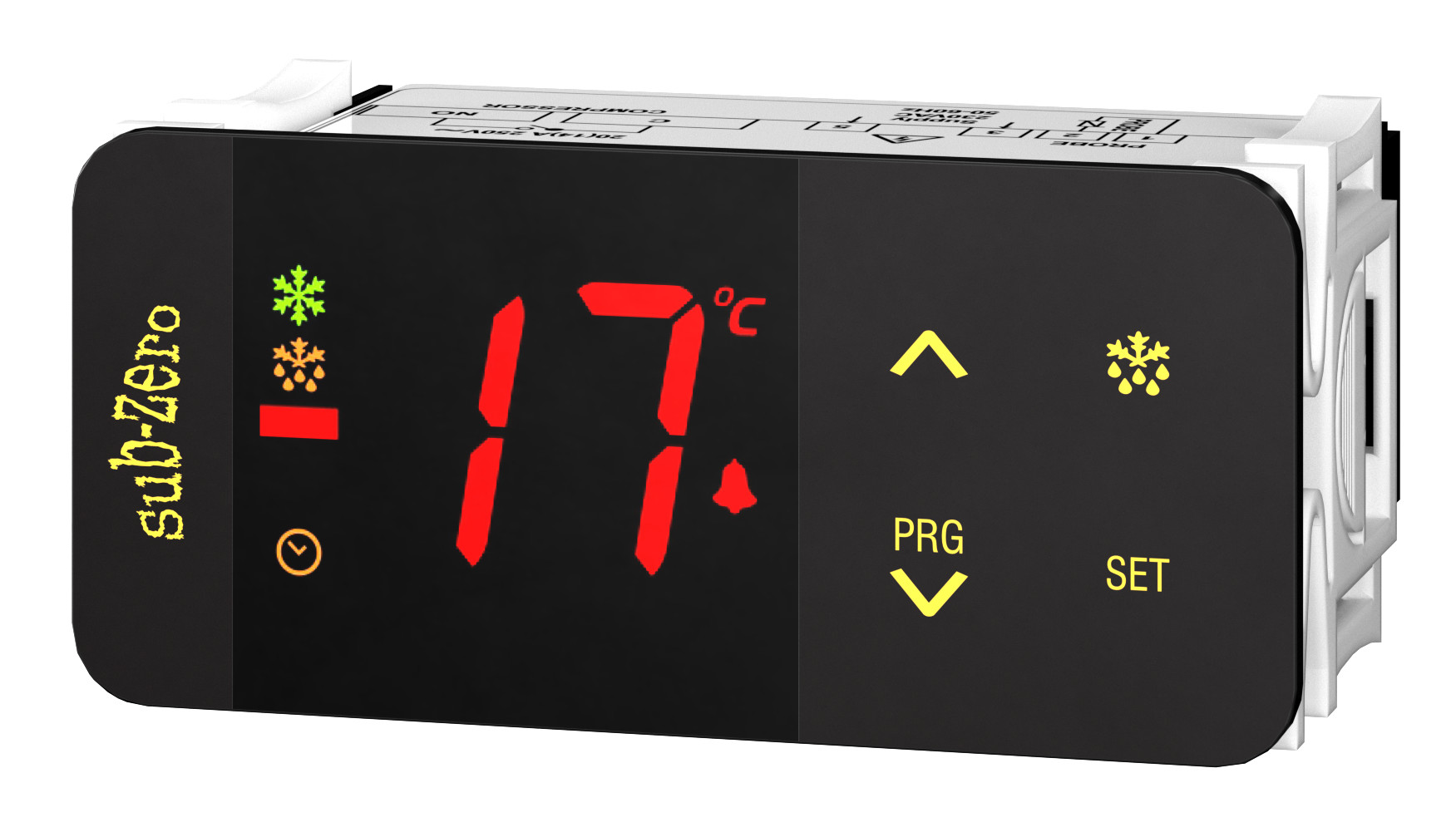

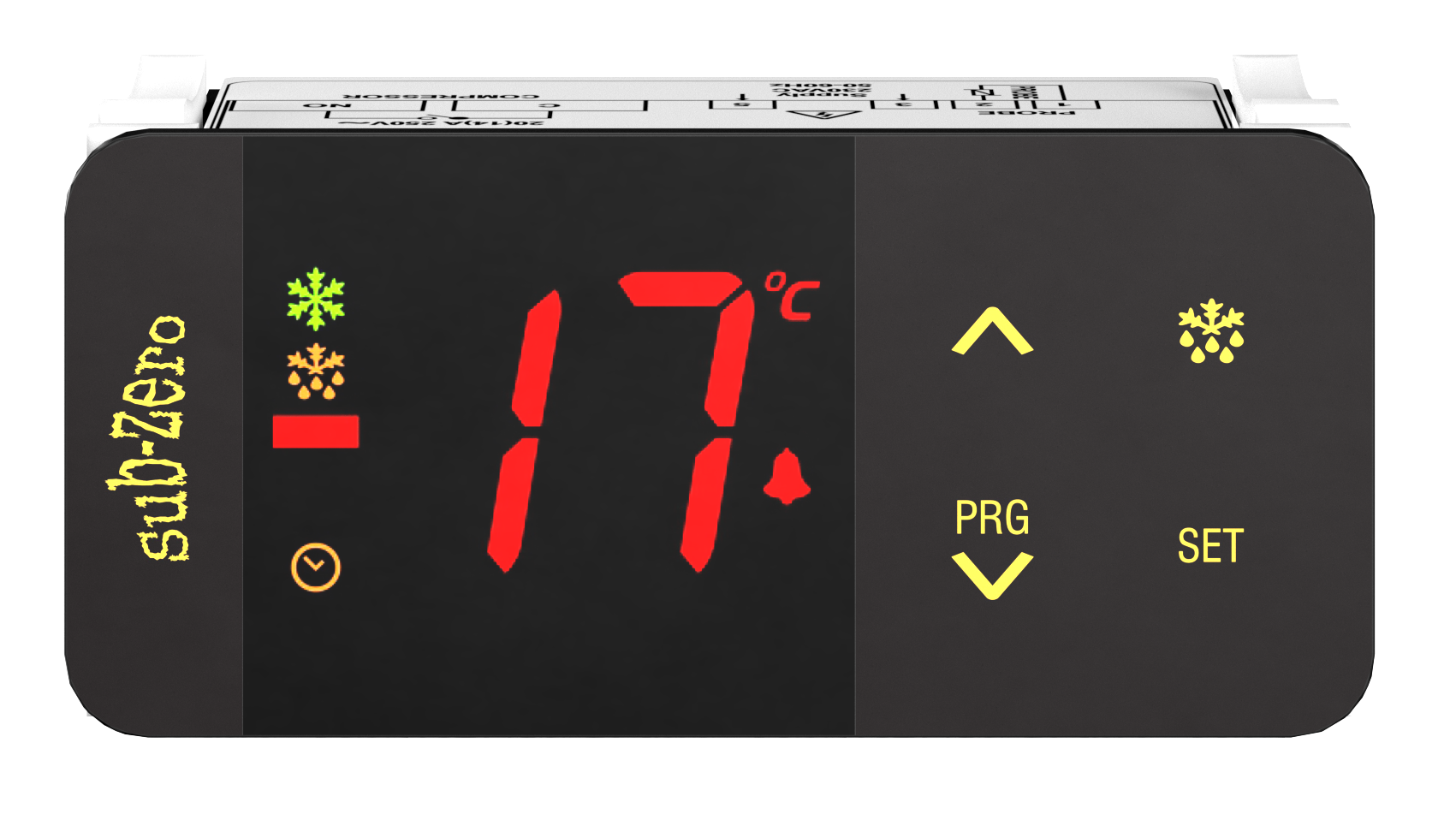

Temperature controller-20(14)A Relay with OFF Cycle Defrost
- Touch Sensitive Keypad
- Time based OFF Cycle Defrost
- Auto/Manual Defrost option available
- Settable ON & OFF time delay for Compressor Protection
- Password Protection for Parameters
- Auto Operation in case of Sensor Failure/Error
- High & Low Temperature Logs
- Applications: Freezers, Chest Freezers, Pizza Counters
Specification
01/
7 Segment
7 Segment LED Display, 2 x 17mm
02/
Power Supply
230Vac
03/
Probe Input
NTC
04/
Temperature
-45°C to 99°C
05/
Resolution
1°C
06/
Output
Compressor 20(14)A
07/
Housing
78(W) x 36(H) x 59(D)mm
08/
Mounting Type
Panel Mount
09/
Panel
71 x 29mm
