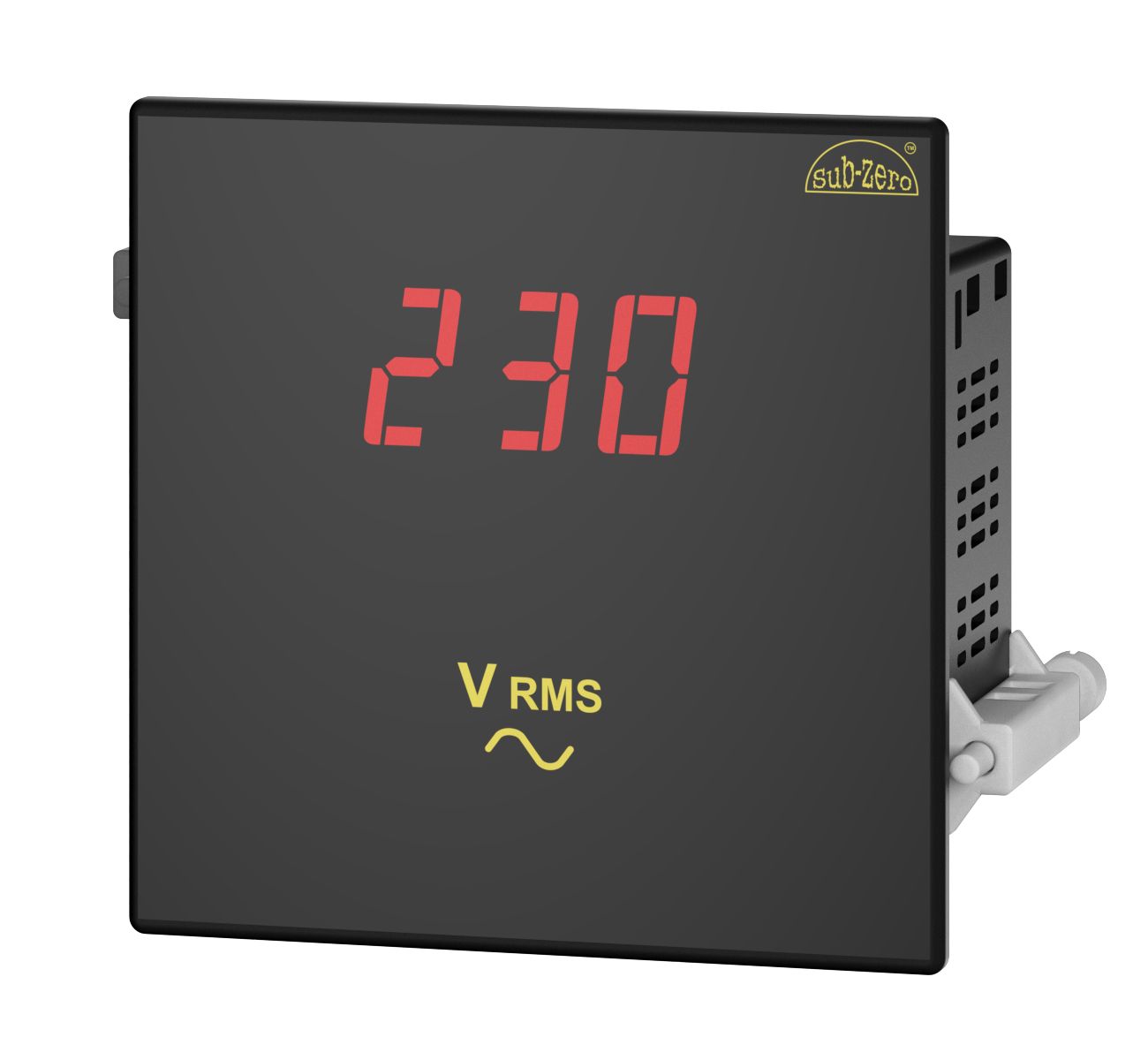

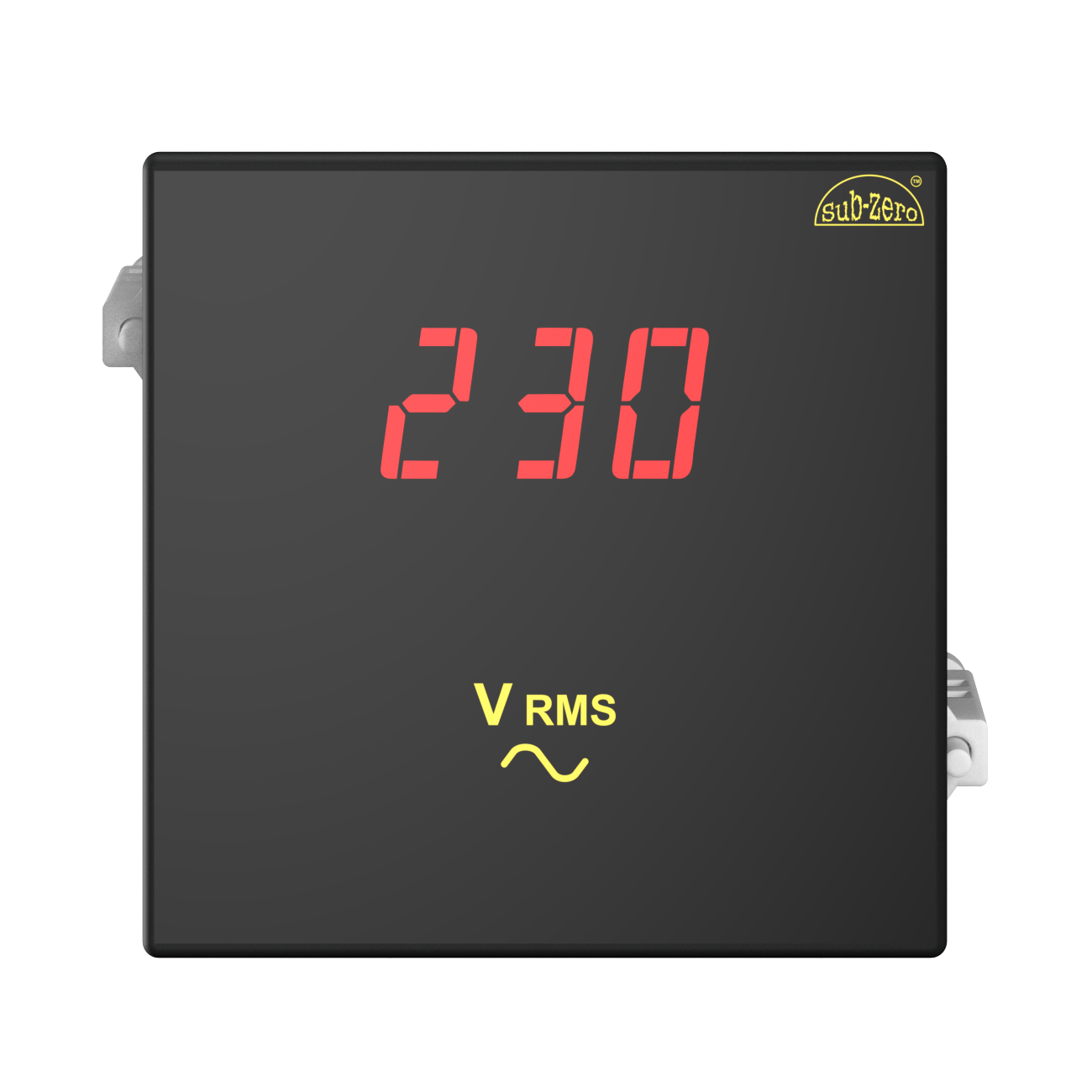

Voltmeter
- 7 Segment Display
- True RMS Measurement

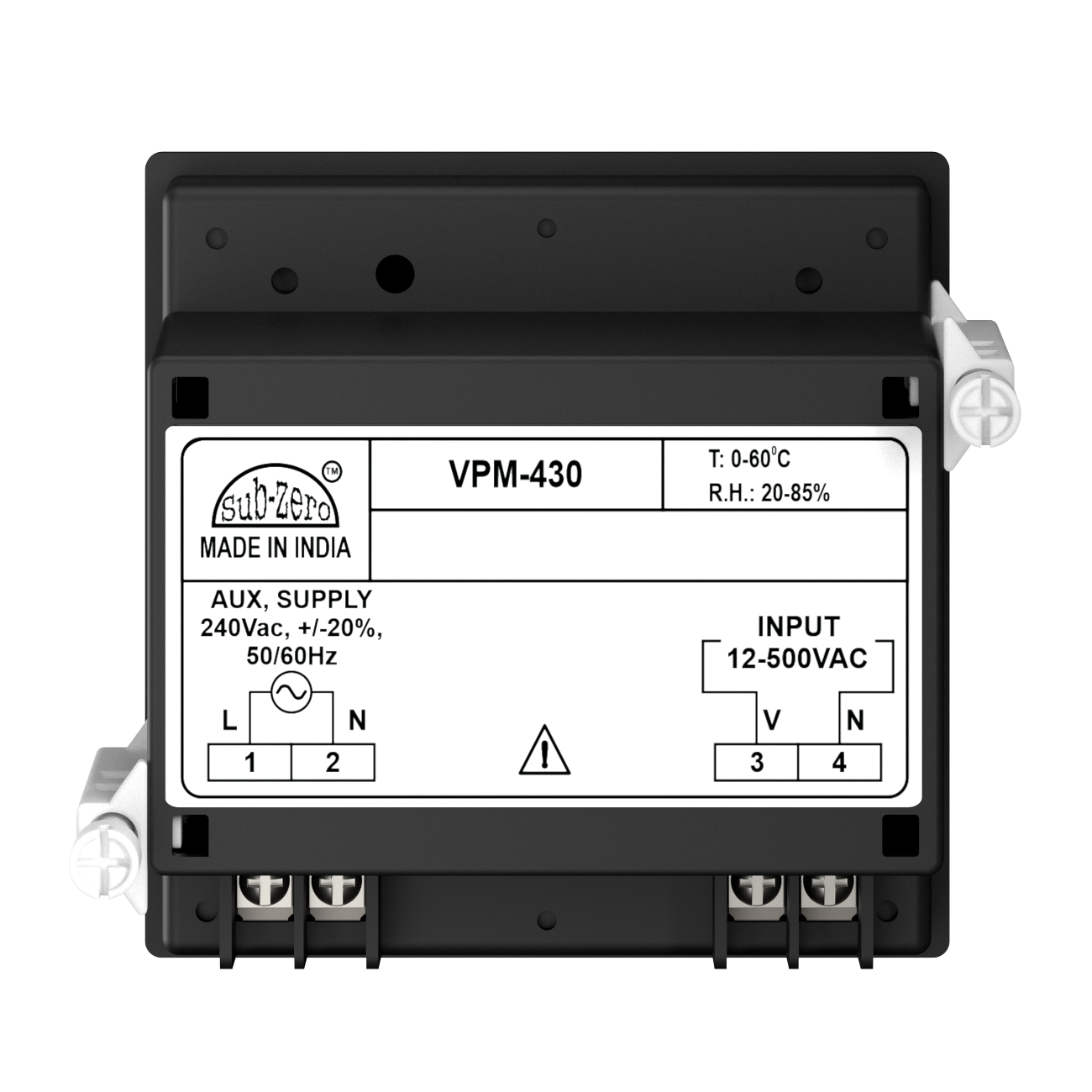

- 1ф-2W Electrical Connection
Application: Industrial LT Panel, Motor Control Centres, Distribution control and Relay Panels, Air Conditioning and Refrigeration Panels.
Specification
01/
7 Segment
7 Segment LED Display, 3 x 14.2mm (0.56″)
02/
Power Supply
230 Vac, ± 10%, 50/60Hz
03/
Analog Input
AC Voltage Input
04/
Resolution
1V
05/
Accuracy
±0.4% of F.S. over rated range
06/
Measurement Type
True RMS Voltage
07/
Range
12 to 500VAC
08/
Housing
96(W) x 96(H) x 46(D)mm
09/
Mounting Type
Panel Mount
010/
Panel
92 x 92mm
