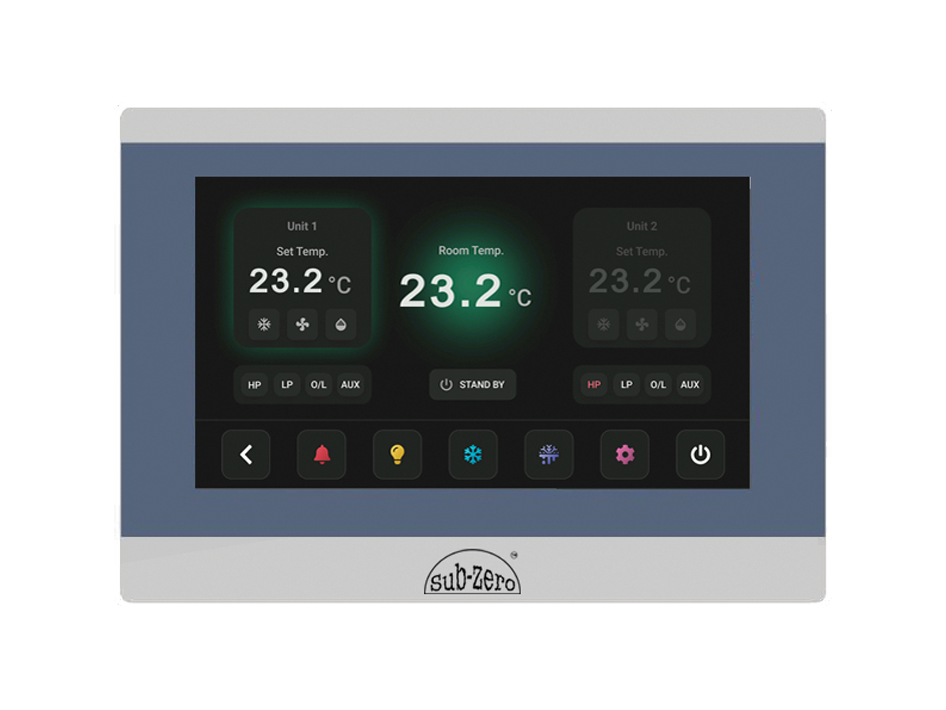

SZ3070C-V1 (7″)
7″ TFT LCD – Resistive
- ABS enclosure, low cost, high reliability
- The main board is treated with a special coating to adapt to harsh environment
- High resolution, high brightness, LED backlight, More energy saving and environmental protection
- The USB host port supports U disk to storage and download data
- Serial Port
- New configuration software, rich library, powerful features.
Specification
TFT LCD
7″ TFT LCD
Resolution
800 x 480mm
Colors
16-bit Colors
Brightness
250 cd/m2
Backlight
LED
Backlight Life
50000 hours
Touch Panel
4 Wires Resistive Touch Screen
CPU
720MHz ARM
Memory
64MB RAM + 128MB Flash
RTC
Built In
USB Port
USB Host 2.0*1, USB Device 2.0*1
Download Project
U-Disk/USB Device
COM Port
COM1: RS232/RS485/RS422, COM3: RS232
Power Consumption
<10W
Power Supply
DC 24V, Input Range: DC 9V to 28V
Protection
Protected from thunder strike and surging
Power
< 5mS
CE&RoHS
Complied with EN61000-6-2:2005, EN61000-6-4:2007, RoHS, CE Surge Immunity:±1KV；EFT:±2KV; ESD:4KV, Air:8KV
Temperature
0°C to 50°C
Temperature
-20°C to 60°C
Humidity
10-90% RH (No Condensation)
Vibration Endurance
10-25Hz (X/Y/Z Direction, 2G/30 Min)
Cooling
Natural air cooling
Protection
Front IP65 (with NEMA panel), back IP20
Shell Material
Engineering Plastic
Housing
204(W) x 145(H) x 33.8(D)mm
Mounting Type
Panel Mount
Panel
192 x 138mm
Weight
About 575g
