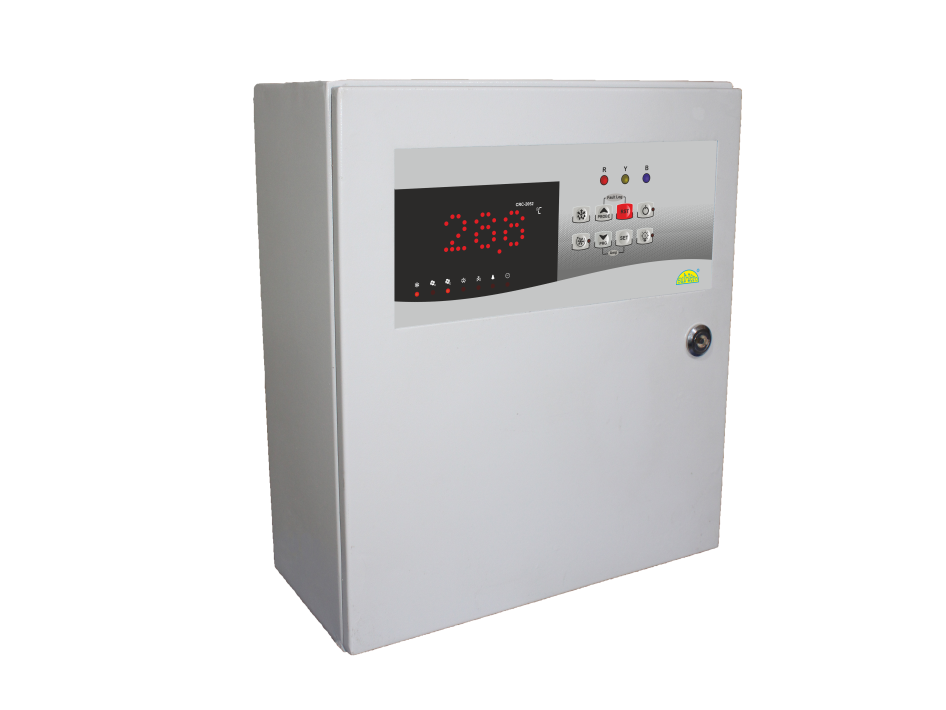

CRC-202000S (Pos. Temp, 7.5 to 10HP)
Electrical Panel for Medium Temperature Cold Room (Metal housing)
- Capacity: 7.5 to 10HP
- 4 Digit, 1” Dot matrix Display
- 0.1 Resolution for Precise Control
- Auto/Manual Defrost option available
- Time based OFF Cycle Defrost
- HP/LP, OPS, AUX faults for Compressor Protection
- Internal Buzzer for Faults
- Door Open fault Input
- R, Y, B Phase Indications & Fault Sensing
- Compressor Current Measurement & Protection
- Last 10 Fault Records
- RS-485(Modbus) Connectivity
- Powder coated steel Housing
- Application: Medium(Positive) Temp. Cold Room
Specification
01/
Dot Matrix
4 Digit, 1” Dot Matrix Display
02/
Power Supply
415VAC
03/
Load Type
Three Phase
04/
Probe Input
NTC
05/
Temperature
-50.0°C to 50.0°C
06/
Resolution
0.1°C
07/

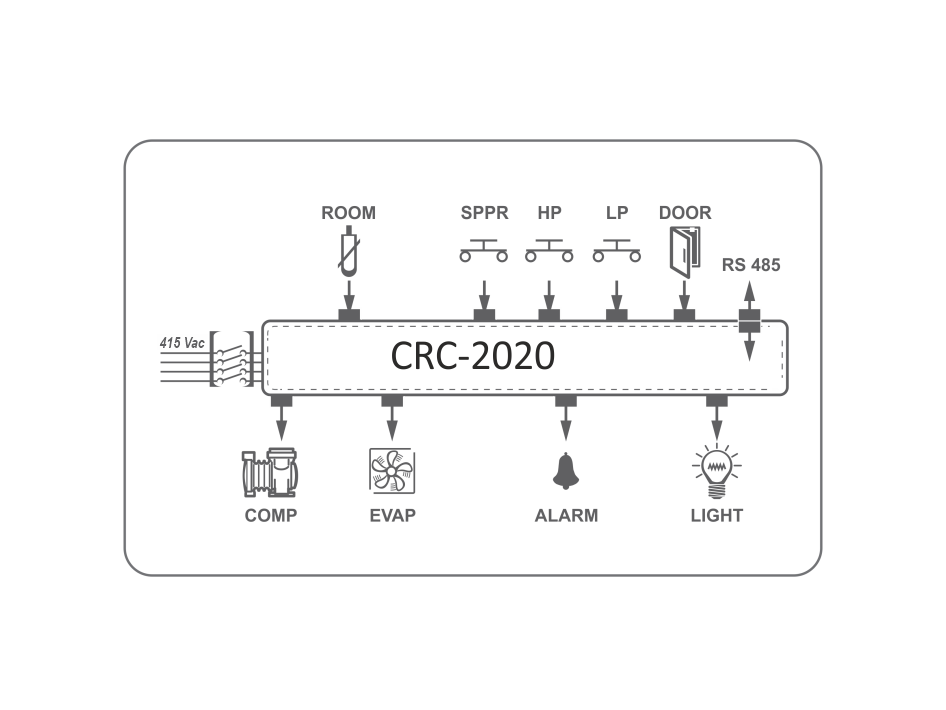

Input
Compressor current sensing 0.0A to 20.0A
08/
Input
Potential 230V: HP, LP, SPPR, AUX / CTH, OPS, R-Phase, Y-Phase, B-Phase, Potential Free: Door Input
09/
Output
Compressor Contactor: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil)
010/
Output
Evaporator 5A, Light 5A, LSV 10A
011/
Output
Alarm 5A & Internal Buzzer
012/
Output
RS-485 Serial port with Modbus RTU Protocol
013/
Protection
4 Poles MCB
014/
LVM
4 Wire Voltage Monitoring & Protection
015/
Housing
450(W) x 400(H) x 200(D)mm
016/
Mounting Type
Wall Mount
