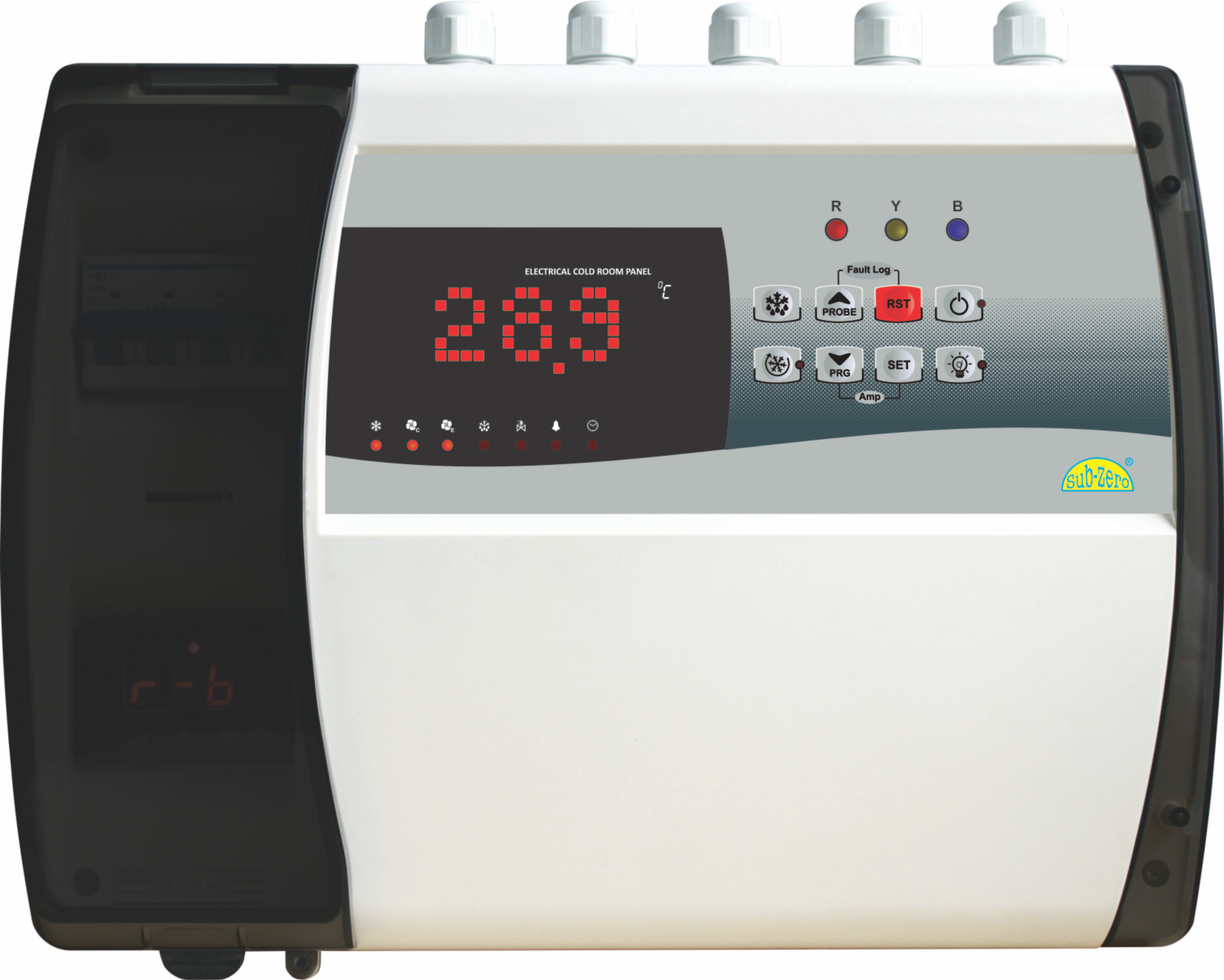

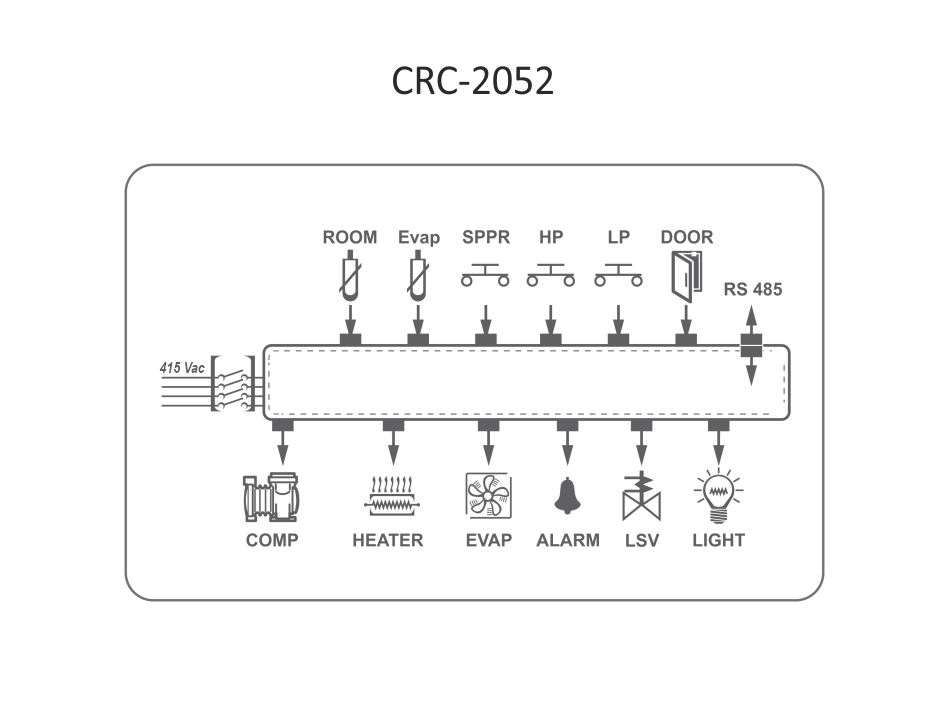

CRC-2052 (Neg. Temp, 7.5 to 10HP)
Electrical Panel for Low Temperature Cold Room (Plastic housing)
- Capacity: 7.5 to 10HP
- 4 Digit, 1” Dot matrix Display
- 0.1 Resolution for Precise Control
- Auto/Manual Defrost option available
- Selectable Time, Temperature based Defrost
- HP/LP, OPS, AUX faults for compressor Protection
- Quick Freeze Mode
- Internal Buzzer for Faults
- Door Open fault Input
- R, Y, B Phase Indications & Fault Sensing
- Compressor Current Measurement & Protection
- External Buzzer for Faults
- Last 10 Fault Record
- RS-485(Modbus) Connectivity
- FR Grade Plastic Housing
- Application: Low(Negative) Temp. Cold Rooms
Specification
01/
Dot Matrix
4 Digit, 1” Dot Matrix Display
02/
Power Supply
415VAC
03/
Load Type
Three Phase
04/
Probe Input
2 NTC
05/
Temperature
-50.0°C to 50.0°C
06/
Resolution
0.1°C
07/
Input
Compressor current sensing 0.0A to 20.0A/50.0A
08/
Input
Potential 230V: HP, LP, SPPR, AUX / CTH, OPS, R-Phase, Y-Phase, B-Phase, Potential Free: Door Input
09/
Output
Compressor Contactor: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Defrost Contactor: 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil), Evaporator Contactor: 3 Pole + 1 Aux, 400 V, 9A (230Vac Coil)
010/
Output
Condenser 10A, LSV 10A, Light 5A
011/
Output
Alarm 5A & Internal Buzzer
012/
Output
RS-485 Serial port with Modbus RTU Protocol
013/
Protection
4 Poles MCB
014/
LVM
4 Wire Voltage Monitoring & Protection
015/
Housing
400(W) x 300(H) x 135(D)mm
016/
Mounting Type
Wall Mount
