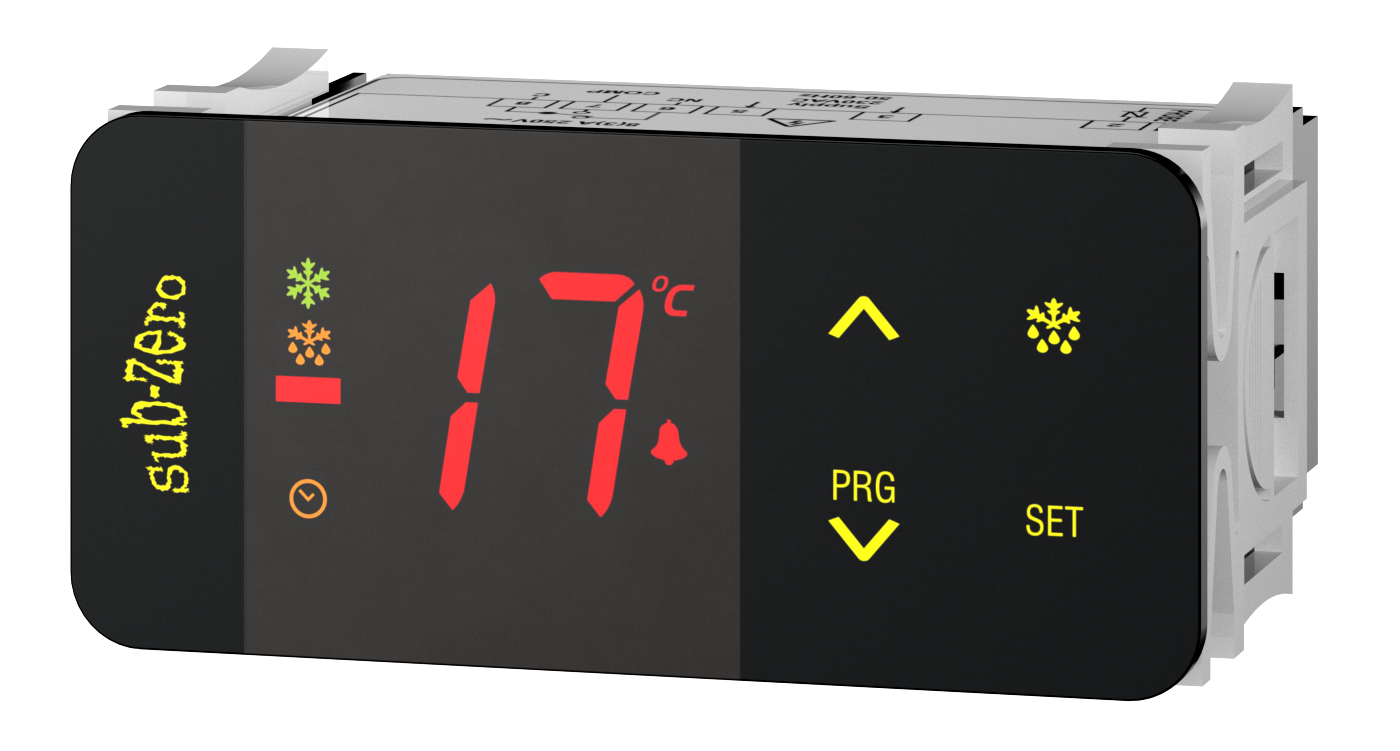

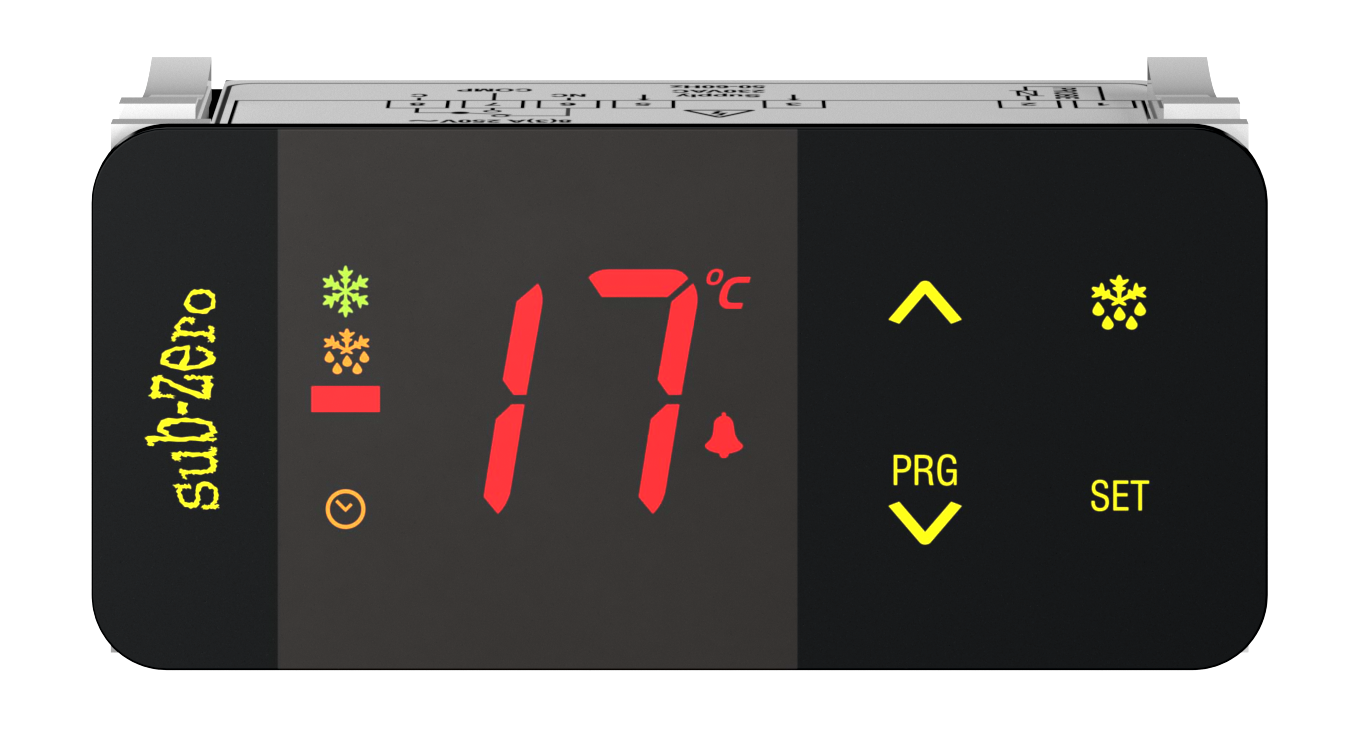

Temperature controller-8(3)A Relay with OFF Cycle Defrost
- Touch Sensitive Keypad
- Time based OFF Cycle Defrost
- Auto/Manual Defrost option available
- Settable ON & OFF time delay for Compressor Protection
- Password Protection for Parameters
- Auto Operation in case of Sensor Failure/Error
- High & Low Temperature Logs
- Applications: Pizza Counters, Refrigerated Tables, Pastry Cabinets
Specification
01/
7 Segment
7 Segment LED Display, 2 x 17mm
02/
Power Supply
230Vac
03/
Probe Input
NTC
04/
Temperature
-45°C to 99°C
05/
Resolution
1°C
06/
Relay
Compressor Relay 8(3)A
07/
Housing
78(W) x 36(H) x 59(D)mm
08/
Mounting Type
Panel Mount
09/
Panel
71 x 29mm
